Description

Price

11061

GASKET,DISC PLATE

11061-0204

$21.82

41080

DISC,RR

41080-0089

$334.16

43034

HOLDER-BRAKE,RR

43034-0055

$120.68

43044

HOLDER-COMP-CALIPER,RR

43044-0033

$110.36

43048

PISTON-CALIPER

43048-0003

$65.98

43049

PACKING,PISTON SEAL

43049-1097

$11.06

43056

BREATHER-BRAKE

43056-0007

$23.79

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0084-DJ

$403.53

43082

PAD-ASSY-BRAKE

43082-0111

$77.93

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1095

$7.27

49006B

BOOT,PISTON SEAL

49006-1212

$23.25

92043

PIN,PAD

92043-1489

$6.57

92139

BUSHING,25X28X25

92139-0278

$5.25

92144

SPRING,STOPPER

92144-1831

$5.46

92145

SPRING

92145-0760

$9.50

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92151

BOLT,SOCKET,8X20

92151-1289

$2.26

92152

COLLAR,20X25X30

92152-0807

$30.24

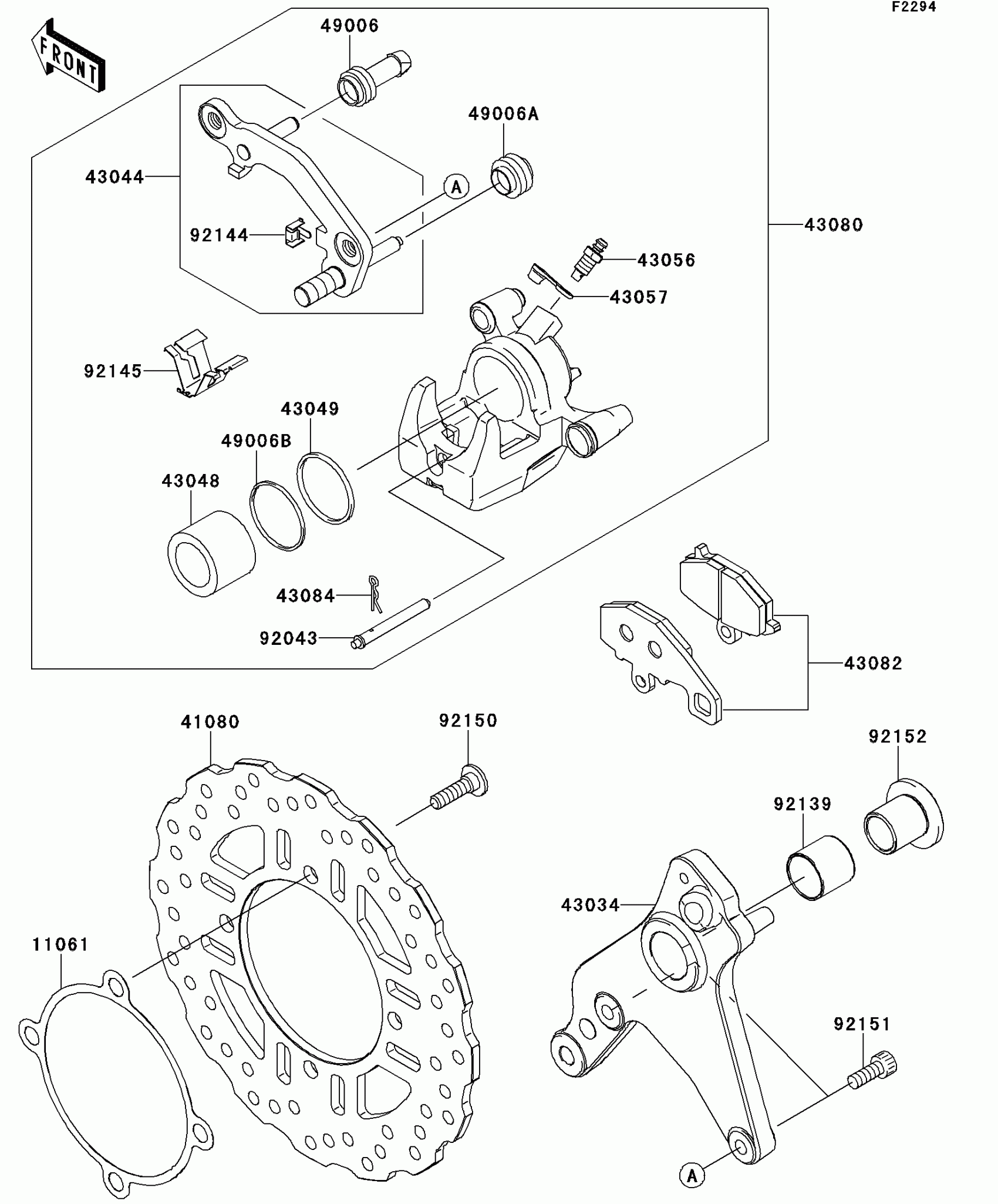

Kawasaki Z1000 Rear Brake Diagram

GASKET,DISC PLATE

DISC,RR

HOLDER-BRAKE,RR

HOLDER-COMP-CALIPER,RR

PISTON-CALIPER

PACKING,PISTON SEAL

BREATHER-BRAKE

CAP-BREATHER

CALIPER-SUB-ASSY,RR,BLACK

PAD-ASSY-BRAKE

CLAMP,PAD

BOOT,CALIPER

BOOT,CALIPER

BOOT,PISTON SEAL

PIN,PAD

BUSHING,25X28X25

SPRING,STOPPER

SPRING

BOLT,SOCKET,8X30

BOLT,SOCKET,8X20

COLLAR,20X25X30
