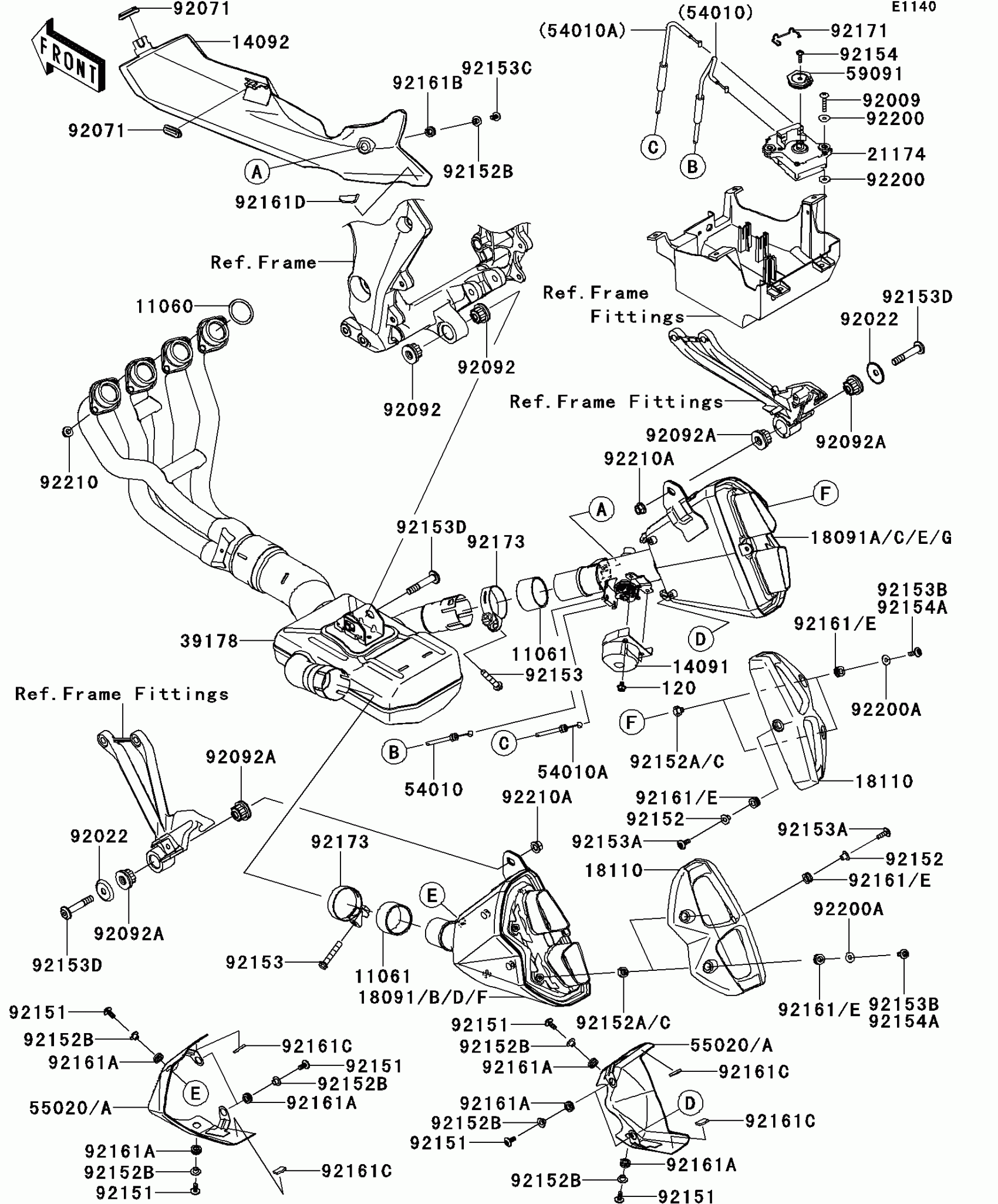

Kawasaki Z1000 Muffler(s) Diagram
#
11060
GASKET,EXHAUST PIPE HOLDER
11060-1103
$7.88
11061
GASKET,MUFFLER CONNECTING
11061-0726
$34.79
14091
COVER,PULLEY
14091-0712
$41.69
14092
COVER,SIDE UNDER
14092-0150
$218.11
18091D
BODY-COMP-MUFFLER,LH
18091-0858
$1,003.06
18091E
BODY-COMP-MUFFLER,RH
18091-0859
$1,195.63
18110
BODY END-MUFFLER
18110-0114
$87.01
21174
MOTOR-ELECTRIC
21174-0005
$337.67
39178
MANIFOLD-COMP-EXHAUST
39178-0144
$1,805.38
54010
CABLE,OPEN,WHITE
54010-0119
$82.43
54010A
CABLE,CLOSE,BLACK
54010-0120
$82.43
55020A
GUARD,FRONT COVER
55020-0568
$191.82
59091
PULLEY
59091-0007
$22.29
92009
SCREW,TAPPING,6X30
92009-1481
$4.69
92022
WASHER
92022-289
$16.33
92071
GROMMET
92071-1187
$4.96
92092
BUSHING-RUBBER
92092-1081
$24.82
92092A
BUSHING-RUBBER,MUFFLER
92092-1087
$19.90
92151
BOLT,SOCKET,6X14
92151-1654
$1.83
92152
COLLAR,6.3X8.3X9.2
92152-0237
$5.65
92152A
COLLAR,6.3X8.3X9.2
92152-0237
$5.65
92152B
COLLAR,6.3X8.3X16
92152-0286
$5.65
92153
BOLT,8X45
92153-0702
$3.44
92153A
BOLT,6X18
92153-0816
$2.15
92153B
BOLT,6X18
92153-0816
$2.15
92153C
BOLT,SOCKET,6X16
92153-0817
$2.15
92153D
BOLT,SOCKET,10X58
92153-1930
$8.68
92154
BOLT,TORX,5X18
92154-0217
$3.71
92161A
DAMPER
92161-0306
$5.65
92161B
DAMPER
92161-0308
$3.90
92161C
DAMPER
92161-0856
$11.12
92161D
DAMPER,SIDE COVER
92161-0870
$5.34
92161E
DAMPER
92161-0938
$5.29
92171
CLAMP
92171-0292
$10.11
92173
CLAMP
92173-0037
$27.35
92200
WASHER
92200-0078
$2.12
92200A
WASHER,6.5X16X1.0
92200-3712
$3.73
92210
NUT,8MM
92210-0076
$5.48
92210A
NUT
92210-0568
$2.06
120
BOLT-SOCKET,6X10
120CB0610
$2.49
