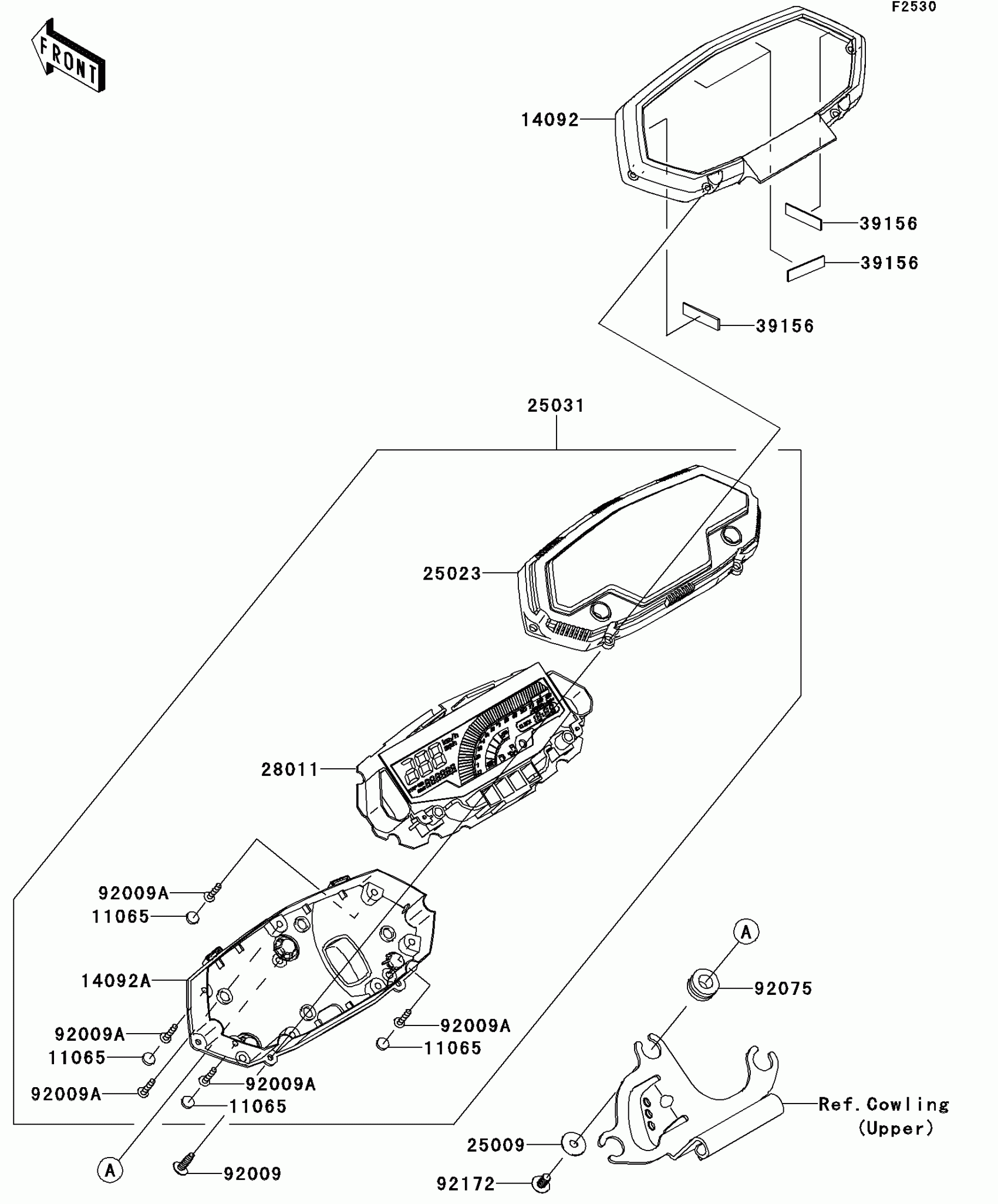

Kawasaki Z1000 Meter(s) Diagram

Description

Price

11065

CAP

11065-0355

$5.48

14092

COVER,METER

14092-0019

$72.50

14092A

COVER,METER,LWR

14092-0094

$108.49

25009

WASHER,5.2X16X1.2

25009-004

$3.65

25023

COVER-METER CASE,UPP

25023-0062

$177.11

25031

METER-ASSY,LCD,MPH

25031-0299

$1,038.22

28011

METER,LCD

28011-0170

$651.74

39156

PAD

39156-0567

$1.32

92009

SCREW,TAPPING,4X16

92009-1163

$4.10

92009A

SCREW,TAPPING,3X16

92009-1164

$3.65

92075

DAMPER

92075-1409

$6.45

92172

SCREW,TAPPING,5X10

92172-0335

$2.15
