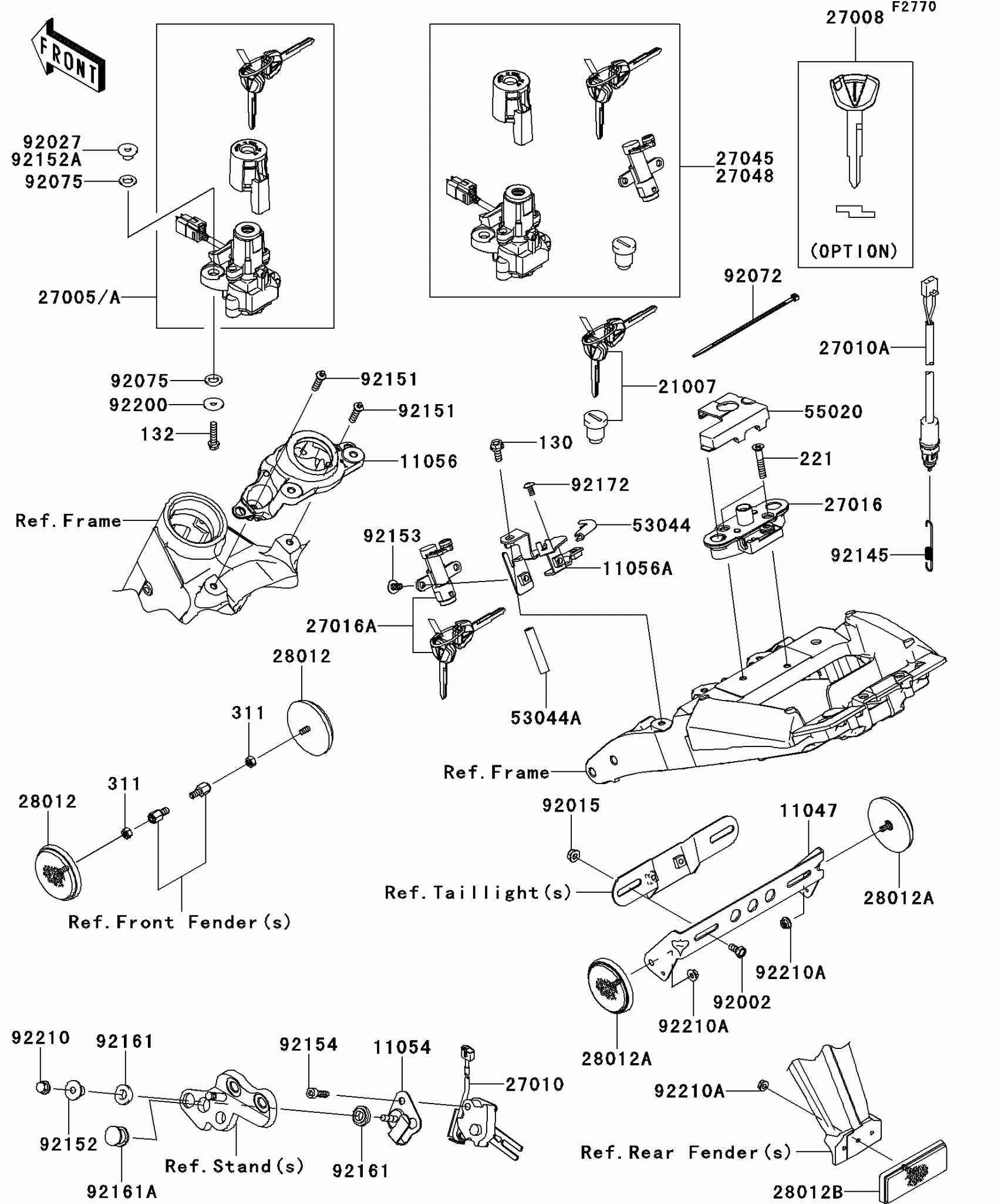

Kawasaki Z1000 Ignition Switch/Locks/Reflectors Diagram

#

Description
Price

11047

BRACKET,REFLECTOR

11047-1470

$29.08

11054

BRACKET,SIDE STAND SWITCH

11054-1904

$11.28

11056

BRACKET,IGNITION SWITCH

11056-0161

$69.87

11056A

BRACKET,SEAT,LOCK

11056-0181

$16.38

21007

ROTOR,LOCK,TANK CAP

21007-5068

$88.32

27005A

SWITCH-ASSY-IGNITION

27005-0580

$183.31

27008

KEY-LOCK,BLANK

27008-0069

$24.19

27010

SWITCH,SIDE STAND

27010-0112

$71.04

27010A

SWITCH,REAR BRAKE

27010-1486

$35.01

27016

LOCK-ASSY,SEAT STRIKER

27016-0035

$64.16

27016A

LOCK-ASSY,SEAT

27016-5365

$94.67

27048

SWITCH-ASSY

27048-5017

$421.23

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$24.14

28012A

REFLECTOR-REFLEX

28012-0002

$24.14

28012B

REFLECTOR-REFLEX

28012-1077

$23.25

53044

TRIM,L=60

53044-1249

$6.57

53044A

TRIM,L=48

53044-1324

$3.69

55020

GUARD,SEAT STRIKER

55020-0483

$8.37

92002

BOLT,6X12

92002-1132

$1.49

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92072

BAND,L=148

92072-3768

$3.92

92075

DAMPER

92075-1564

$5.48

92145

SPRING,BRAKE LAMP SWITCH

92145-0761

$3.96

92151

BOLT,TORX,6X22

92151-1946

$3.94

92152

COLLAR

92152-1074

$6.22

92152A

COLLAR,6.8X10X11.2

92152-1685

$3.53

92153

BOLT,SOCKET,6X12

92153-1617

$1.34

92154

BOLT,SOCKET,6X22

92154-0031

$2.12

92161

DAMPER

92161-0117

$2.90

92161A

DAMPER

92161-0118

$2.90

92172

SCREW,TAPPING,5X10

92172-1061

Unavailable

92200

WASHER,6X20X1.6

92200-0212

$3.35

92210

NUT,CAP,6MM

92210-0003

$0.64

92210A

NUT,FLANGED,5MM

92210-0007

$2.70

130

BOLT-FLANGED,6X12

130BA0612

$1.72

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

221

SCREW-CSK-CROS,6X30

221AB0630

$1.81

311

NUT-HEX,5MM

311AB0500

$0.43
