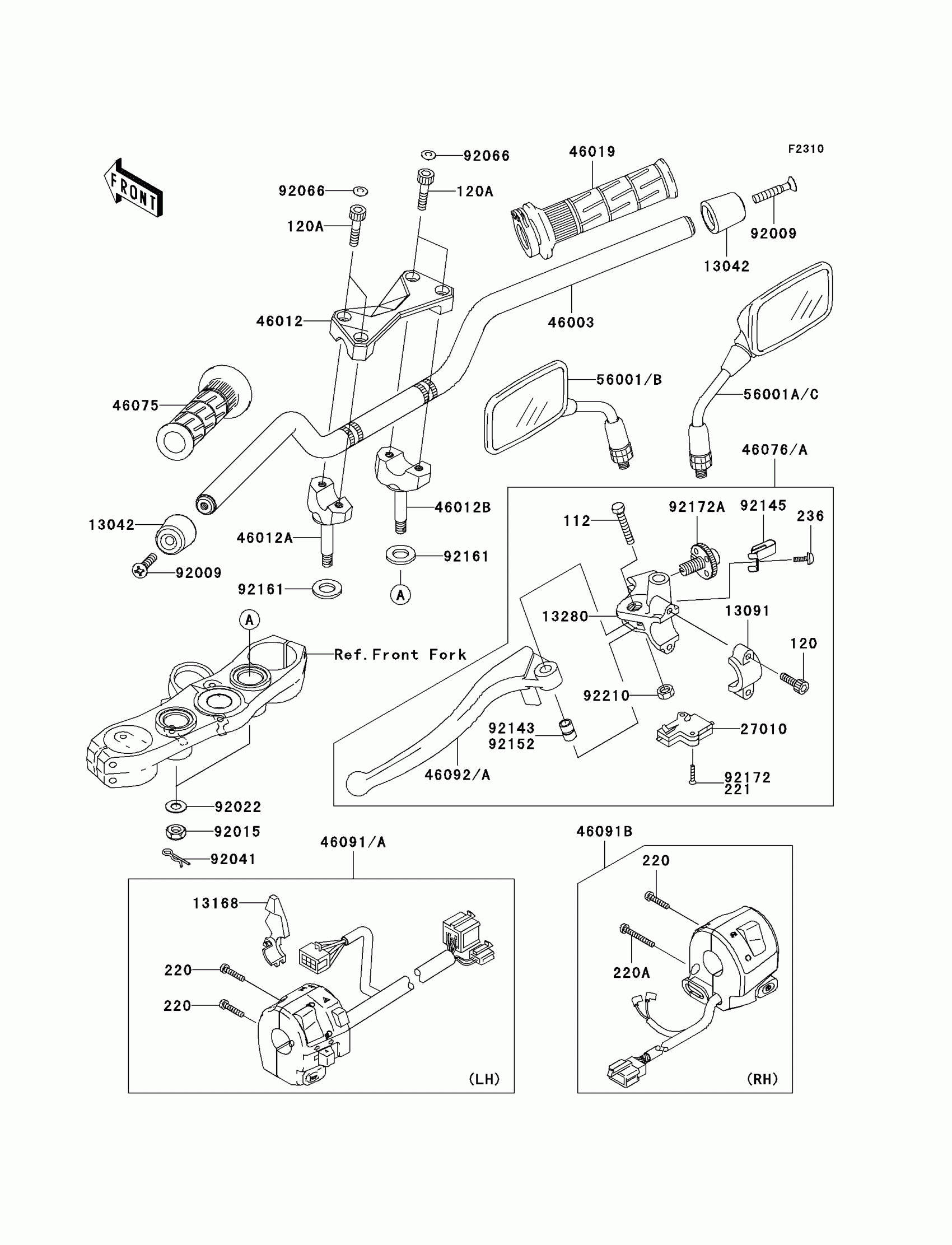

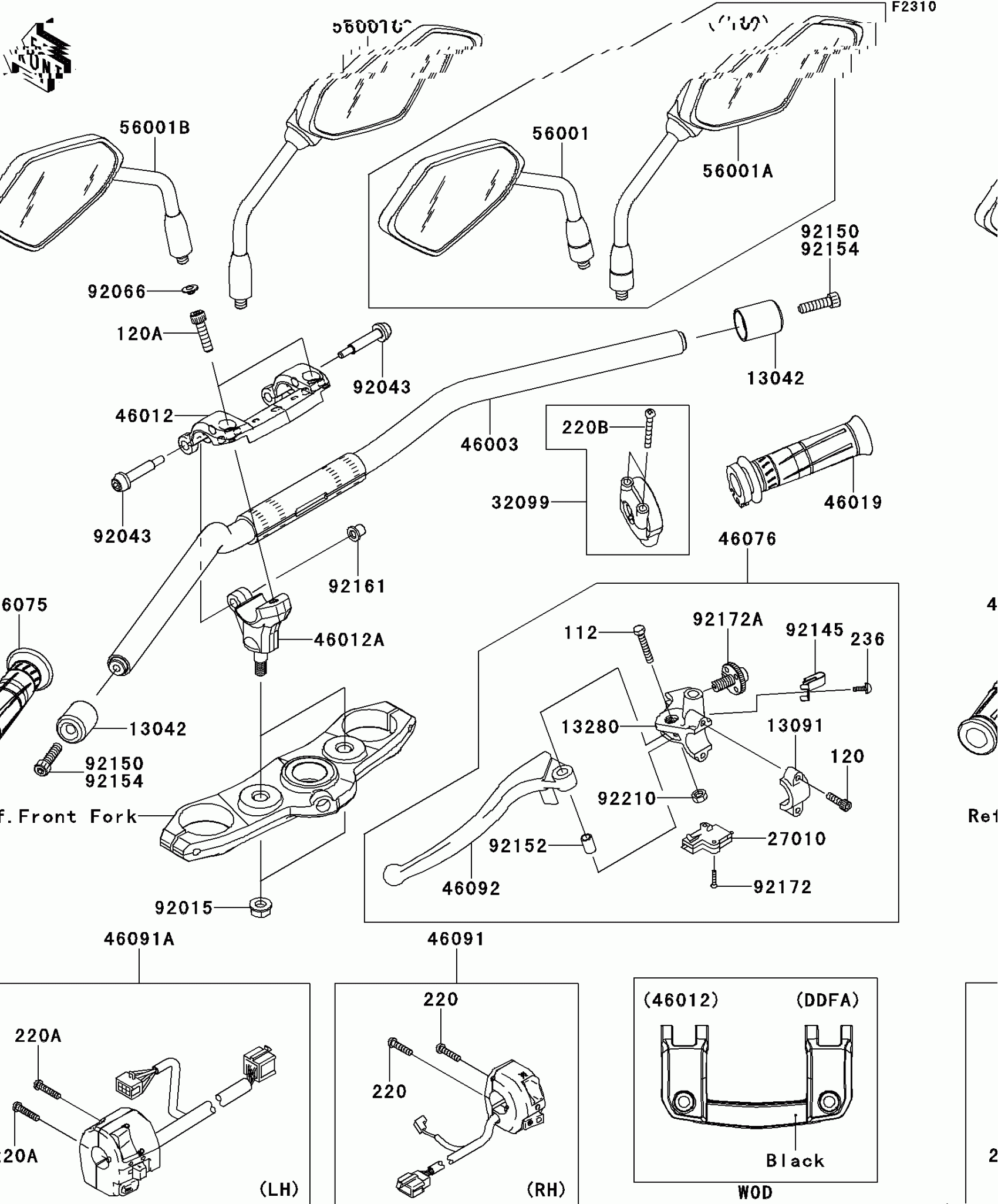

Kawasaki Z1000 Handlebar Diagram

#

Description
Price

112

BOLT-UPSET,6X30

112J0630

Unavailable

120

BOLT-SOCKET,6X20

120S0620

Unavailable

120A

BOLT-SOCKET,8X30

120S0830

Unavailable

220

SCREW-PAN-CROS,5X25

220C0525

$2.66

220A

SCREW-PAN-CROS,5X40

220C0540

Unavailable

236

SCREW-PAN-WSP-CROS,4X10

236C0410

$1.34

13042

WEIGHT,HANDLE

13042-1005

$29.48

13091

HOLDER,CLUTCH LEVER

13091-1624

$36.55

13168

LEVER,CHOKE

13168-1516

$7.46

13280

HOLDER,CLUTCH LEVER

13280-0017

$52.43

27010

SWITCH,CLUTCH,BLACK

27010-1094

$25.31

46003

HANDLE

46003-1594

$178.99

46012

HOLDER-HANDLE,UPP

46012-1338

$57.01

46012A

HOLDER-HANDLE,LWR,LH

46012-1339

$66.90

46012B

HOLDER-HANDLE,LWR,RH

46012-1340

$66.90

46019

GRIP-ASSY,THROTTLE

46019-0001

$37.15

46075

GRIP,HANDLE,LH

46075-1144

$18.64

46076A

LEVER-ASSY-GRIP,CLUTCH

46076-0005

$111.28

46091A

HOUSING-ASSY-CONTROL,LH

46091-0031

$223.66

46091B

HOUSING-ASSY-CONTROL,RH

46091-1891

$164.42

46092A

LEVER-GRIP,CLUTCH

46092-1211

$17.53

56001

MIRROR-ASSY,LH

56001-0030

$72.97

56001A

MIRROR-ASSY,RH

56001-0031

$72.97

92009

SCREW,8X45

92009-1257

$3.57

92015

NUT,LOCK,10MM

92015-1962

$4.59

92022

WASHER,10.2X28X2

92022-1088

$3.57

92041

COTTER,8MM

92041-1060

$3.15

92066

PLUG

92066-1216

$3.54

92145

SPRING

92145-1286

$5.19

92152

COLLAR

92152-0103

$14.34

92161

DAMPER

92161-0037

$1.36

92172

SCREW,3X16

92172-0183

$1.57

92172A

SCREW,ADJUST NUT

92172-1060

$39.89

92210

NUT,LOCK,6MM

92210-0006

$1.76
