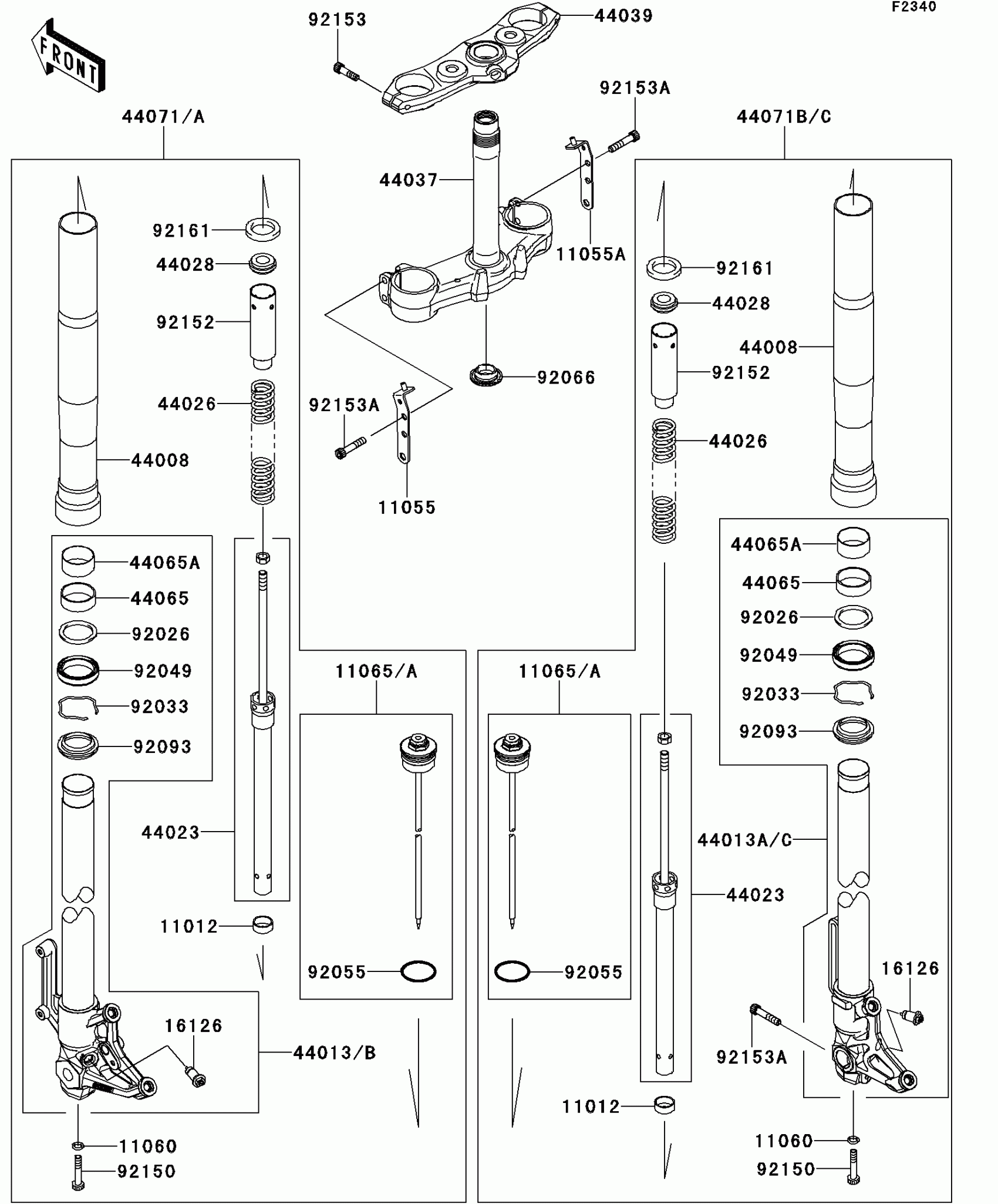

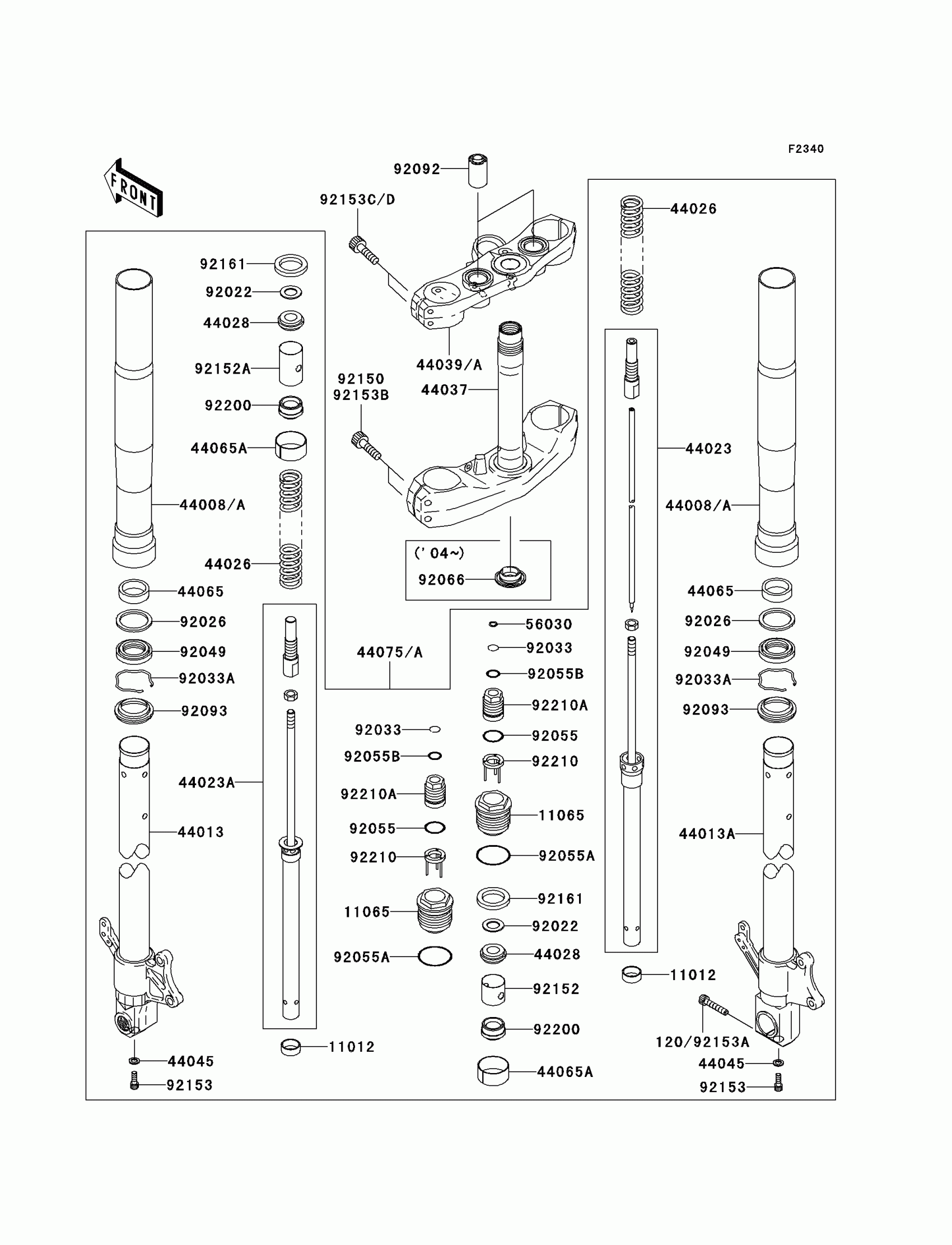

Kawasaki Z1000 Front Fork Diagram

#

Description
Price

11012

CAP

11012-1761

$35.56

11065

CAP

11065-0011

$55.92

44008A

PIPE-FORK OUTER

44008-1059

$525.96

44013

PIPE-FORK INNER,LH,M.M.GOLD

44013-1513-D3

$450.83

44013A

PIPE-FORK INNER,RH,M.M.GOLD

44013-1514-D3

$450.83

44023

CYLINDER-SET-FORK,RH

44023-0002

$504.83

44023A

CYLINDER-SET-FORK,LH

44023-0003

$504.83

44026

SPRING-FRONT FORK

44026-0004

$103.59

44028

GUIDE-FORK SPRING

44028-1083

$9.07

44037

HOLDER-FORK UNDER

44037-1444

$652.18

44039

HOLDER-FORK UPPER

44039-0020

$358.39

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK,GUIDE

44065-0001

$15.89

44065A

BUSHING-FRONT FORK,SLIDE

44065-0002

$15.89

44075

DAMPER-SET-FORK,M.M.GOLD

44075-0018-D3

$1,271.61

56030

LABEL

56030-0006

$5.95

92022

WASHER,SPRING SEAT

92022-1713

$11.41

92026

SPACER,FORK OUTER

92026-1276

Unavailable

92033

RING-SNAP

92033-0002

$4.85

92033A

RING-SNAP

92033-1222

$4.88

92049

SEAL-OIL,FORK

92049-1363

$21.55

92055

RING-O

92055-0003

$5.34

92055A

RING-O,FORK CAP

92055-1497

$4.47

92055B

RING-O

92055-1498

Unavailable

92066

PLUG

92066-0032

$11.19

92092

BUSHING-RUBBER

92092-1090

$7.44

92093

SEAL,FORK

92093-1268

$20.76

92152

COLLAR,SPRING,L=30

92152-0011

$10.17

92152A

COLLAR,SPRING,L=47.5

92152-0012

$15.56

92153

BOLT,SOCKET,8X22

92153-0028

$7.81

92153A

BOLT,SOCKET,8X40

92153-0536

$1.88

92153B

BOLT,SOCKET

92153-0537

$9.80

92153C

BOLT,SOCKET

92153-0538

$10.90

92161

DAMPER

92161-0006

$8.73

92200

WASHER

92200-1464

$6.38

92210

SPRING ADJUST PLATE

92210-0019

$19.42

92210A

NUT,SPRING ADJUSTER

92210-0020

$11.92
