Description

Price

130

BOLT-FLANGED,6X14

130L0614

$2.33

13236

LEVER-COMP,FRONT BRAKE

13236-1337

$64.34

27010

SWITCH,BRAKE

27010-0025

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0011

$454.17

43020

PISTON-COMP-BRAKE,FR

43020-1054

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1076

$42.62

43027

PLATE-DIAPHRAGM

43027-1055

$7.81

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$22.90

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$35.87

43064

GROMMET,HOSE CLAMP

43064-007

$5.52

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43095

HOSE-BRAKE,FR

43095-1291

Unavailable

43095A

HOSE-BRAKE,FR

43095-1338

$79.14

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92037

CLAMP,HOSE

92037-1827

$7.45

92153

BOLT,SOCKET,6X20

92153-0417

$7.65

92153A

BOLT,OIL,L=23

92153-0627

$5.48

92153B

BOLT,OIL,L=37

92153-0628

$11.83

92171

CLAMP,BRAKE HOSE

92171-1574

$7.21

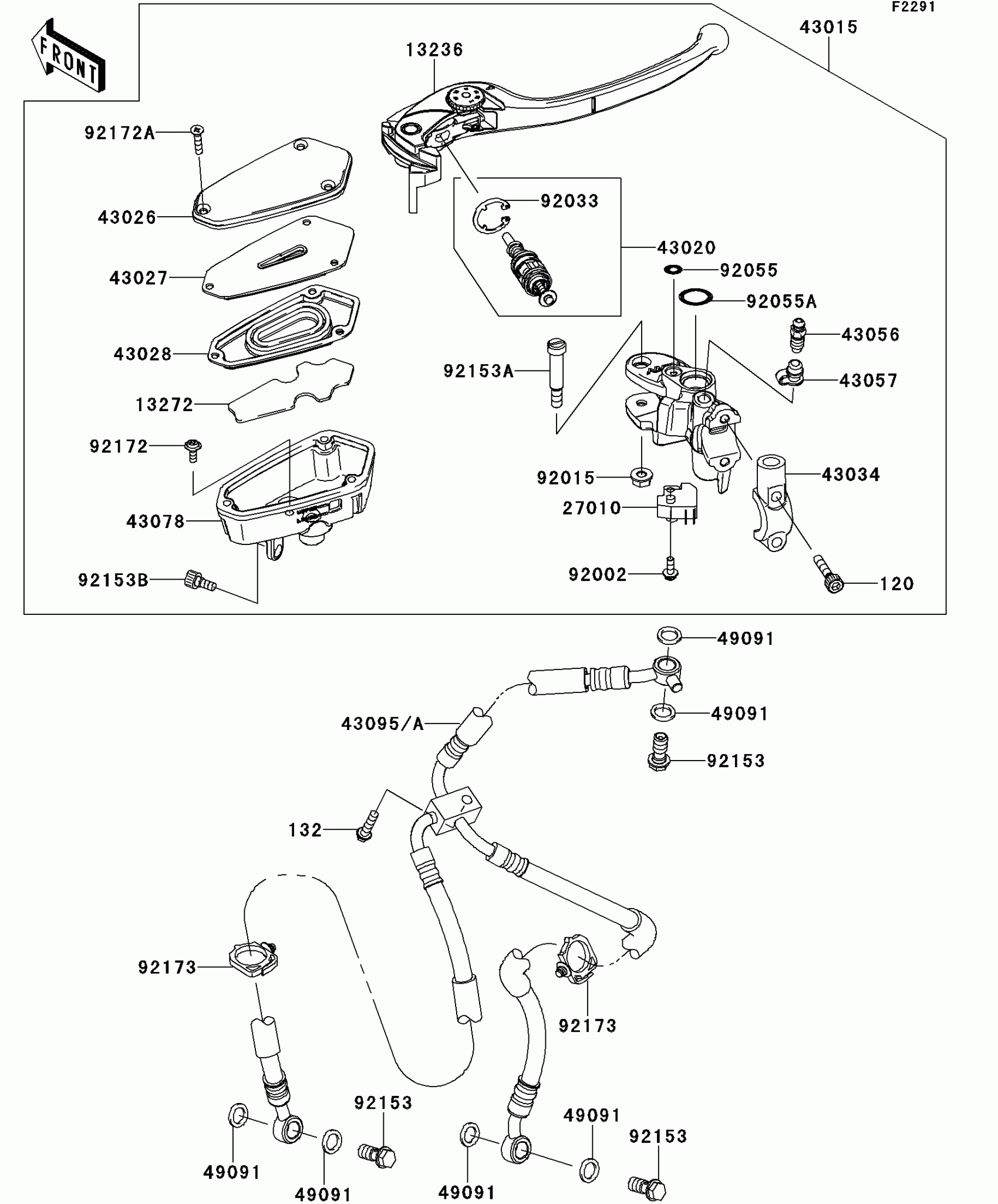

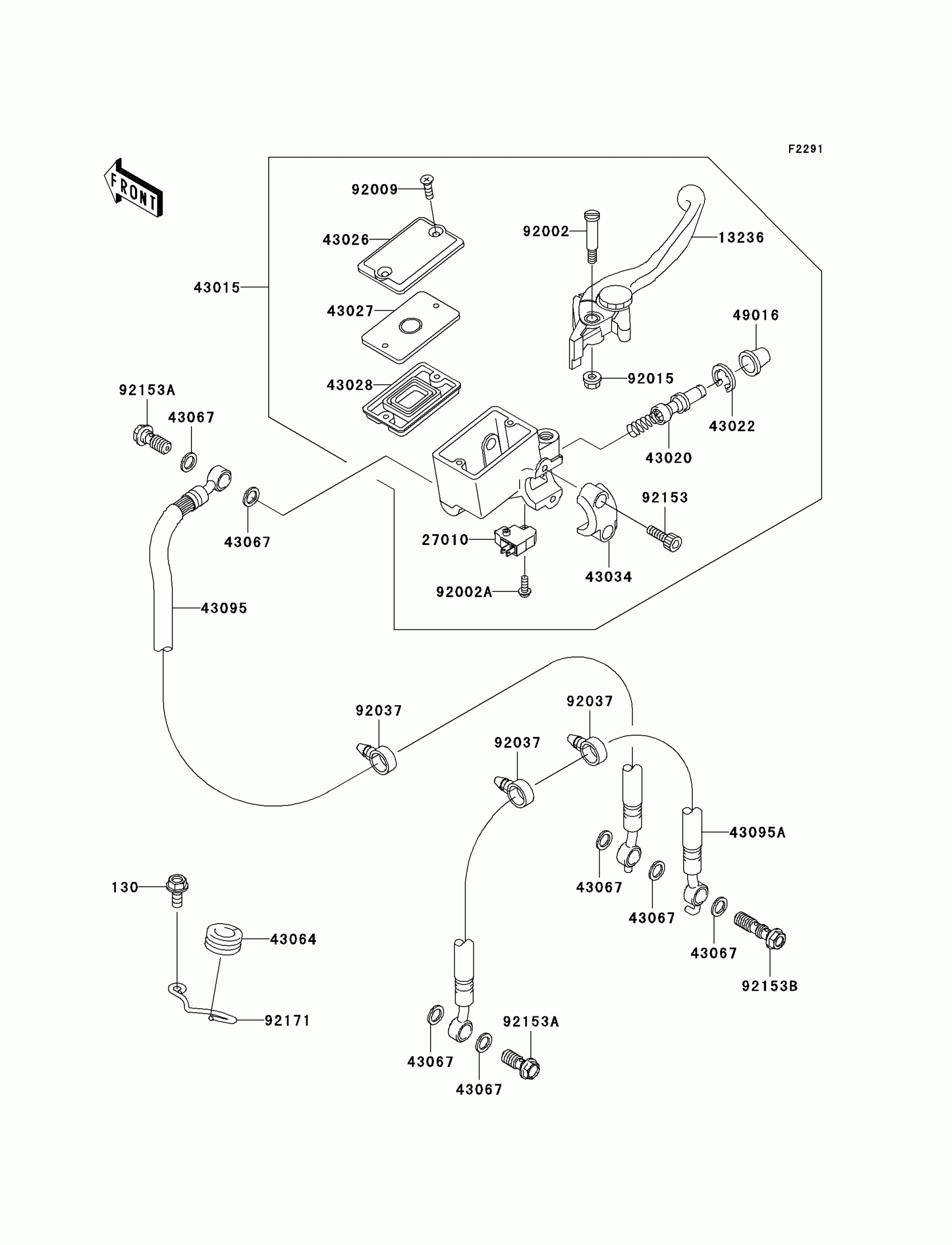

Kawasaki Z1000 Front Master Cylinder Diagram

BOLT-FLANGED,6X14

LEVER-COMP,FRONT BRAKE

SWITCH,BRAKE

CYLINDER-ASSY-MASTER,FR

PISTON-COMP-BRAKE,FR

STOPPER-BRAKE,PISTON

CAP-BRAKE

PLATE-DIAPHRAGM

DIAPHRAGM,MASTER CYLINDER

HOLDER-BRAKE,MASTER CYLINDER

GROMMET,HOSE CLAMP

WASHER,10.5X15X1.5

HOSE-BRAKE,FR

HOSE-BRAKE,FR

COVER-SEAL,MASTER CYLINDER

BOLT,LEVER SET,BLACK

BOLT,SCREW,4X12

SCREW,4MM

NUT,FLANGED,6MM,BLACK

CLAMP,HOSE

BOLT,SOCKET,6X20

BOLT,OIL,L=23

BOLT,OIL,L=37

CLAMP,BRAKE HOSE
