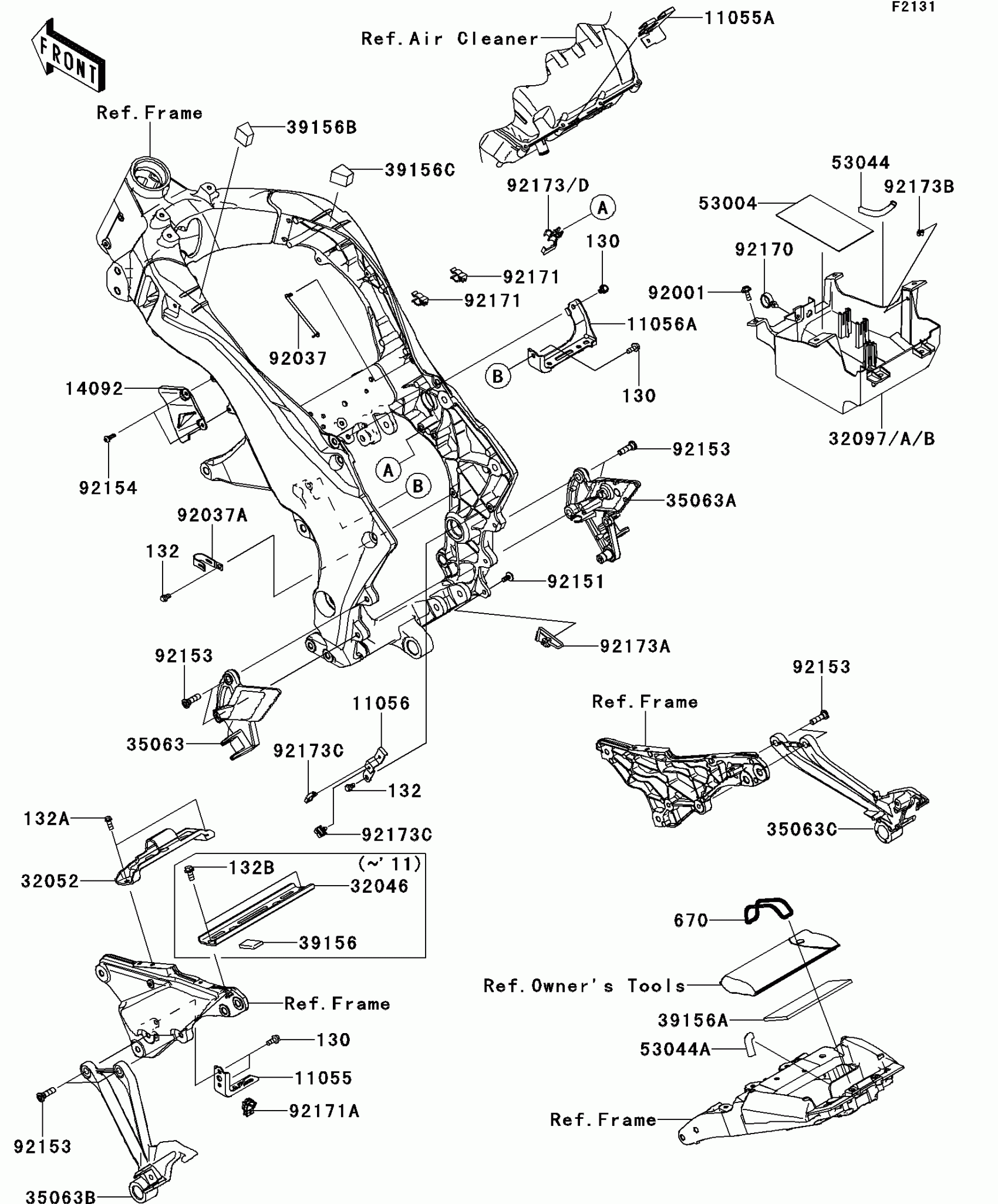

Kawasaki Z1000 Frame Fittings Diagram
#
Description
Price
11055
BRACKET,REGULATOR
11055-1951
$8.37
11055A
BRACKET
11055-1989
$10.04
11056
BRACKET
11056-0106
$8.45
11056A
BRACKET,REGULATOR
11056-0169
$25.13
14092
COVER,THROBO
14092-0016
$10.37
32052
BRACKET-TANK
32052-0137
$33.26
32097B
CASE-BATTERY
32097-0555
$118.11
35063
STAY,FR,LH,F.S.BLACK
35063-0657-18R
$111.09
35063A
STAY,FR,RH,F.S.BLACK
35063-0658-18R
Unavailable
35063B
STAY,RR,LH,F.S.BLACK
35063-0659-18R
$134.52
35063C
STAY,RR,RH,F.S.BLACK
35063-0660-18R
$134.52
39156A
PAD,150X60X5
39156-0639
$4.14
39156B
PAD,LH
39156-0660
$9.64
39156C
PAD,RH
39156-0661
$9.64
53004
MAT,BATTERY
53004-0560
$9.09
53044
TRIM
53044-0018
$4.65
53044A
TRIM,L=40
53044-1174
$4.31
92001
BOLT,6X18
92001-1342
Unavailable
92037
CLAMP,SPEED,L=80.5
92037-1903
$7.84
92037A
CLAMP,CABLE,STEEL SHEET
92037-2014
$1.97
92151
BOLT,SOCKET,6X14
92151-1654
$1.83
92153
BOLT,SOCKET,8X30
92153-1624
$3.90
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92170
CLAMP
92170-1067
$7.45
92171
CLAMP
92171-0974
$3.90
92171A
CLAMP,EDGE CLIP
92171-1722
$8.05
92173A
CLAMP
92173-0151
$12.58
92173B
CLAMP
92173-0215
$2.06
92173C
CLAMP
92173-0229
$2.15
92173D
CLAMP,CLIP
92173-0799
$14.90
130
BOLT-FLANGED,6X16
130BA0616
$1.20
132
BOLT-FLANGED-SMALL,6X10
132BA0610
$1.71
132A
BOLT-FLANGED-SMALL,6X16
132BA0616
$1.51
670
O RING,69.6X5.7
670B5070
$4.18
