Description

Price

11056

BRACKET,RR,LH,F.S.BLACK

11056-0572-18R

Unavailable

11056A

BRACKET,RR,RH,F.S.BLACK

11056-0573-18R

$312.50

32160

FRAME-COMP,RR

32160-0410

Unavailable

32160C

FRAME-COMP,MAIN,F.S.BLACK

32160-0578-18R

Unavailable

56054

MARK,FRAME PAD,LH

56054-0607

$69.87

56054A

MARK,FRAME PAD,RH

56054-0608

$69.87

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$45.69

92049

SEAL-OIL,DS35X55X4

92049-0022

$17.39

92049A

SEAL-OIL,XMH 43 75 6.4J

92049-1382

$24.41

92066

PLUG

92066-0071

$3.35

92153

BOLT,26MM

92153-0474

$28.76

92153A

BOLT,SOCKET,10X35

92153-1442

$7.24

92154

BOLT,SOCKET,8X23

92154-0379

$3.56

92200

WASHER,27X42X2.3

92200-0081

$3.74

92200A

WASHER

92200-0281

$3.90

92210

NUT,STEERING STEM 35MM

92210-0062

$13.18

92210A

NUT,STEERING STEM,35MM

92210-0077

$18.37

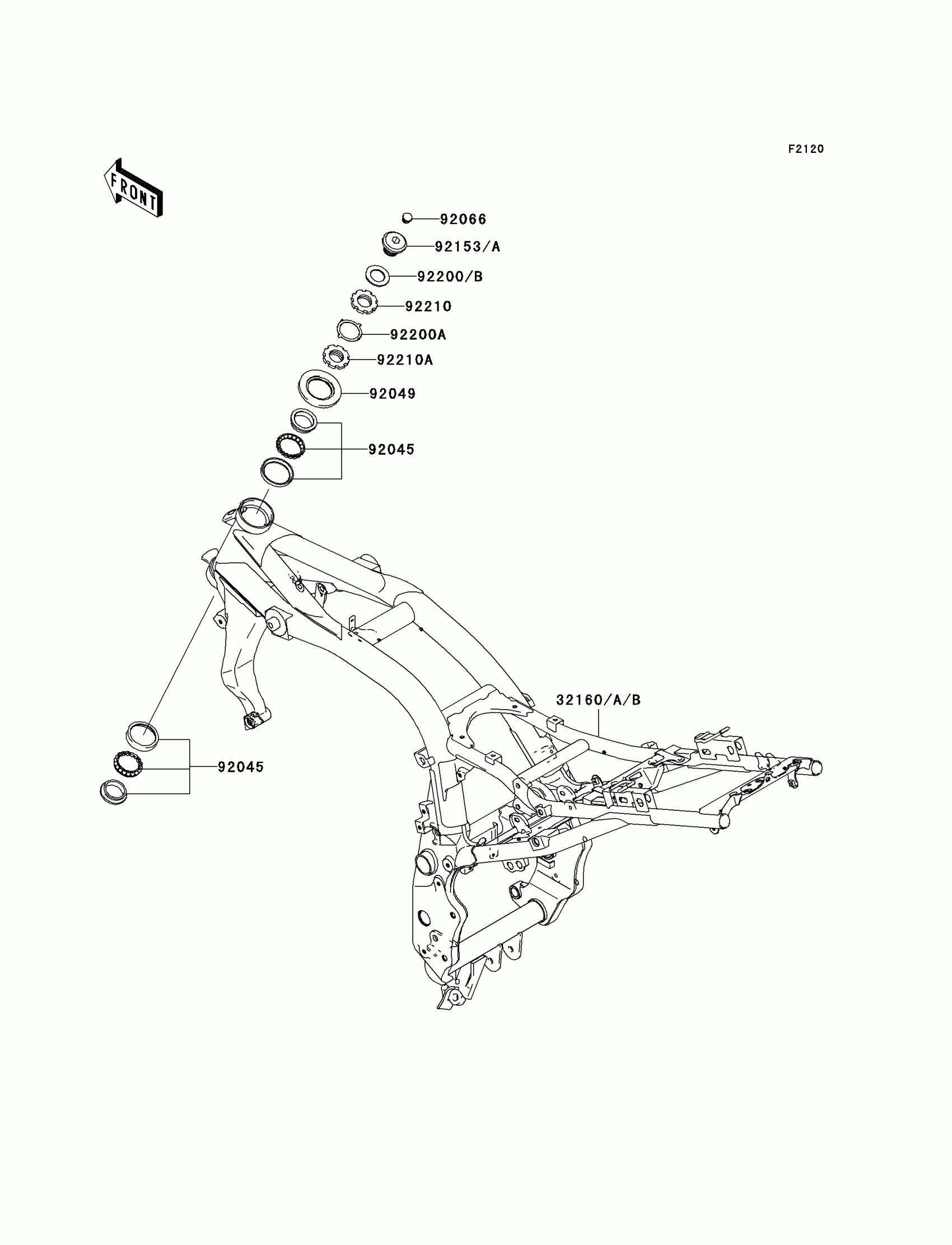

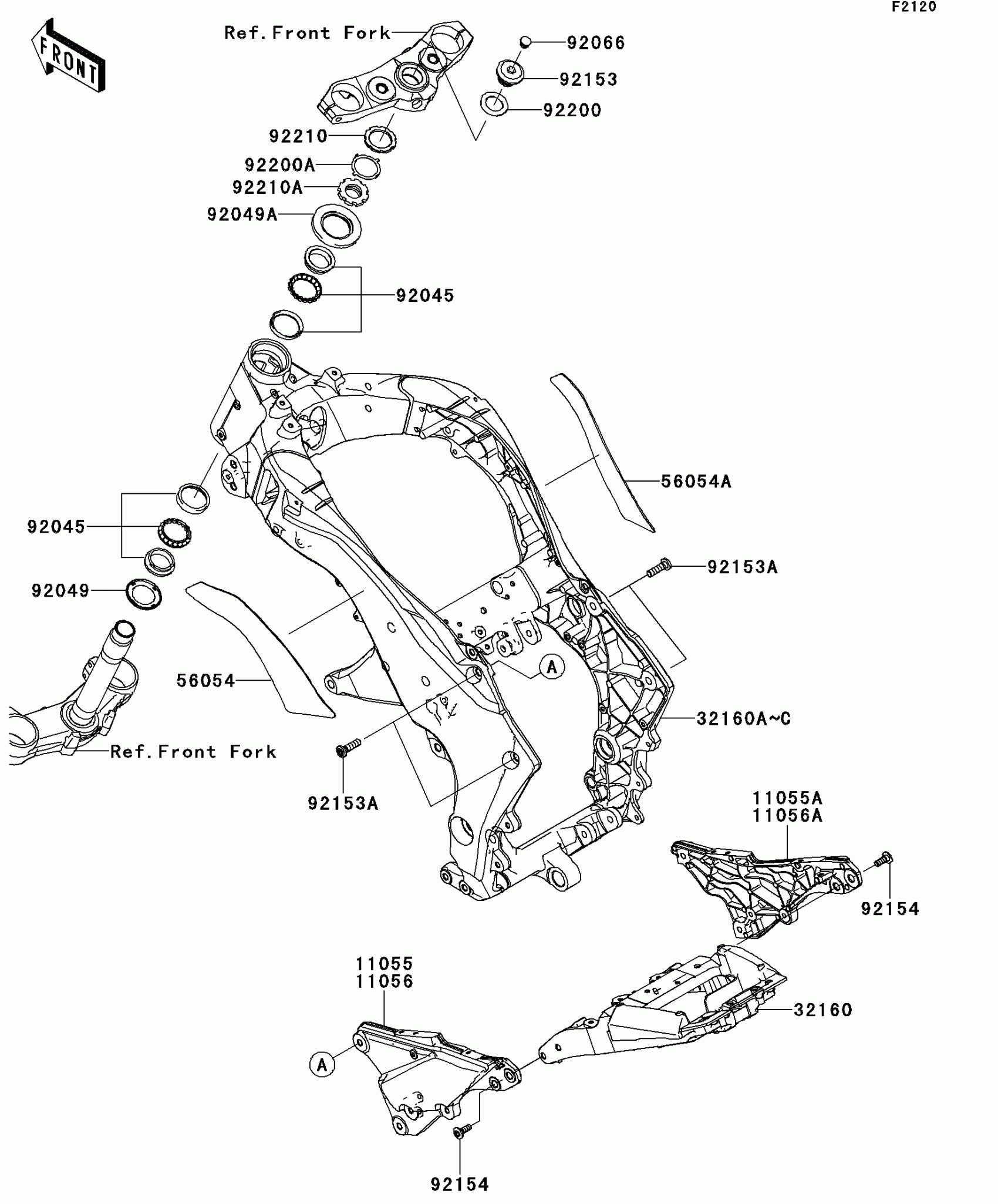

Kawasaki Z1000 Frame Diagram

BRACKET,RR,LH,F.S.BLACK

BRACKET,RR,RH,F.S.BLACK

FRAME-COMP,RR

FRAME-COMP,MAIN,F.S.BLACK

MARK,FRAME PAD,LH

MARK,FRAME PAD,RH

BEARING-BALL,SF07A17PX1V1

SEAL-OIL,DS35X55X4

SEAL-OIL,XMH 43 75 6.4J

PLUG

BOLT,26MM

BOLT,SOCKET,10X35

BOLT,SOCKET,8X23

WASHER,27X42X2.3

WASHER

NUT,STEERING STEM 35MM

NUT,STEERING STEM,35MM
