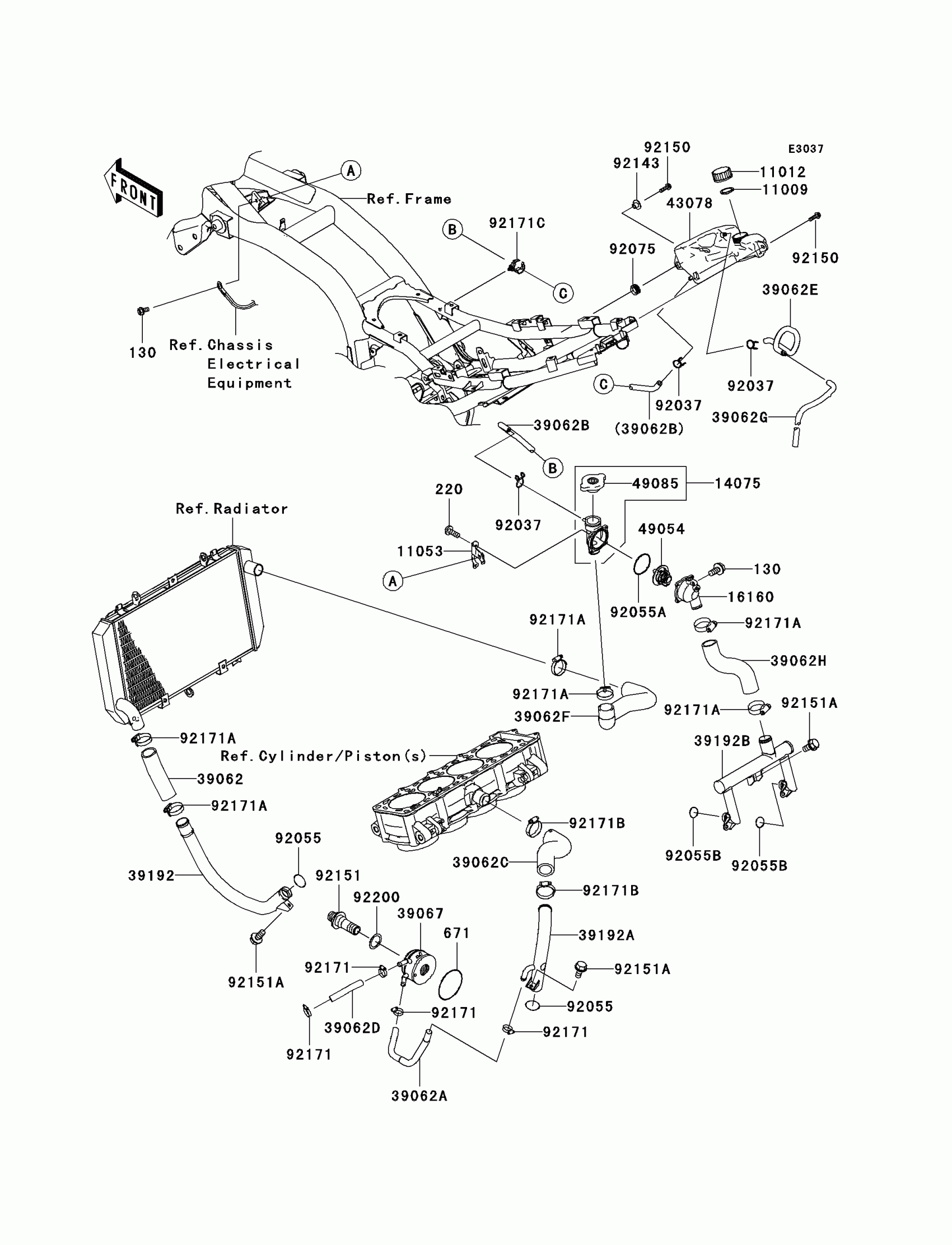

Kawasaki Z1000 (European) Water Pipe Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130BB0612

$2.34

220

SCREW-PAN-CROS,5X14

220AA0514

$4.43

671

O RING,65MM

671B2565

$8.86

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

11053

BRACKET,THERMOSTAT

11053-1070

$11.91

14075

CAP-ASSY

14075-0001

$142.53

16160

BODY,LWR

16160-0039

$69.93

39062

HOSE-COOLING,RAD-PIPE

39062-0190

Unavailable

39062A

HOSE-COOLING,PIPE-OIL COOLER

39062-0205

$51.86

39062B

HOSE-COOLING,RESERVOIR

39062-0207

$17.96

39062C

HOSE-COOLING,PUMP-CYLINDER

39062-0208

$35.51

39062D

HOSE-COOLING,9X15X105

39062-0211

$9.62

39062E

HOSE-COOLING,OVER FLOW

39062-0213

$36.81

39062F

HOSE-COOLING,THERMO-RAD

39062-0234

Unavailable

39062G

HOSE-COOLING

39062-1226

$33.06

39062H

HOSE-COOLING,HEAD-THERMO

39062-1916

Unavailable

39067

COOLER-OIL

39067-0012

$758.28

39192

PIPE-WATER

39192-0046

$68.79

39192A

PIPE-WATER

39192-0069

$68.79

39192B

PIPE-WATER

39192-0073

$214.11

43078

RESERVOIR

43078-0033

$41.93

49054

THERMOSTAT

49054-1067

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1066

$37.42

92037

CLAMP,TUBE

92037-147

$7.34

92055

RING-O,20.8X2.4

92055-0114

$3.90

92055A

RING-O,53.5X2.6

92055-112

$6.63

92055B

RING-O,18.54X2.6

92055-1350

$4.34

92075

DAMPER

92075-1634

$4.69

92143

COLLAR

92143-1962

$6.22

92150

BOLT,FLANGED,6X20

92150-1633

$3.92

92151

BOLT,OIL COOLER

92151-1366

$87.55

92151A

BOLT,6X12

92151-1997

$1.54

92171

CLAMP,COOLING HOSE

92171-0142

$8.94

92171A

CLAMP

92171-0179

$8.20

92171B

CLAMP

92171-0180

$13.37

92171C

CLAMP

92171-0864

$4.65

92200

WASHER,OIL COOLER

92200-1379

$3.01
