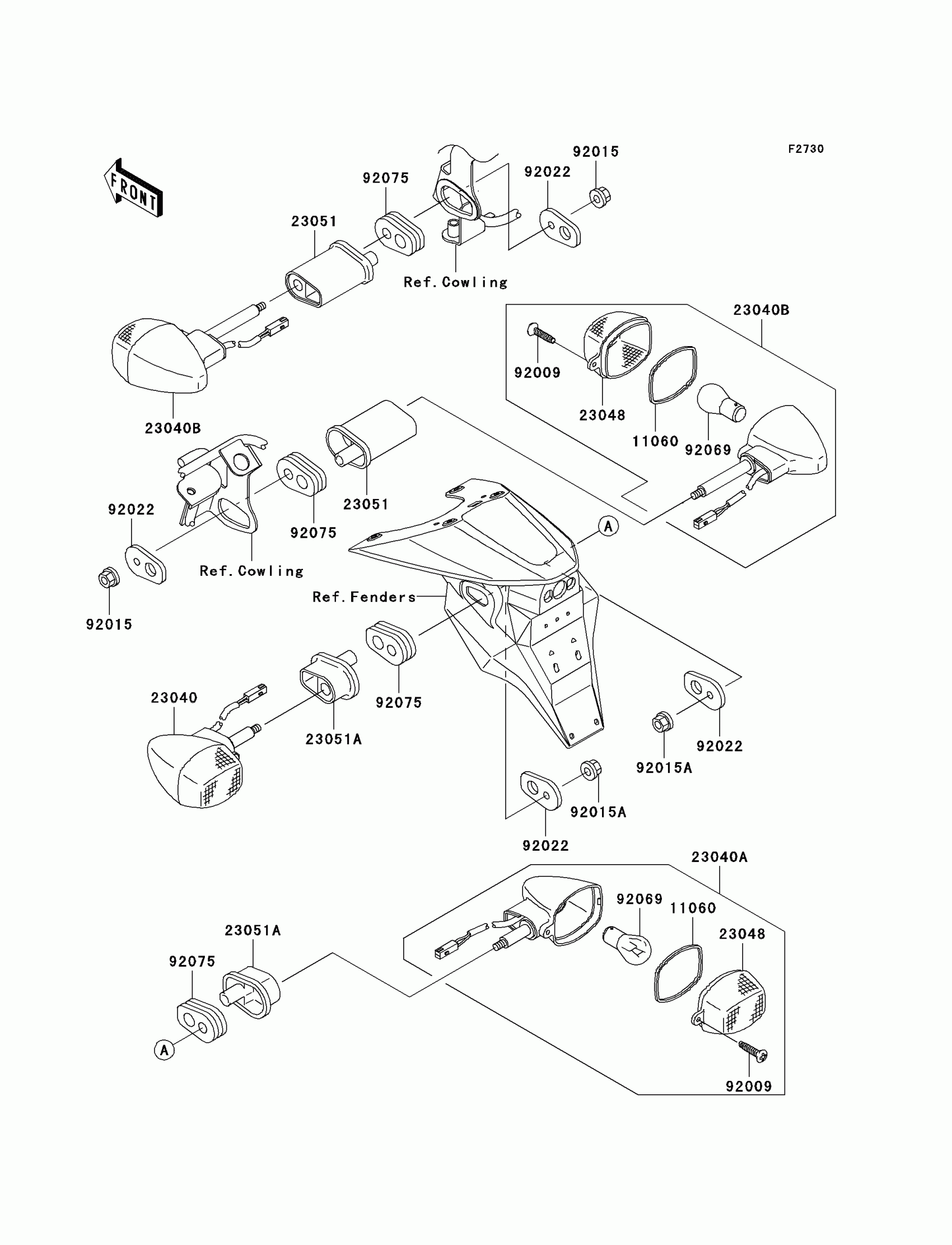

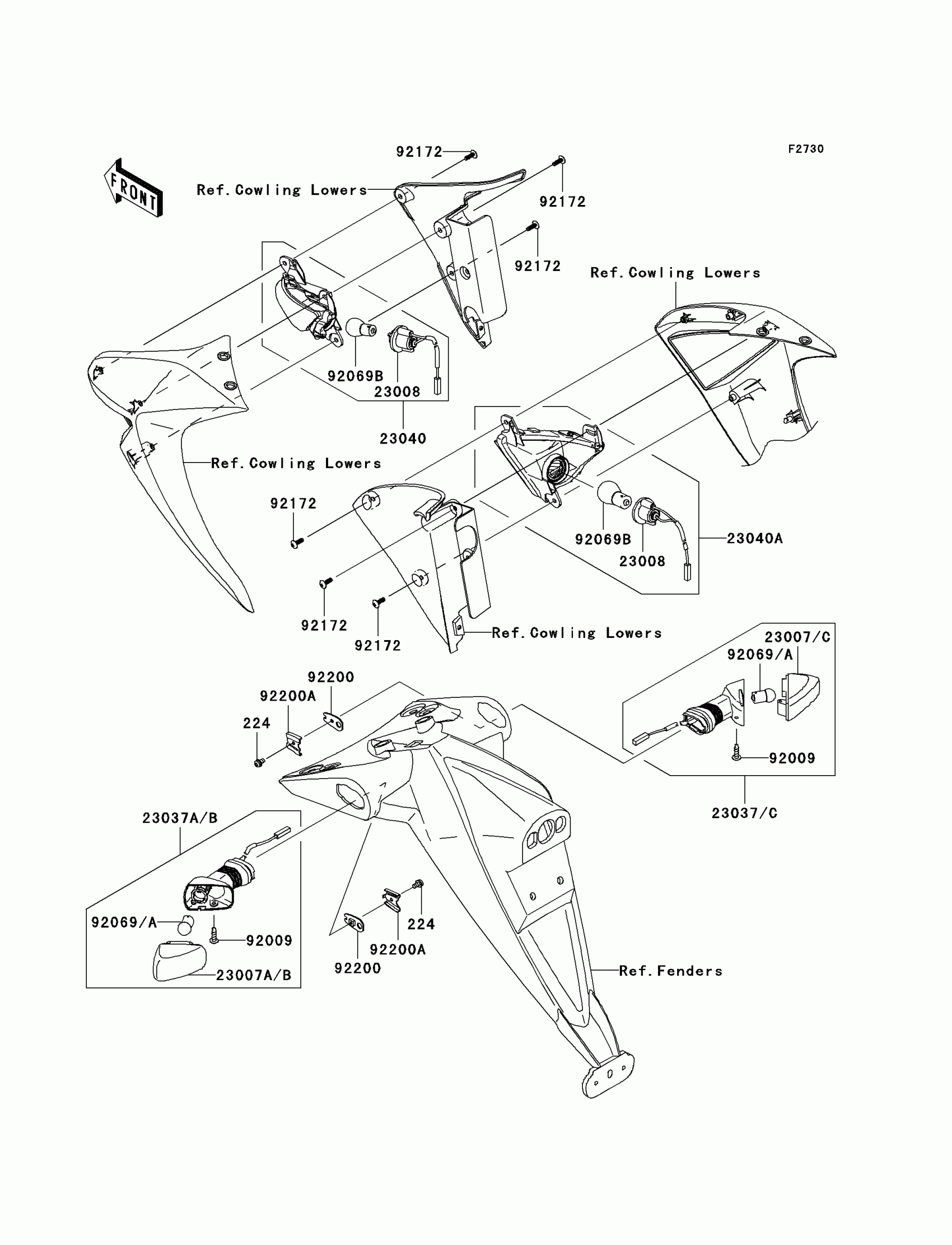

Kawasaki Z1000 (European) Turn Signals Diagram

Description

Price

224

SCREW-PAN-WP-CROS,4X8

224AB0408

$3.67

23007B

LENS-COMP,SIGNAL LAMP,RR,LH

23007-0102

$19.11

23007C

LENS-COMP,SIGNAL LAMP,RR,RH

23007-0103

$19.11

23008

SOCKET-ASSY,SIGNAL LAMP,FR

23008-0044

$21.82

23037B

LAMP-ASSY-SIGNAL,RR,LH

23037-0129

$74.69

23037C

LAMP-ASSY-SIGNAL,RR,RH

23037-0130

$74.69

23040

LAMP-SIGNAL,FR,LH

23040-0059

Unavailable

23040A

LAMP-SIGNAL,FR,RH

23040-0060

Unavailable

92009

SCREW,4X16,BLACK

92009-1158

$3.65

92069A

BULB,12V 10W

92069-0020

$14.47

92069B

BULB,12V 21W

92069-1125

$8.52

92172

SCREW,TAPPING,5X16

92172-0175

$1.78

92200

WASHER,SIGNAL LAMP

92200-0164

$3.94

92200A

WASHER,SIGNAL LAMP

92200-0165

$3.94
