2009 Kawasaki Z1000 (European) Throttle Diagram

← All diagrams

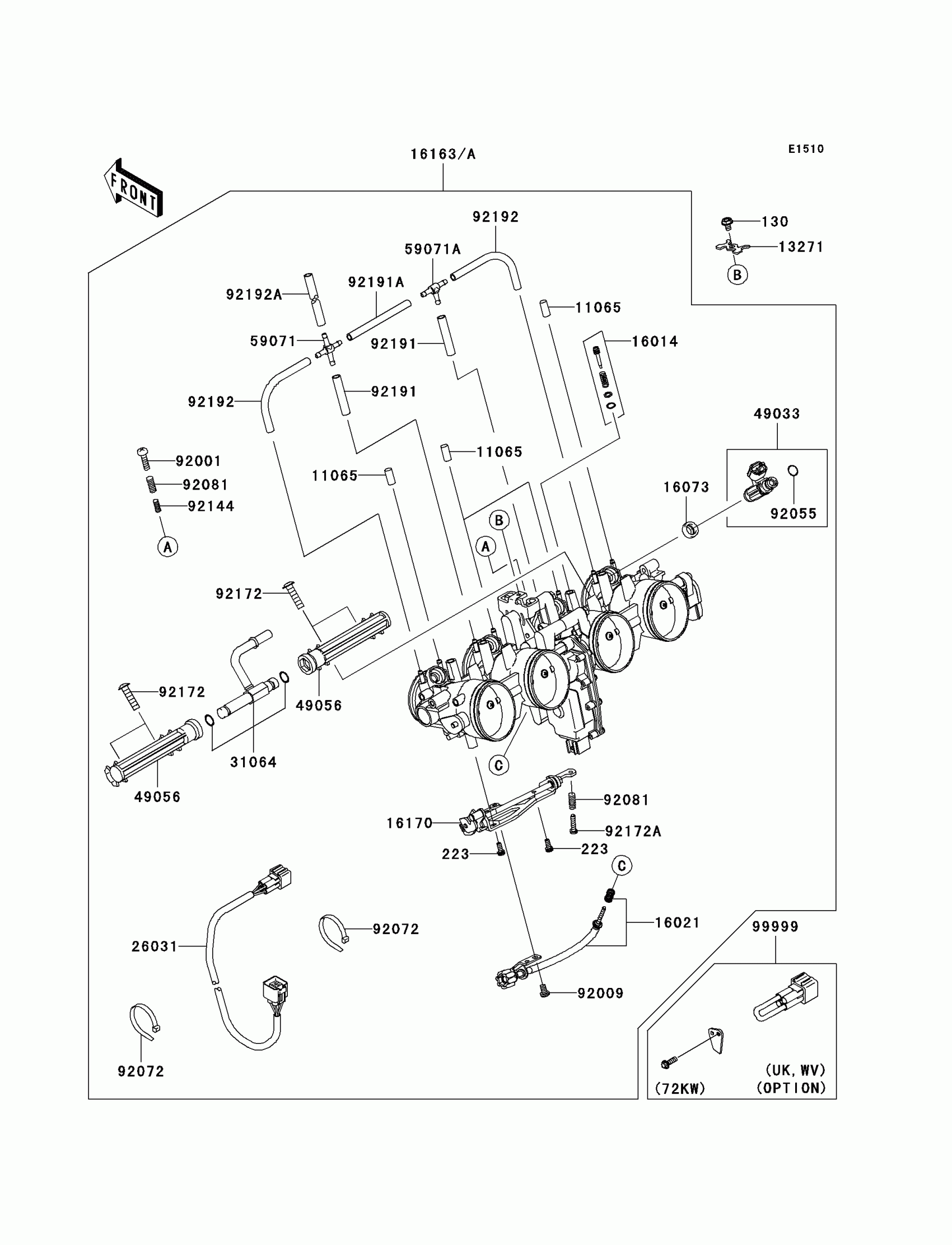

Find the part on the Throttle diagram for your 2009 Kawasaki Z1000 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Z1000 (European) Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X8

130BA0508

1

$1.53

In stock

223

SCREW-PAN-WS-CROSS,4X10

223AA0410

1
Out of stock

11065

CAP

11065-0018

1
Out of stock

13271

PLATE

13271-0056

1

$3.29

In stock

16014

SCREW-PILOT AIR

16014-0002

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-0017

1
Out of stock

16073

INSULATOR

16073-3707

1
Out of stock

16170

LINK-ASSY

16170-0005

1
Out of stock

26031

HARNESS

26031-0313

1
Out of stock

31064

PIPE-COMP,FUEL

31064-0101

1
Out of stock

49033

NOZZLE-INJECTION

49033-0012

1
Out of stock

49056

PIPE-INJECTION

49056-0001

1
Out of stock

59071

JOINT,4WAY

59071-0014

1
Out of stock

59071A

JOINT,3WAY,T

59071-3752

1
Out of stock

92001

BOLT,THROTTLE ADJUST

92001-1998

1
Out of stock

92009

SCREW,5X10

92009-1502

1
Out of stock

92055

RING-O,INJECTION NOZZLE

92055-1622

1
Out of stock

92072

BAND,SUB-HARNESS

92072-0012

1
Out of stock

92081

SPRING

92081-1620

1
Out of stock

92144

SPRING

92144-1451

1
Out of stock

92172

SCREW,PIPE INJECTION

92172-0064

1
Out of stock

92172A

SCREW

92172-0321

1
Out of stock

92191

TUBE,3X7X30

92191-0025

1
Out of stock

92191A

TUBE,3X7X82

92191-0036

1
Out of stock

92192

TUBE,3X7X95

92192-0018

1
Out of stock

92192A

TUBE,3X7X170

92192-0019

1
Out of stock

16163

THROTTLE-ASSY,TTK36

16163-0079

1
Out of stock

16163A

THROTTLE-ASSY,TTK36

16163-0102

1
Out of stock

99999

KIT.,72KW

99999-0114

1
Out of stock
