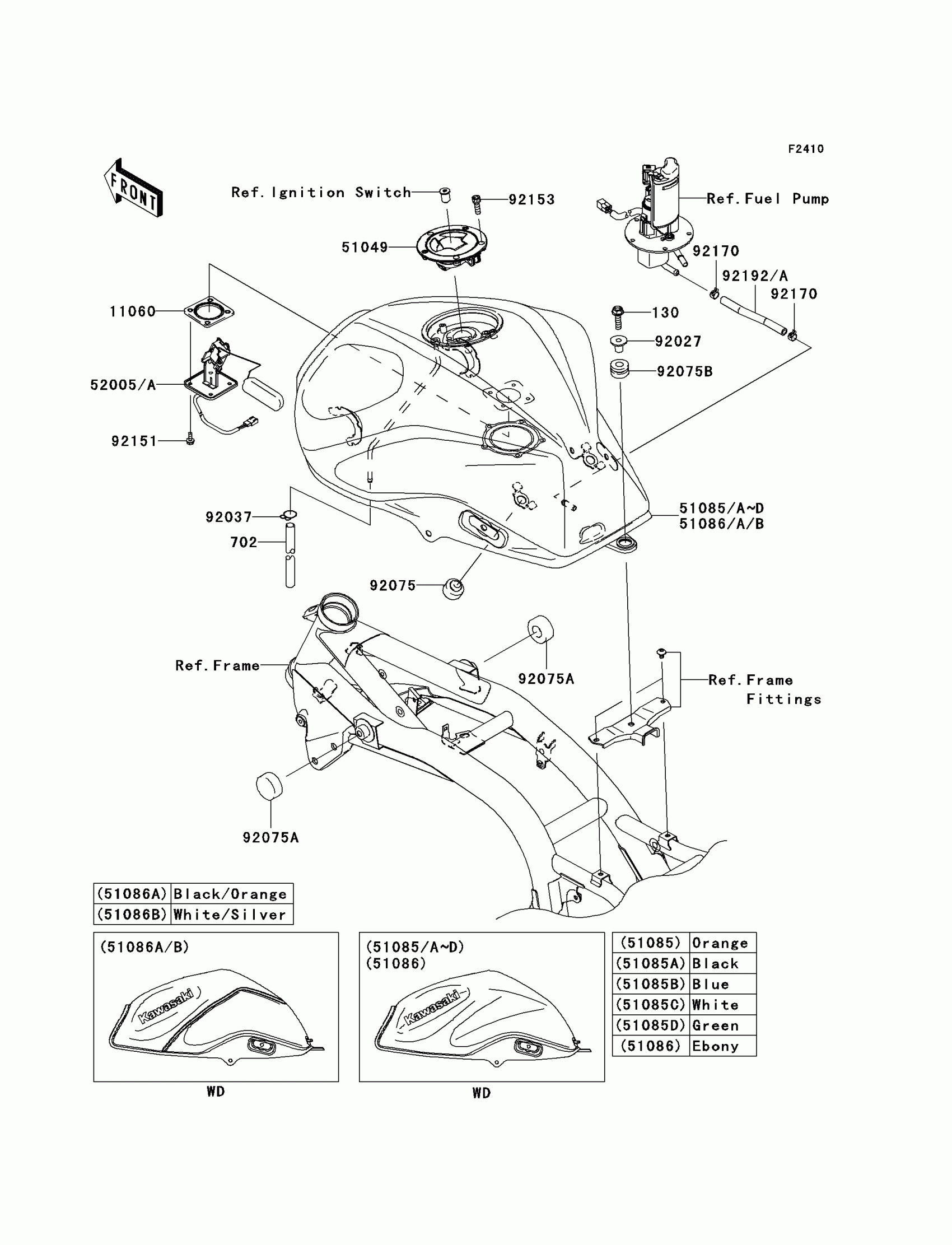

Kawasaki Z1000 (European) Fuel Tank Diagram

Description

Price

120

BOLT-SOCKET,5X16

120S0516

Unavailable

130

BOLT,FLANGED,8X30

130G0830

Unavailable

702

TUBE-RUBBER,6X9X750

702A06750

$20.58

11060

GASKET,FUEL GAUGE

11060-1952

$17.15

51049

CAP-TANK,FUEL

51049-0010

$113.81

51083F

TANK-COMP-FUEL,M,S,BLACK

51083-5444-660

Unavailable

51083G

TANK-COMP-FUEL,TITANIUM

51083-5445-725

$1,467.50

51083H

TANK-COMP-FUEL,L.GREEN

51083-5445-777

Unavailable

52005

GAUGE,FUEL

52005-1160

Unavailable

92027

COLLAR,L=19.3

92027-1780

$4.93

92037

CLAMP,TUBE

92037-010

$2.99

92075

DAMPER

92075-015

$3.81

92075A

DAMPER,FUEL TANK

92075-101

$4.67

92075B

DAMPER

92075-1736

$4.93

92151

BOLT,5X12

92151-1599

$1.23

92170

CLAMP

92170-1492

$3.81

92191

TUBE

92191-1801

Unavailable
