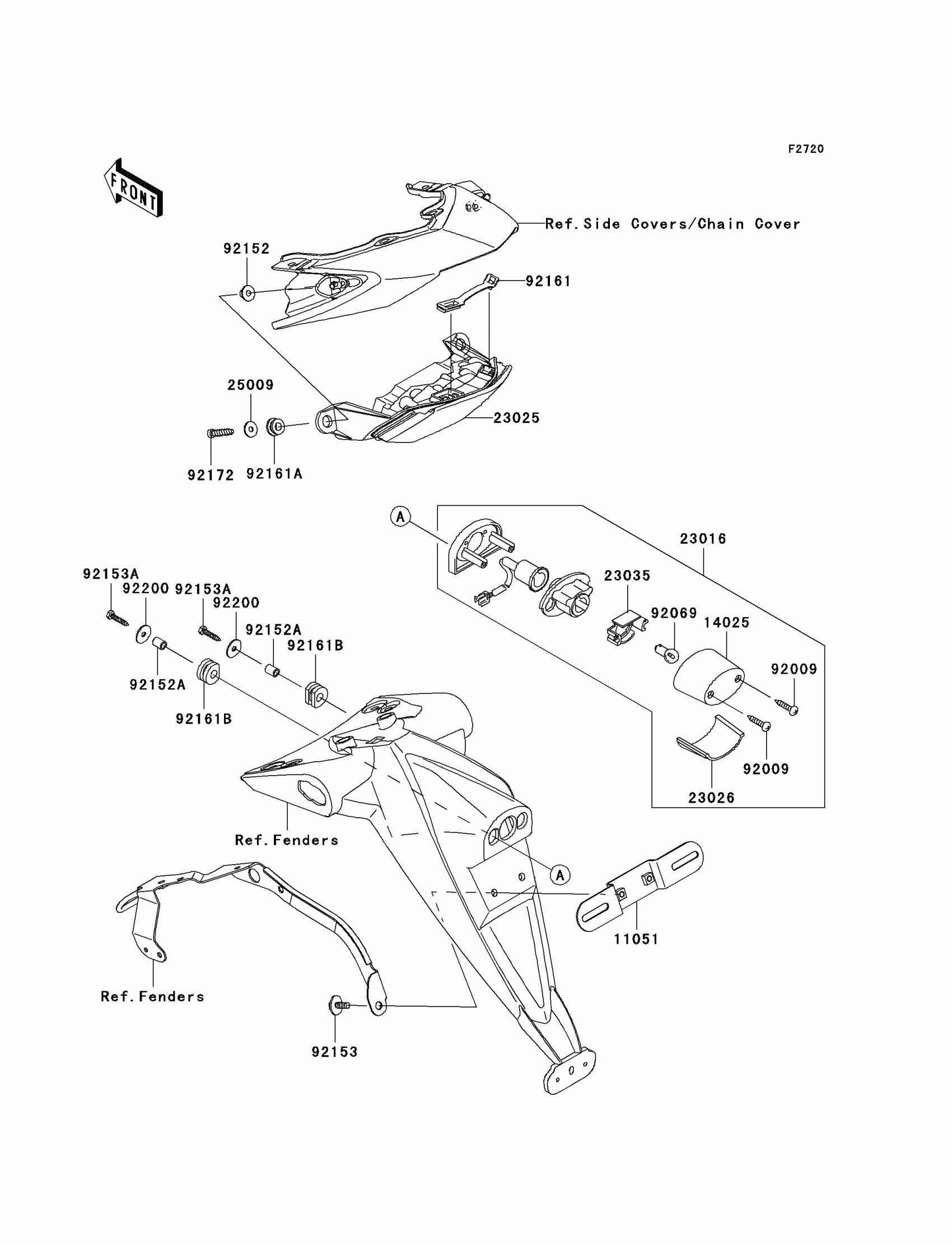

Kawasaki Z1000 (European) Taillight(s) Diagram

Description

Price

11051

BRACKET,LICENSE

11051-1503

$16.01

14025

COVER,LICENSE LAMP

14025-1725

$18.40

23016

LAMP-ASSY,LICENSE

23016-1200

Unavailable

23025

LAMP-TAIL

23025-0027

Unavailable

23026

LENS,LICENSE LAMP

23026-1064

$26.12

23035

REFLECTOR-LAMP,LICENSE

23035-1066

$19.16

25009

WASHER,5.2X16X1.2

25009-004

$3.65

92009

SCREW,TAPPING,4X20

92009-1378

$4.10

92069

BULB,12V 5W

92069-1055

$5.18

92152

COLLAR

92152-0092

$6.61

92152A

COLLAR,6X9X11.5

92152-0372

$2.61

92153

BOLT,6X16

92153-0684

$4.49

92153A

BOLT,TAPPING,5X25

92153-1424

$1.00

92161

DAMPER,TAIL LAMP

92161-0191

$4.60

92161A

DAMPER

92161-0317

$3.39

92161B

DAMPER

92161-1313

Unavailable

92172

SCREW-PAN-CROS,5X25

92172-0056

$2.93

92200

WASHER,5.5X20X1.2

92200-0284

$2.15
