2005 Kawasaki Z1000 (European) Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2005 Kawasaki Z1000 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

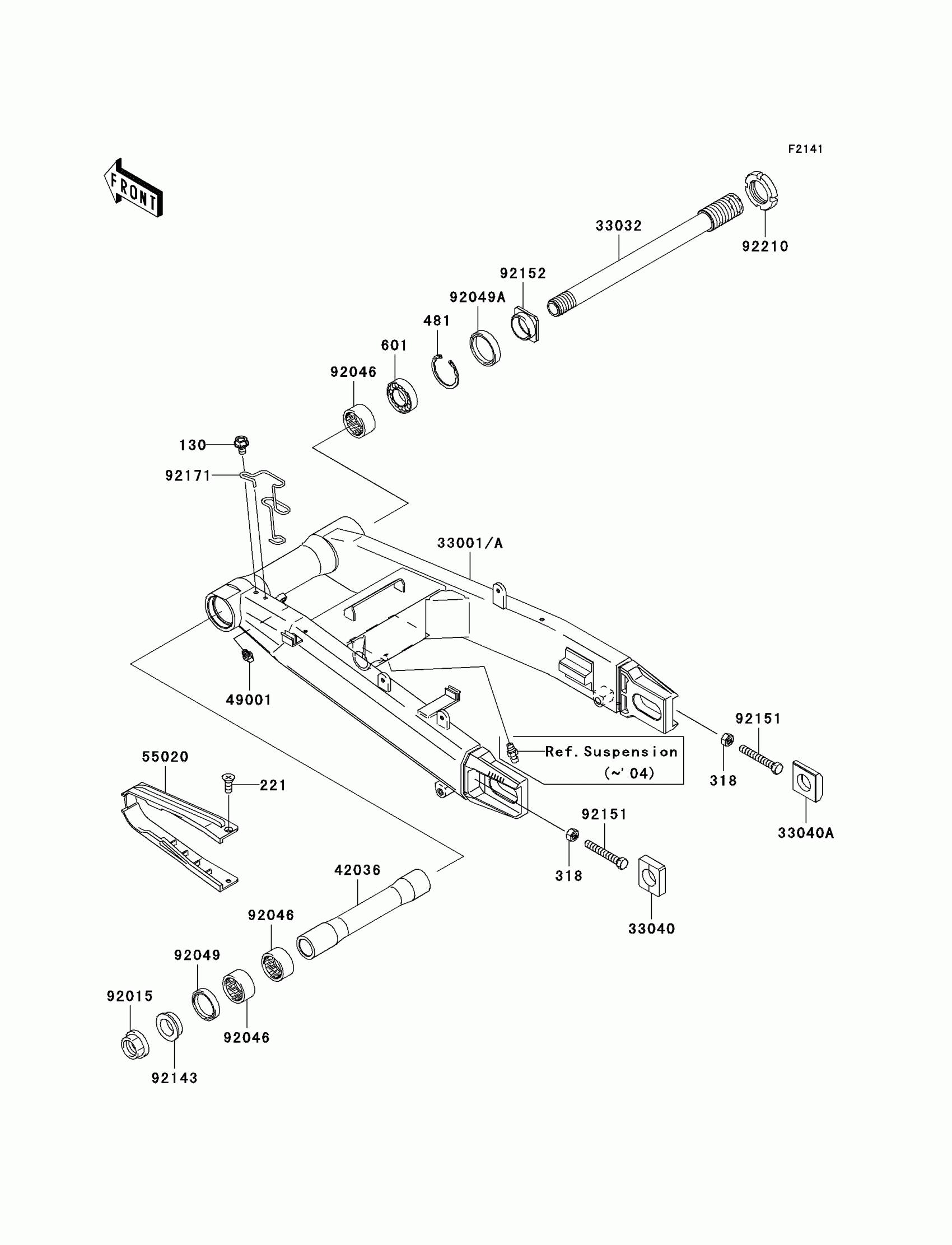

2005 Kawasaki Z1000 (European) Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130J0610

1
Out of stock

221

SCREW-CSK-CROS,5X8

221C0508

1
Out of stock

318

NUT-HEX-SMALL,8MM

318G0800

1
Out of stock

481

1

$3.36

In stock

601

1

$25.56

In stock

33001

ARM-COMP-SWING,F.BLACK

33001-0044-21

1

$993.99

In stock

33032

SHAFT-SWING ARM

33032-1206

1

$157.12

In stock

33040

ADJUSTER-CHAIN,RH

33040-1114

1

$15.15

In stock

33040A

ADJUSTER-CHAIN,RH

33040-1180

1
Out of stock

42036

SLEEVE,SWING ARM,L=224.5

42036-0002

1
Out of stock

49001

NIPPLE-GREASE

49001-0001

1

$2.44

In stock

55020

GUARD,CHAIN

55020-1700

1
Out of stock

92015

NUT,FLANGED,25MM

92015-1845

1

$23.68

In stock

92046

BEARING-NEEDLE,BM3520

92046-1205

1
Out of stock

92049

SEAL-OIL,MHA 35X47X5

92049-1381

1
Out of stock

92049A

SEAL-OIL,KC38X47X6

92049-1521

1
Out of stock

92143

1

$31.44

In stock

92151

BOLT,8X55

92151-1578

1
Out of stock

92152

1

$33.77

In stock

92171

CLAMP,TUBE&HOSE

92171-0042

1

$10.17

In stock

92210

NUT,32MM

92210-1205

1
Out of stock
