2005 Kawasaki Z1000 (European) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2005 Kawasaki Z1000 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

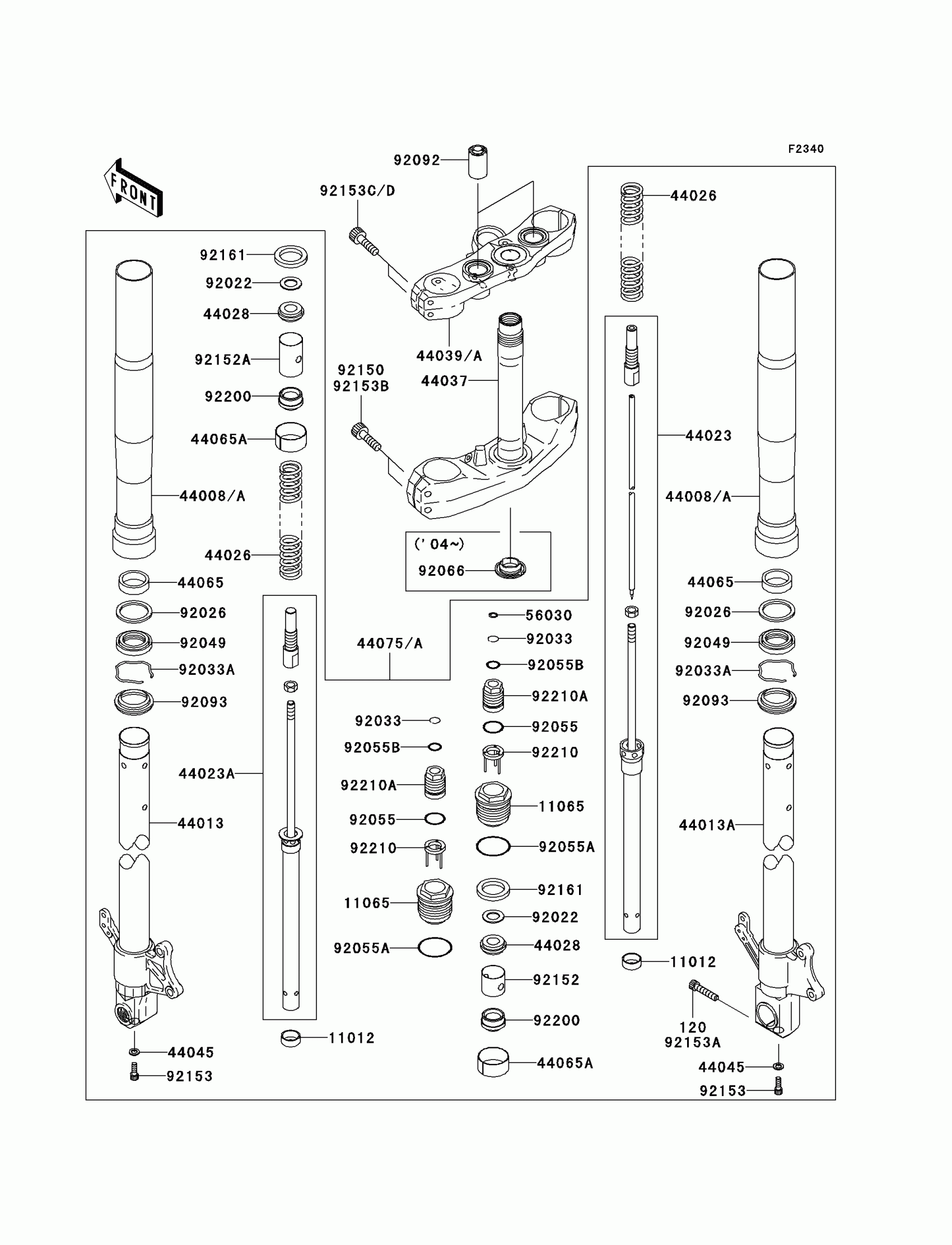

2005 Kawasaki Z1000 (European) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1761

1
Out of stock

11065

CAP

11065-0011

1
Out of stock

44008

PIPE-FORK OUTER

44008-1059

1
Out of stock

44013

PIPE-FORK INNER,LH,M.M.GOLD

44013-1513-D3

1
Out of stock

44013A

PIPE-FORK INNER,RH,M.M.GOLD

44013-1514-D3

1
Out of stock

44023

CYLINDER-SET-FORK,RH

44023-0002

1
Out of stock

44023A

CYLINDER-SET-FORK,LH

44023-0003

1
Out of stock

44026

SPRING-FRONT FORK

44026-0004

1
Out of stock

44028

GUIDE-FORK SPRING

44028-1083

1
Out of stock

44037

HOLDER-FORK UNDER

44037-1444

1
Out of stock

44039

HOLDER-FORK UPPER

44039-0020

1
Out of stock

44045

GASKET,FORK CYLINDER BOLT

44045-051

1
Out of stock

44065

BUSHING-FRONT FORK,GUIDE

44065-0001

1
Out of stock

44065A

BUSHING-FRONT FORK,SLIDE

44065-0002

1
Out of stock

44075

DAMPER-SET-FORK,M.M.GOLD

44075-0018-D3

1
Out of stock

56030

LABEL

56030-0006

1
Out of stock

92022

WASHER,SPRING SEAT

92022-1713

1
Out of stock

92026

SPACER,FORK OUTER

92026-1276

1
Out of stock

92033

RING-SNAP

92033-0002

1
Out of stock

92033A

RING-SNAP

92033-1222

1
Out of stock

92049

SEAL-OIL,FORK

92049-1363

1
Out of stock

92055

RING-O

92055-0003

1
Out of stock

92055A

RING-O,FORK CAP

92055-1497

1
Out of stock

92055B

RING-O

92055-1498

1
Out of stock

92066

PLUG

92066-0032

1
Out of stock

92092

BUSHING-RUBBER

92092-1090

1
Out of stock

92093

SEAL,FORK

92093-1268

1
Out of stock

92152

COLLAR,SPRING,L=30

92152-0011

1
Out of stock

92152A

COLLAR,SPRING,L=47.5

92152-0012

1
Out of stock

92153

BOLT,SOCKET,8X22

92153-0028

1
Out of stock

92153A

BOLT,SOCKET,8X40

92153-0536

1
Out of stock

92153B

BOLT,SOCKET

92153-0537

1
Out of stock

92153C

BOLT,SOCKET

92153-0538

1
Out of stock

92161

DAMPER

92161-0006

1
Out of stock

92200

WASHER

92200-1464

1
Out of stock

92210

SPRING ADJUST PLATE

92210-0019

1
Out of stock

92210A

NUT,SPRING ADJUSTER

92210-0020

1
Out of stock
