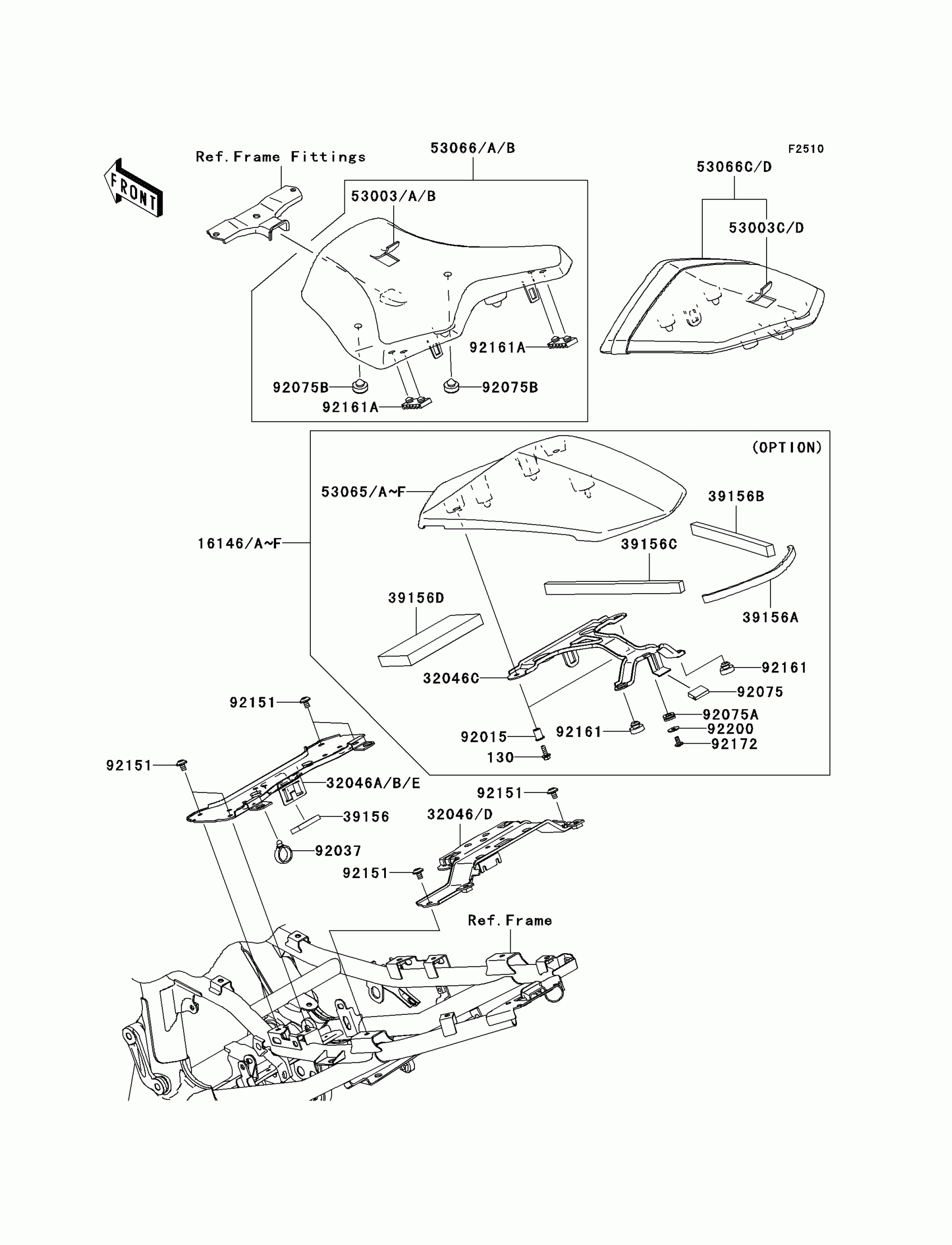

Kawasaki Z1000 (European) Seat Diagram
#
Description
Price
16146
COVER-ASSY,SINGLE SEAT,EBONY
16146-0075-H8
$221.04
16146C
COVER-ASSY,SINGLE SEAT,C.B.ORANGE
16146-0075-17L
$219.03
16146D
COVER-ASSY,SINGLE SEAT,P.C.WHITE
16146-0075-667
$94.11
32046C
BRACKET-SEAT
32046-0120
$49.95
32046D
BRACKET-SEAT,RR,BLACK
32046-0124-18R
$49.95
32046E
BRACKET-SEAT,FR,BLACK
32046-0125-18R
$59.51
39156
PAD
39156-0320
$3.35
39156A
PAD,SEAT COVER,RR
39156-0417
$4.09
39156B
PAD,SEAT COVER,RH
39156-0422
$4.09
39156C
PAD,SEAT COVER,LH
39156-0423
$4.09
39156D
PAD,SEAT COVER,FR
39156-0424
$8.18
53003
LEATHER,FRONT SEAT,BLACK
53003-0095-MA
$146.36
53003C
LEATHER,REAR SEAT,BLACK
53003-0096-MA
$146.36
53003D
LEATHER,REAR SEAT,M.C.ORANGE
53003-0096-12Q
$153.53
53065
COVER SEAT,EBONY
53065-0015-H8
$211.56
53065C
COVER SEAT,C.B.ORANGE
53065-0015-17L
$221.98
53065D
COVER SEAT,P.C.WHITE
53065-0015-667
$221.75
130
BOLT-FLANGED,5X14
130BA0514
$2.06
53066
SEAT-ASSY,FR,BLACK
53066-0138-MA
$323.79
53066C
SEAT,RR,LEATHER BLK+BAND BLK
53066-0139-12Y
$234.92
53066D
SEAT,RR,LEATHER ORN+BAND ORN
53066-0139-13L
$246.54
92015
NUT,WELL,5MM
92015-1757
$7.29
92037
CLAMP,HOSE
92037-1827
$7.45
92075
DAMPER
92075-1446
$4.69
92075A
DAMPER
92075-161
$4.69
92075B
DAMPER,10X20X8
92075-1927
$4.39
92151
BOLT,SOCKET,6X14
92151-1654
$1.83
92161
DAMPER
92161-0046
$9.43
92161A
DAMPER,SEAT
92161-0149
Unavailable
92172
SCREW,TAPPING,5X10
92172-1061
Unavailable
92200
WASHER
92200-0288
$1.34
