2005 Kawasaki Z1000 (European) Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2005 Kawasaki Z1000 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

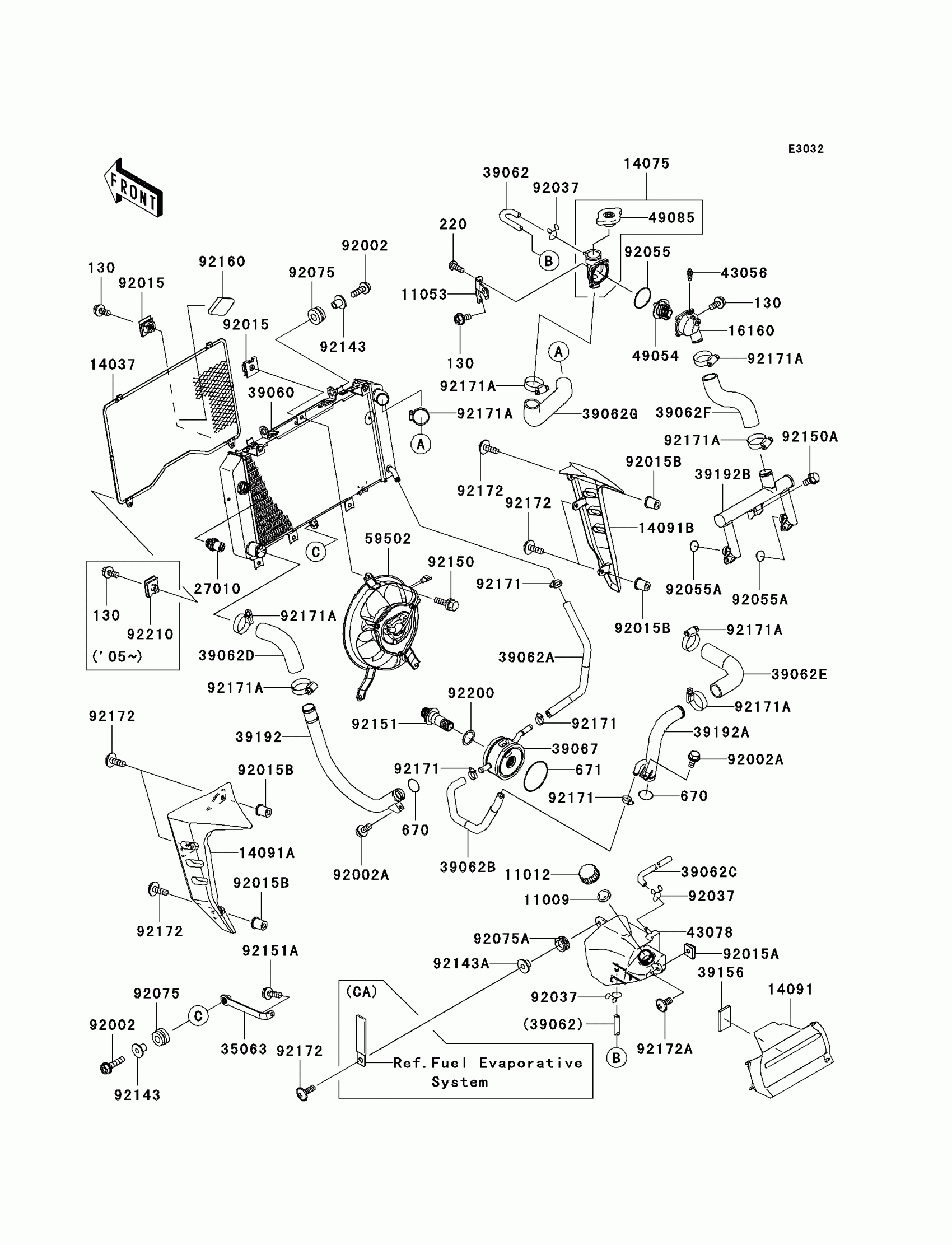

2005 Kawasaki Z1000 (European) Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

11053

BRACKET,THERMOSTAT

11053-1070

1

$12.15

In stock

14037

SCREEN

14037-1315

1

$98.53

In stock

14075

CAP-ASSY

14075-0001

1

$145.52

In stock

14091

COVER

14091-1532

1
Out of stock

14091A

COVER,RADIATOR,LH,P.SILVER

14091-1541-458

1
Out of stock

14091B

COVER,RADIATOR,RH,P.SILVER

14091-1542-458

1
Out of stock

16160

BODY,THERMOSTAT

16160-1360

1
Out of stock

27010

SWITCH

27010-1443

1
Out of stock

35063

STAY,RADIATOR

35063-1261

1
Out of stock

39060

RADIATOR

39060-0004

1

$946.65

In stock

39062

1

$17.32

In stock

39062A

1

$34.32

In stock

39062B

1

$46.06

In stock

39062C

1

$38.54

In stock

39062D

1

$109.70

In stock

39062E

1

$33.90

In stock

39062F

HOSE-COOLING,HEAD-THERMO

39062-1916

1
Out of stock

39062G

1

$49.71

In stock

39067

COOLER-OIL

39067-0004

1

$776.89

In stock

39156

PAD

39156-0018

1

$4.12

In stock

39192

PIPE-WATER

39192-0012

1

$69.41

In stock

39192A

PIPE-WATER

39192-0014

1
Out of stock

39192B

PIPE-WATER

39192-1151

1
Out of stock

43056

BREATHER

43056-003

1
Out of stock

43078

RESERVOIR

43078-1187

1
Out of stock

49054

THERMOSTAT

49054-1067

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1066

1
Out of stock

59502

FAN-ASSY

59502-0002

1
Out of stock

92002

BOLT,FLANGED,6X25

92002-1086

1
Out of stock

92002A

BOLT,6X12

92002-1569

1
Out of stock

92015

NUT

92015-1487

1
Out of stock

92015A

NUT,CLAMP,6MM

92015-1531

1
Out of stock

92015B

NUT

92015-1700

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92055

RING-O,53.5X2.6

92055-112

1
Out of stock

92055A

RING-O,18.54X2.6

92055-1350

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92075A

DAMPER

92075-1634

1
Out of stock

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

220

SCREW-PAN-CROS,5X14

220D0514

1
Out of stock

670

O RING,21MM

670B2021

1
Out of stock

671

O RING,65MM

671B2565

1
Out of stock

92143

COLLAR

92143-1353

1
Out of stock

92143A

COLLAR

92143-1962

1
Out of stock

92150

BOLT,6X12

92150-1186

1
Out of stock

92150A

BOLT,FLANGED-SMALL,6X12

92150-1841

1
Out of stock

92151

BOLT,OIL COOLER

92151-1366

1
Out of stock

92151A

BOLT,FLANGED,6X16

92151-1774

1
Out of stock

92160

DAMPER

92160-1863

1
Out of stock

92171

CLAMP,COOLING HOSE

92171-0142

1

$8.71

In stock

92171A

CLAMP

92171-0179

1

$6.51

In stock

92172

SCREW,6X18

92172-0002

1
Out of stock

92172A

SCREW,6X14

92172-0004

1
Out of stock

92200

WASHER,OIL COOLER

92200-1379

1
Out of stock

92210

NUT

92210-1125

1
Out of stock
