2005 Kawasaki Z1000 (European) Crankcase Diagram

← All diagrams

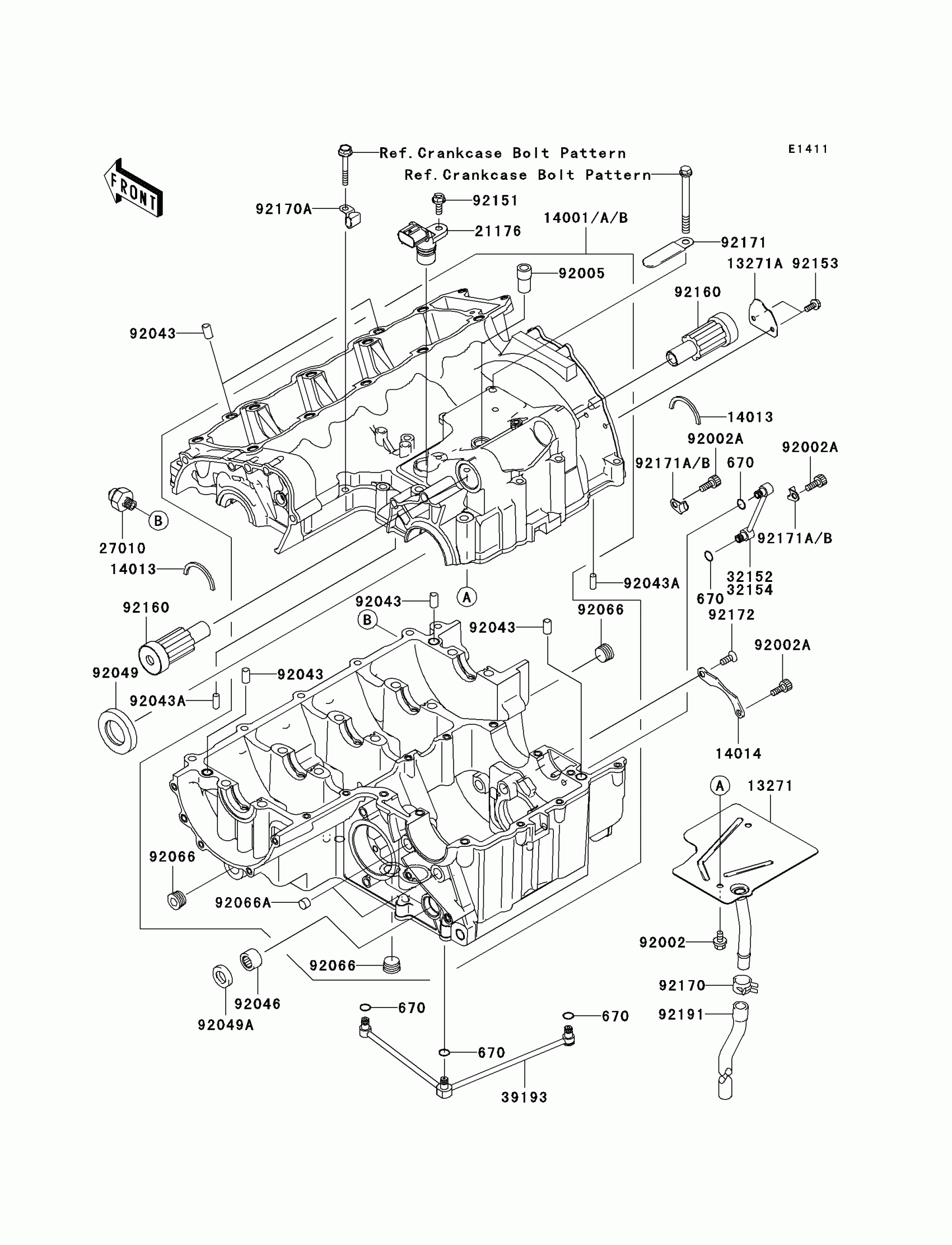

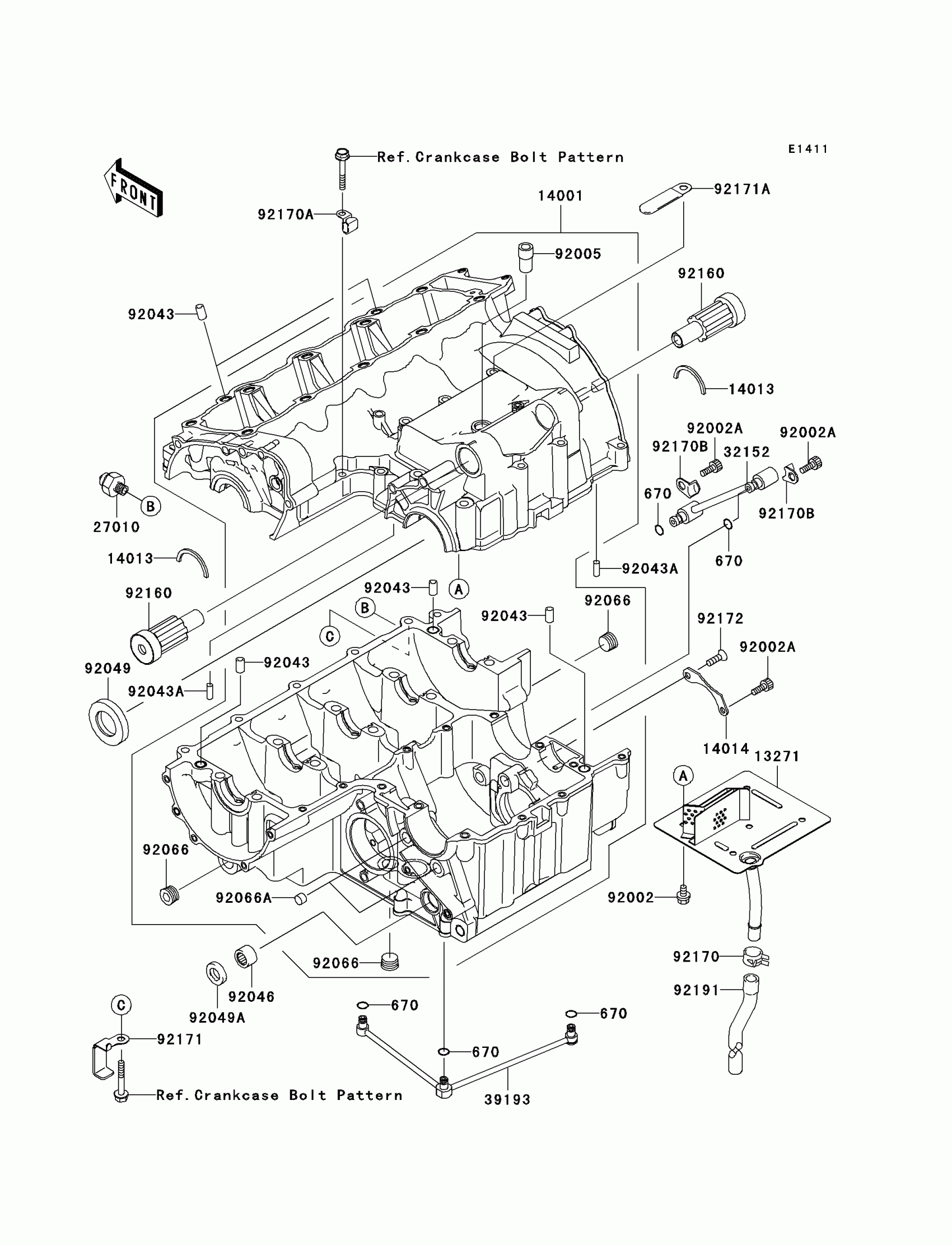

Find the part on the Crankcase diagram for your 2005 Kawasaki Z1000 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Z1000 (European) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING

670D1505

1
Out of stock

13271

PLATE,BREATHER

13271-1511

1

$76.69

In stock

14001

SET-CRANKCASE

14001-1321

1

$1,805.93

In stock

14013

RING-POSITION

14013-1051

1

$3.16

In stock

14014

PLATE-POSITION

14014-1140

1

$7.12

In stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

32152

PIPE,RH,L=76.8

32152-1545

1
Out of stock

39193

PIPE-OIL

39193-0014

1

$51.11

In stock

92002

BOLT,6X10

92002-1449

1
Out of stock

92002A

BOLT,SOCKET,6X16

92002-1778

1
Out of stock

92005

FITTING,BREATHER

92005-1238

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92043A

PIN,6X16

92043-1690

1
Out of stock

92046

BEARING-NEEDLE,7E-HK1412

92046-037

1
Out of stock

92049

SEAL-OIL,TC32578

92049-1474

1
Out of stock

92049A

SEAL-OIL,TC14245

92049-1520

1
Out of stock

92066

PLUG,PT3/8X10

92066-0003

1
Out of stock

92066A

PLUG

92066-1110

1
Out of stock

92160

DAMPER

92160-1868

1
Out of stock

92170

CLAMP

92170-1118

1

$5.93

In stock

92170A

CLAMP

92170-1577

1

$3.03

In stock

92170B

CLAMP

92170-1578

1

$4.25

In stock

92171

CLAMP,WATER HOSE

92171-0070

1

$5.34

In stock

92171A

CLAMP

92171-0092

1

$2.31

In stock

92172

SCREW,6X16

92172-0090

1
Out of stock

92191

TUBE,BREATHER

92191-1776

1
Out of stock
