Muffler(s)

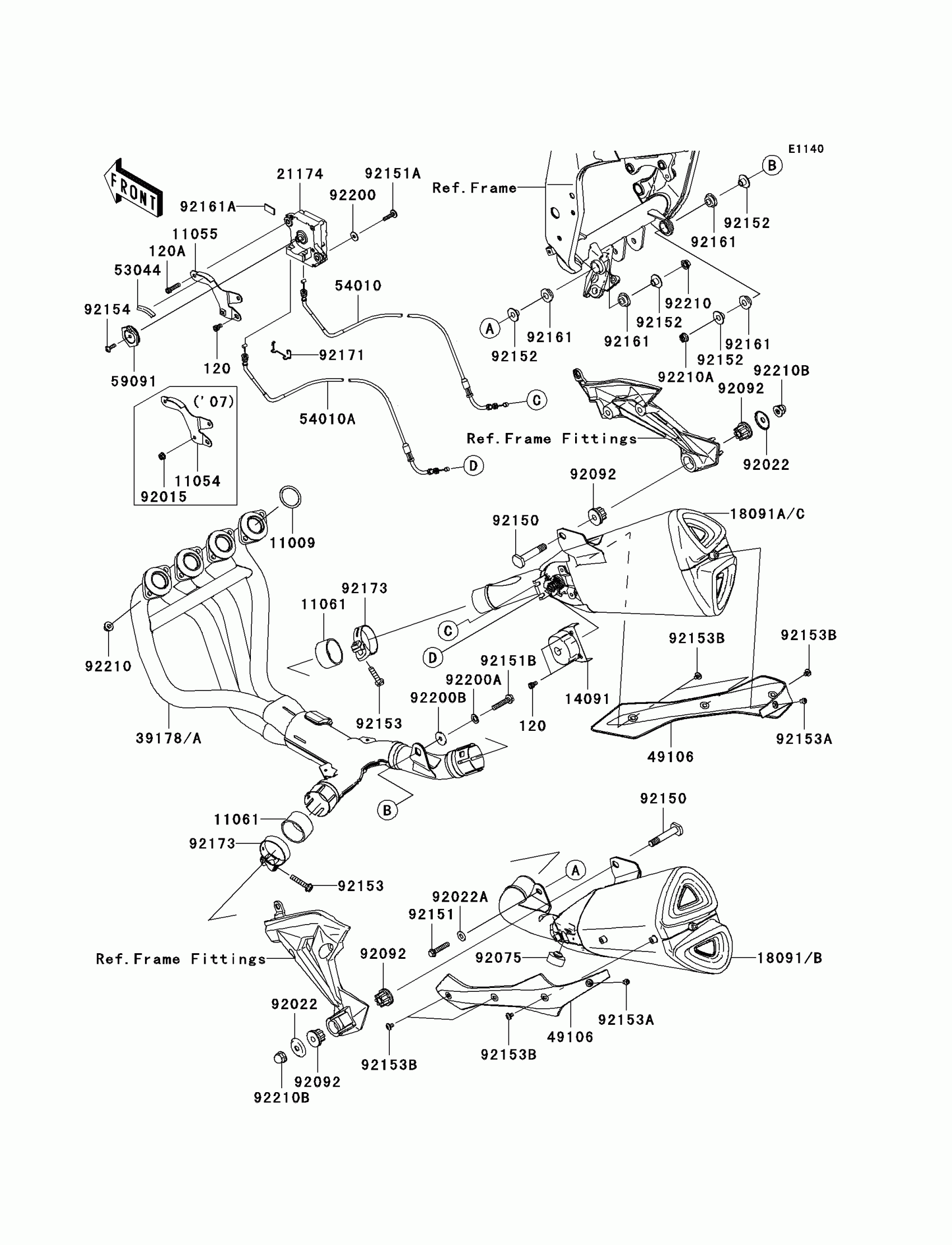

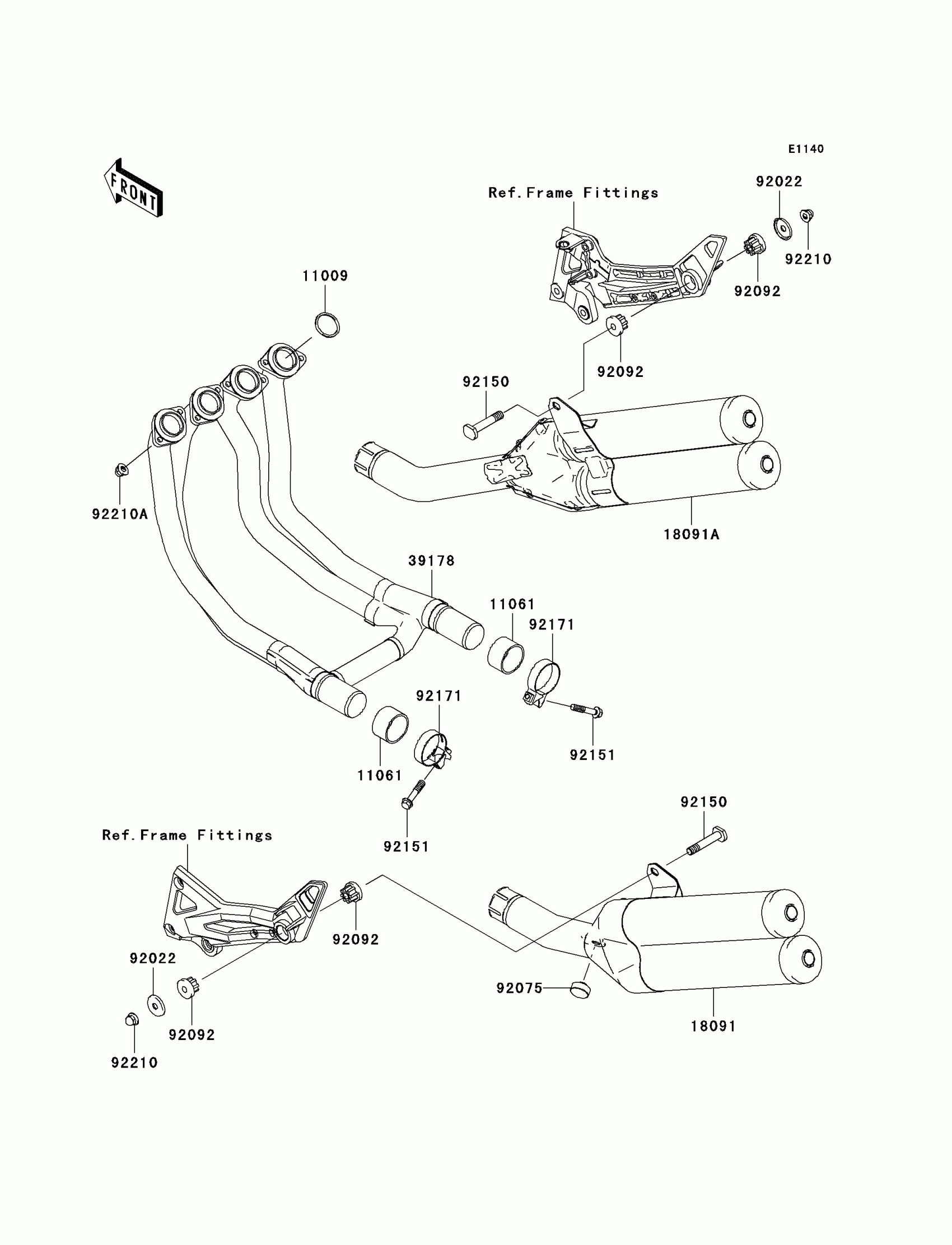

Kawasaki Z1000 (European) Muffler(s) Diagram
#
120
BOLT-SOCKET,6X10
120CB0610
$2.49
11009
GASKET,EXHAUST PIPE HOLDER
11009-1856
$5.66
11055
BRACKET,MOTOR
11055-0341
$14.56
11061
GASKET,MUFFLER CONNECTING
11061-0240
$34.51
14091
COVER,PULLEY
14091-0712
$41.69
18091B
BODY-COMP-MUFFLER,LH
18091-0564
Unavailable
18091C
BODY-COMP-MUFFLER,RH
18091-0565
Unavailable
21174
MOTOR-ELECTRIC
21174-0005
$337.67
39178A
MANIFOLD-COMP-EXHAUST
39178-0131
$1,665.84
49106
COVER-MUFFLER
49106-0071
$207.33
53044
TRIM,L=40
53044-0012
$2.97
54010
CABLE,OPEN,WHITE NUT
54010-0079
$90.29
54010A
CABLE,CLOSE,BLACK NUT
54010-0080
$90.29
59091
PULLEY
59091-0007
$22.29
92022
WASHER
92022-289
$16.33
92022A
WASHER,8.5X19X1.2
92022-3730
$4.31
92075
DAMPER
92075-1737
$8.58
92092
BUSHING-RUBBER,MUFFLER
92092-1087
$19.90
92150
BOLT,10X55
92150-1792
$8.66
92151
BOLT,FLANGED,8X40
92151-1532
$2.67
92151A
BOLT,SOCKET,6X25
92151-1611
$2.34
92151B
BOLT,FLANGED,8X40
92151-2130
$1.80
92152
COLLAR
92152-0188
$3.73
92153
BOLT,8X45
92153-0702
$3.44
92153A
BOLT,HEX HEAD,6X8
92153-1758
$2.15
92153B
BOLT,HEX HEAD,6X8
92153-1839
$2.17
92154
BOLT,TORX,5X18
92154-0217
$3.71
92161
DAMPER,MANIFOLD MOUNT
92161-0532
$7.82
92161A
DAMPER
92161-1170
$4.04
92171
CLAMP
92171-0292
$10.11
92173
CLAMP
92173-0037
$27.35
92200
WASHER
92200-0078
$2.12
92200A
WASHER,10X18X1.2
92200-0400
$3.89
92200B
WASHER,8X26X2.3
92200-3780
$3.63
92210
NUT,8MM
92210-0121
$2.26
92210A
NUT,FLANGED,LOCK,8MM
92210-0159
$11.95
92210B
NUT,CAP,10MM
92210-1121
$4.22
120A
BOLT-SOCKET,6X25
120CB0625
$2.62
