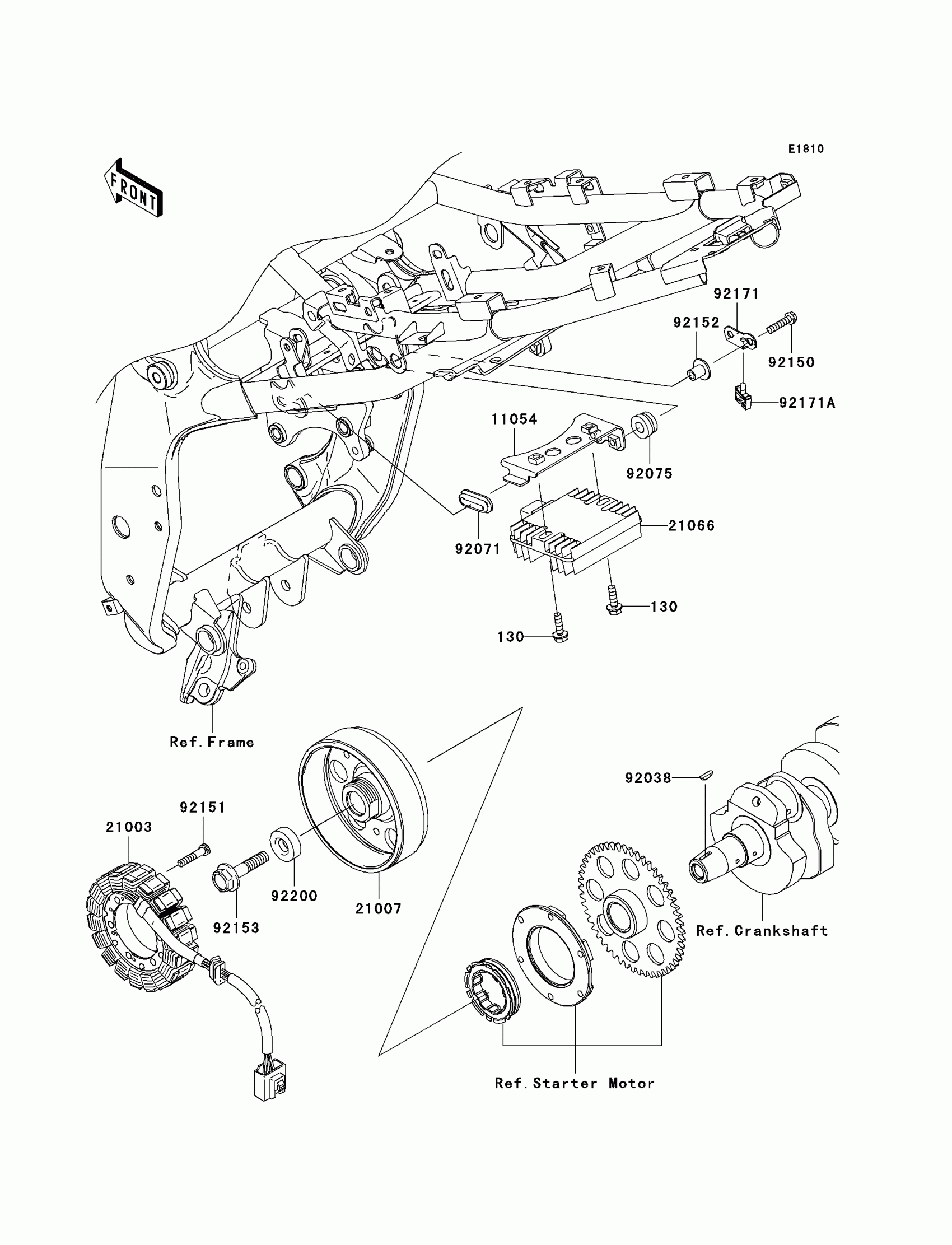

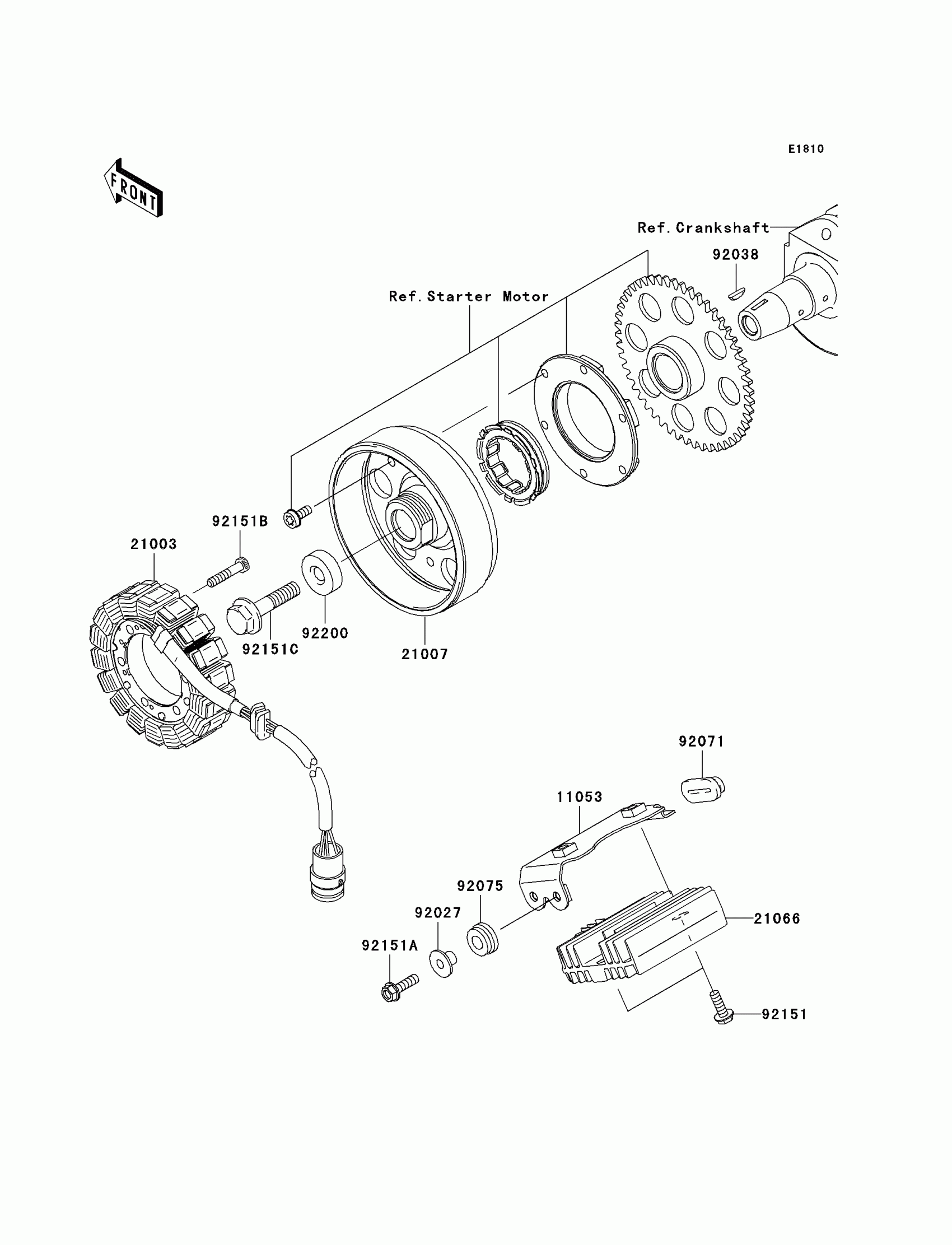

Kawasaki Z1000 (European) Generator Diagram

Description

Price

130

BOLT-FLANGED,6X20

130BB0620

$0.46

11054

BRACKET,REGULATOR

11054-0875

$21.71

21003

STATOR

21003-0046

Unavailable

21007

ROTOR

21007-0021

$628.18

21066

REGULATOR-VOLTAGE

21066-1127

Unavailable

92038

KEY

92038-1060

$7.77

92071

GROMMET

92071-1187

$4.96

92075

DAMPER,RUBBER

92075-1123

$5.00

92150

BOLT,FLANGED-SMALL,6X25

92150-1779

Unavailable

92151

BOLT,6X30

92151-1626

$2.75

92152

COLLAR

92152-0667

$7.37

92153

BOLT,12X40

92153-1855

$29.84

92171

CLAMP

92171-0930

$9.26

92171A

CLAMP

92171-0931

$4.92

92200

WASHER,12X34X9

92200-0369

$11.93
