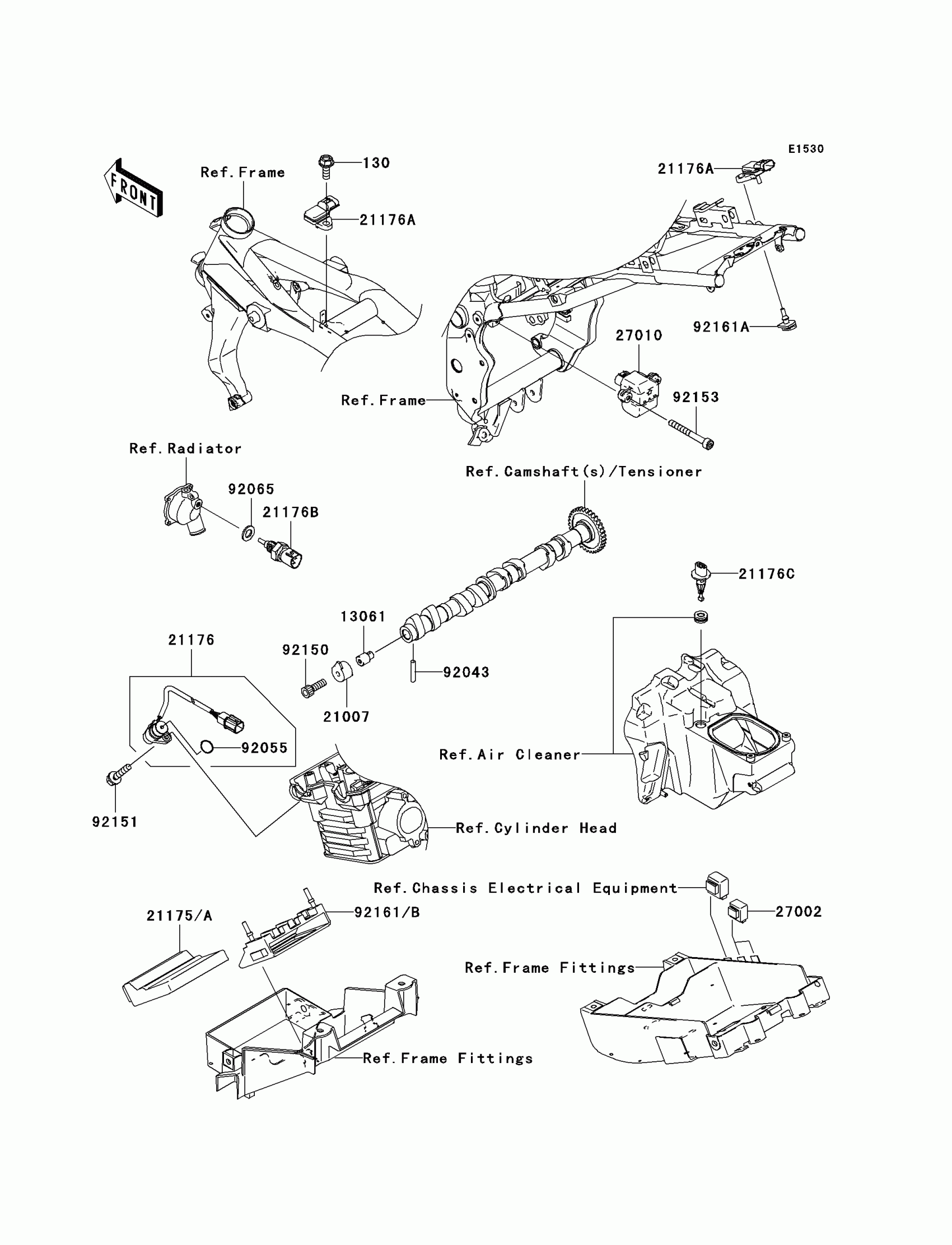

Kawasaki Z1000 (European) Fuel Injection Diagram

#

Description
Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

13061

BOSS,CAM SENSOR

13061-1687

$16.18

21007

ROTOR

21007-0005

$12.48

21175

CONTROL UNIT-ELECTRONIC,IMMOBI

21175-0051

Unavailable

21176

SENSOR

21176-1077

$102.13

21176A

SENSOR

21176-1118

$141.24

21176B

SENSOR,WATER TEMP

21176-1120

$70.27

21176C

SENSOR,AIR TEMP

21176-2106

$25.15

27002

RELAY-ASSY

27002-1062

$45.39

27010

SWITCH

27010-0007

$162.46

92043

PIN

92043-1575

$2.46

92055

RING-O

92055-1639

$3.09

92065

GASKET,12X22X2

92065-097

$0.74

92150

BOLT,6X18

92150-1645

$3.60

92151

BOLT,FLANGED,6X16

92151-1774

Unavailable

92153

BOLT,4X35

92153-0377

$2.06

92161A

DAMPER

92161-0041

$5.00

92161B

DAMPER

92161-0206

$33.04
