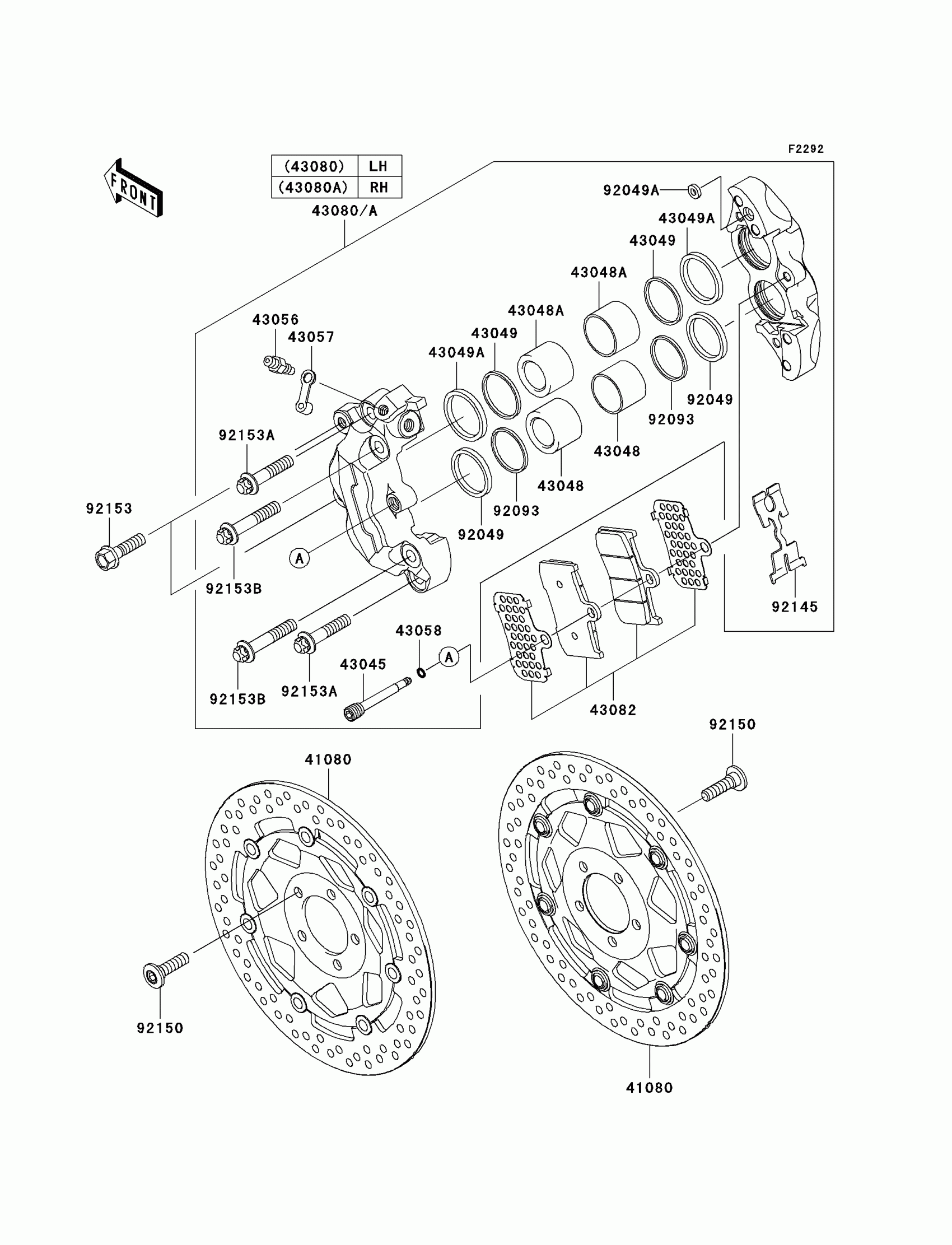

Kawasaki Z1000 (European) Front Brake Diagram

Description

Price

41080

DISC,FR,HOUSING GLD+DISC SIL

41080-0001-488

$451.74

43045

SHAFT-CALIPER

43045-1053

$7.52

43048

PISTON-CALIPER

43048-0001

$68.36

43048A

PISTON-CALIPER

43048-0002

$76.36

43049

PACKING

43049-1081

$7.77

43049A

PACKING

43049-1082

$11.06

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43058

RING,STOPPER

43058-1100

$11.70

43080

CALIPER-SUB-ASSY,FR,LH,R.GOLD

43080-0001-483

$417.53

43080A

CALIPER-SUB-ASSY,FR,RH,R.GOLD

43080-0002-483

$417.53

43082

PAD-ASSY-BRAKE

43082-0002

$76.43

92049

SEAL-OIL,PISTON

92049-1331

$9.28

92049A

SEAL-OIL

92049-1448

$3.92

92093

SEAL,PISTON

92093-1272

$19.45

92145

SPRING,PAD

92145-0184

$17.88

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92153

BOLT,FLANGED,8X30

92153-1089

$2.41

92153A

BOLT,TORX,8X38

92153-1093

$4.18

92153B

BOLT,TORX,8X45

92153-1094

$4.18
