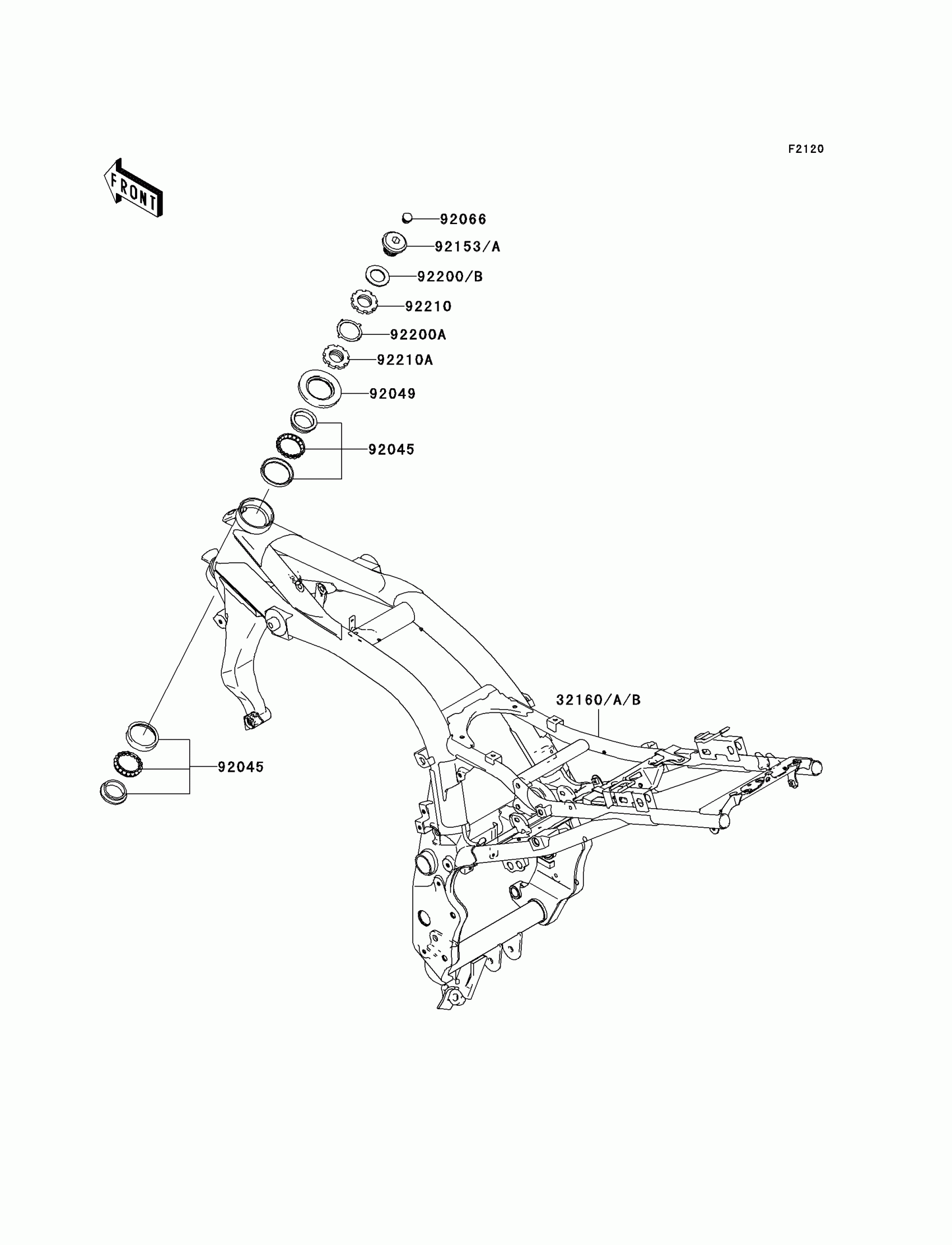

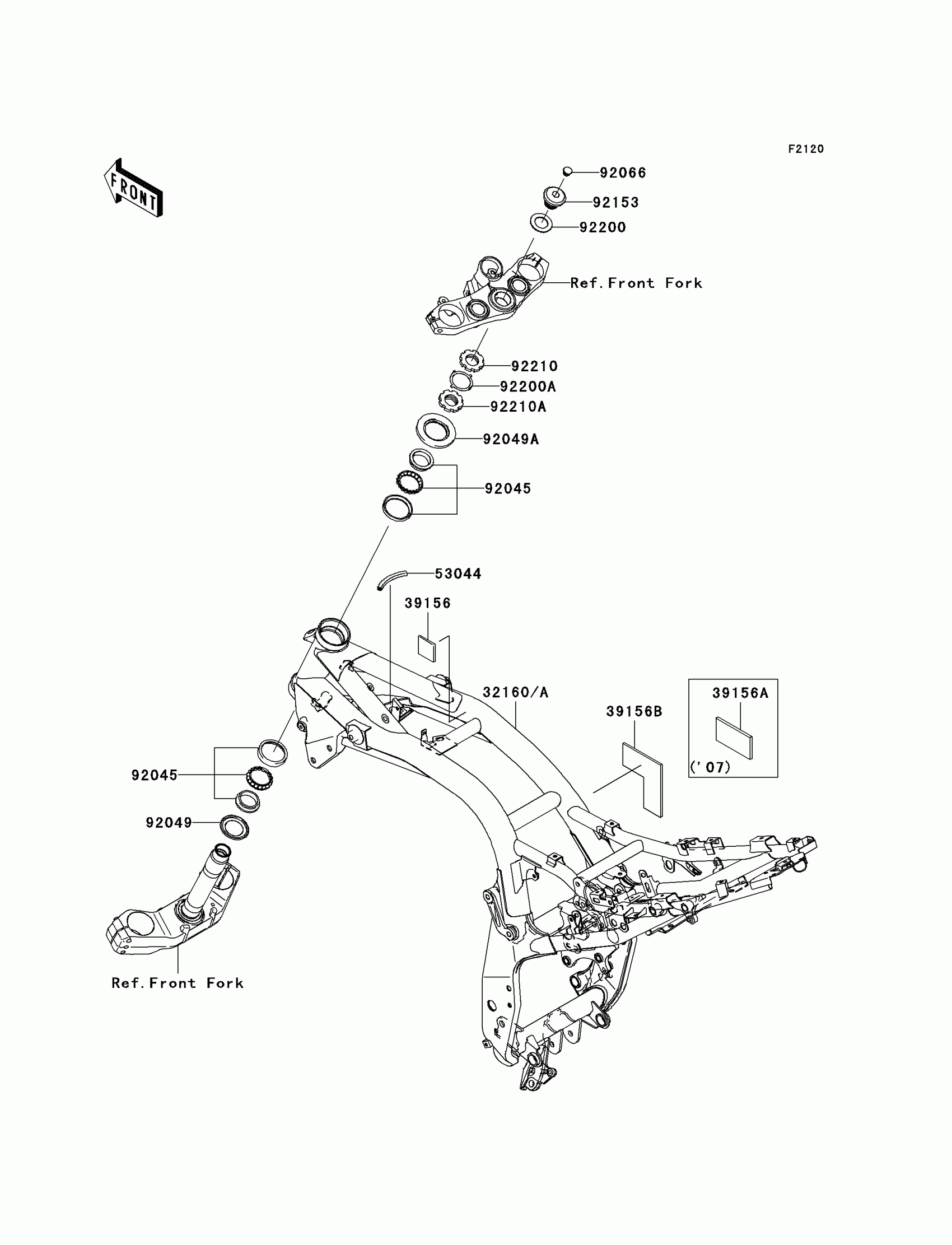

Kawasaki Z1000 (European) Frame Diagram

Description

Price

32160A

FRAME-COMP,BLACK

32160-0263-18R

$2,170.81

39156

PAD

39156-0292

$3.35

39156B

PAD

39156-0343

$8.94

53044

TRIM

53044-0018

$4.65

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$45.69

92049

SEAL-OIL,DS35X55X4

92049-0022

$17.39

92049A

SEAL-OIL,MX043N2

92049-1483

$20.39

92066

PLUG

92066-0071

$3.35

92153

BOLT,26MM

92153-0474

$28.76

92200

WASHER,27X42X2.3

92200-0081

$3.74

92200A

WASHER

92200-0281

$3.90

92210

NUT,STEERING STEM 35MM

92210-0062

$13.18

92210A

NUT,STEERING STEM,35MM

92210-0077

$18.37
