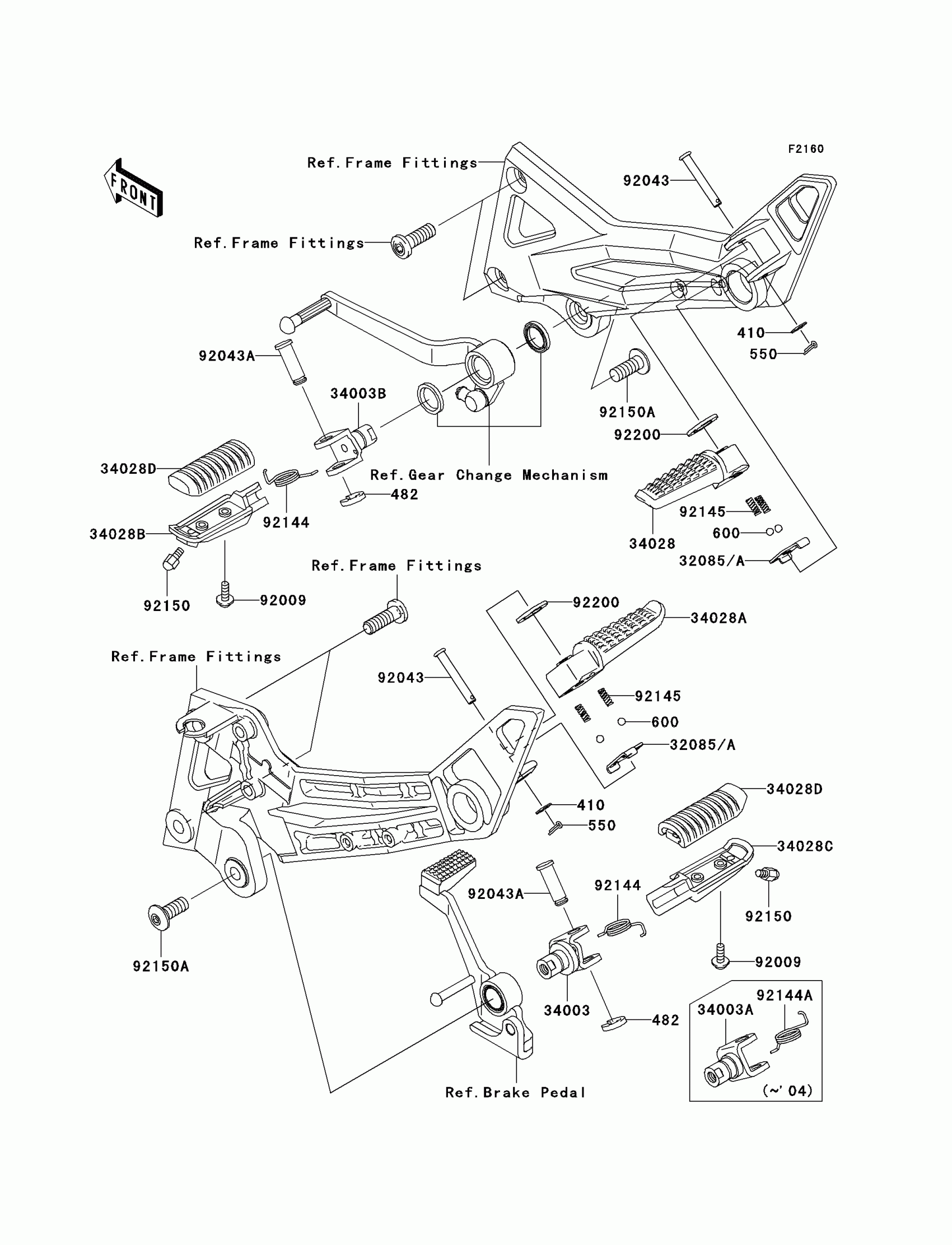

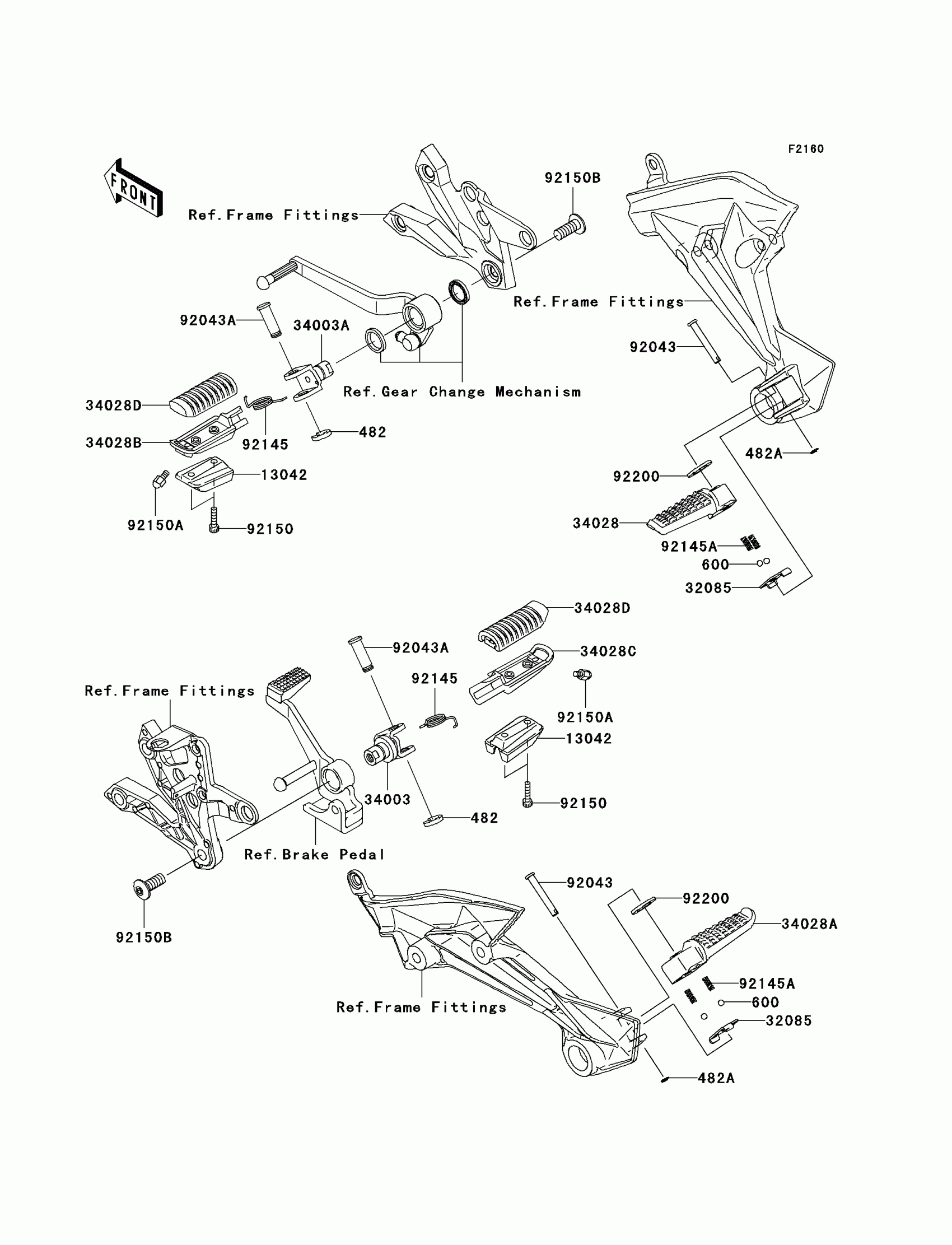

Kawasaki Z1000 (European) Footrests Diagram

Description

Price

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.66

550

PIN-COTTER

550D2512

Unavailable

600

BALL-STEEL,1/4

600A0800

$0.59

32085A

STOPPER,REAR STEP

32085-0047

$4.23

34003

HOLDER-STEP,FR,RH

34003-0025

$44.76

34003B

HOLDER-STEP,FR,LH

34003-1474

$46.99

34028

STEP,RR,LH

34028-0004

$73.38

34028A

STEP,RR,RH

34028-0005

$73.38

34028B

STEP,FR,LH

34028-1428

$46.40

34028C

STEP,FR,RH

34028-1429

$46.40

34028D

STEP,RUBBER

34028-1430

$18.36

92009

SCREW,5X14

92009-1404

$3.01

92043

PIN,6X43

92043-0019

$2.56

92043A

PIN,12X37

92043-1641

Unavailable

92144

SPRING,STEP RETURN

92144-1567

$4.88

92145

SPRING

92145-1319

$1.33

92150

BOLT,BANK SENSOR

92150-1114

$10.93

92150A

BOLT,SOCKET,10X25

92150-1268

$4.67

92200

WASHER,16X26X2.3

92200-0043

$5.84
