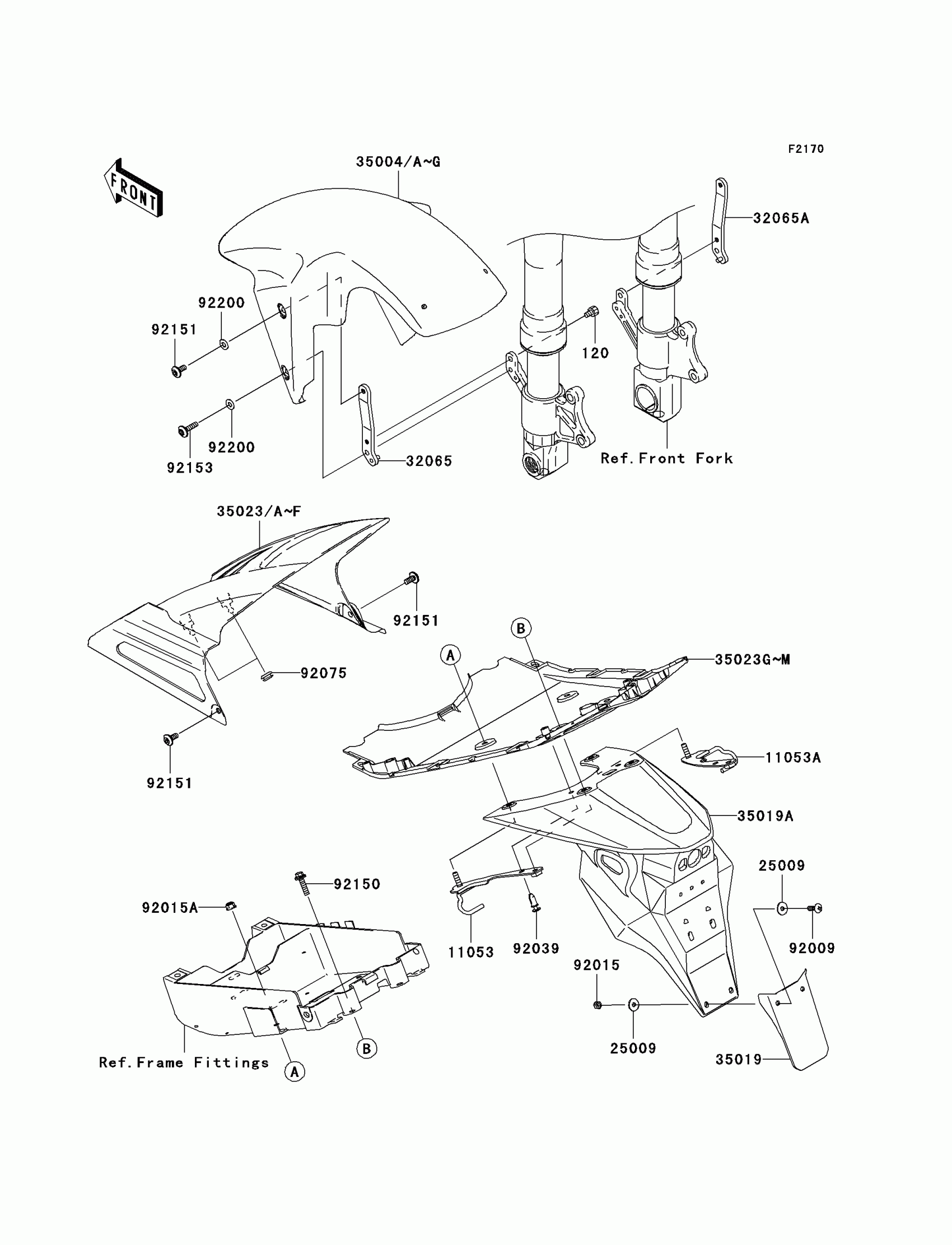

Kawasaki Z1000 (European) Fenders Diagram

#

Description
Price

120

BOLT-SOCKET,6X10

120S0610

$2.33

11053

BRACKET,FLAP,LH

11053-1144

Unavailable

11053A

BRACKET,FLAP,RH

11053-1150

Unavailable

25009

WASHER,5.2X16X1.2

25009-004

$3.65

32065

BRACKET-FENDER,LH

32065-1376

$26.84

32065A

BRACKET-FENDER,RH

32065-1377

$26.84

35004B

FENDER-FRONT,M.S.BLACK

35004-0024-660

$194.11

35004C

FENDER-FRONT,TITANIUM

35004-0024-725

$211.23

35004D

FENDER-FRONT,L.GREEN

35004-0024-777

Unavailable

35019

FLAP

35019-0006

$12.48

35019A

FLAP,REAR FENDER

35019-0007

$69.38

35023B

FENDER-REAR,INNER,L.GREEN

35023-1597-290

Unavailable

35023D

FENDER-REAR,INNER,EBONY

35023-1597-6C

$252.36

35023F

FENDER-REAR,INNER,TITANIUM

35023-1597-725

$251.21

35023J

FENDER-REAR,CNT,M.S.BLACK

35023-1602-660

Unavailable

35023L

FENDER-REAR,CNT,TITANIUM

35023-1602-725

$164.07

35023M

FENDER-REAR,CNT,L.GREEN

35023-1602-777

Unavailable

92009

SCREW,5X14

92009-1653

$3.96

92015

NUT,LOCK,5MM

92015-1221

$6.22

92015A

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69

92039

RIVET

92039-1286

$3.04

92075

DAMPER,6X16X7

92075-1011

$7.33

92150

BOLT,6X25

92150-1829

$4.31

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92153

BOLT,SOCKET,6X23

92153-1267

$2.80

92200

WASHER,6.5X14X1

92200-1388

$2.46
