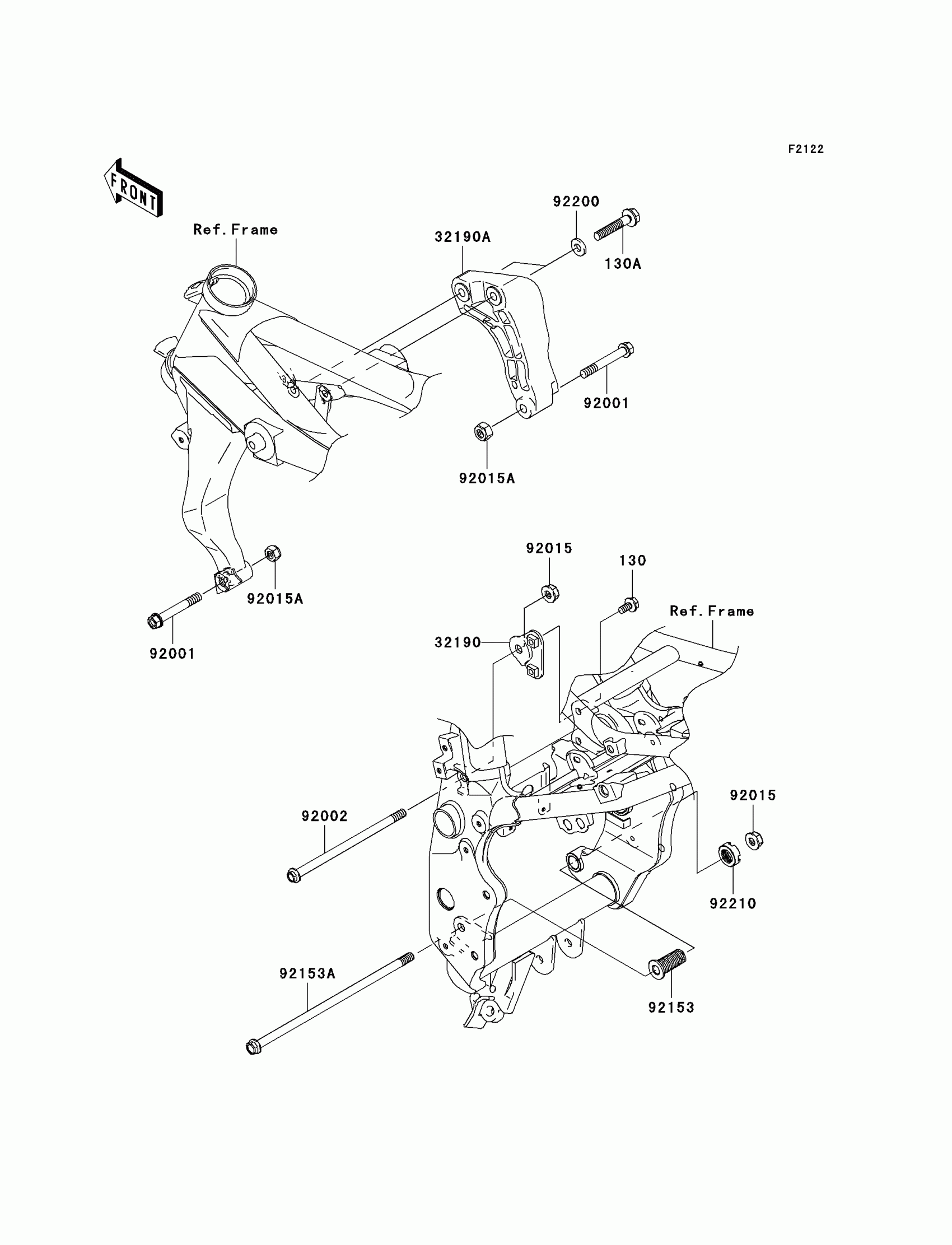

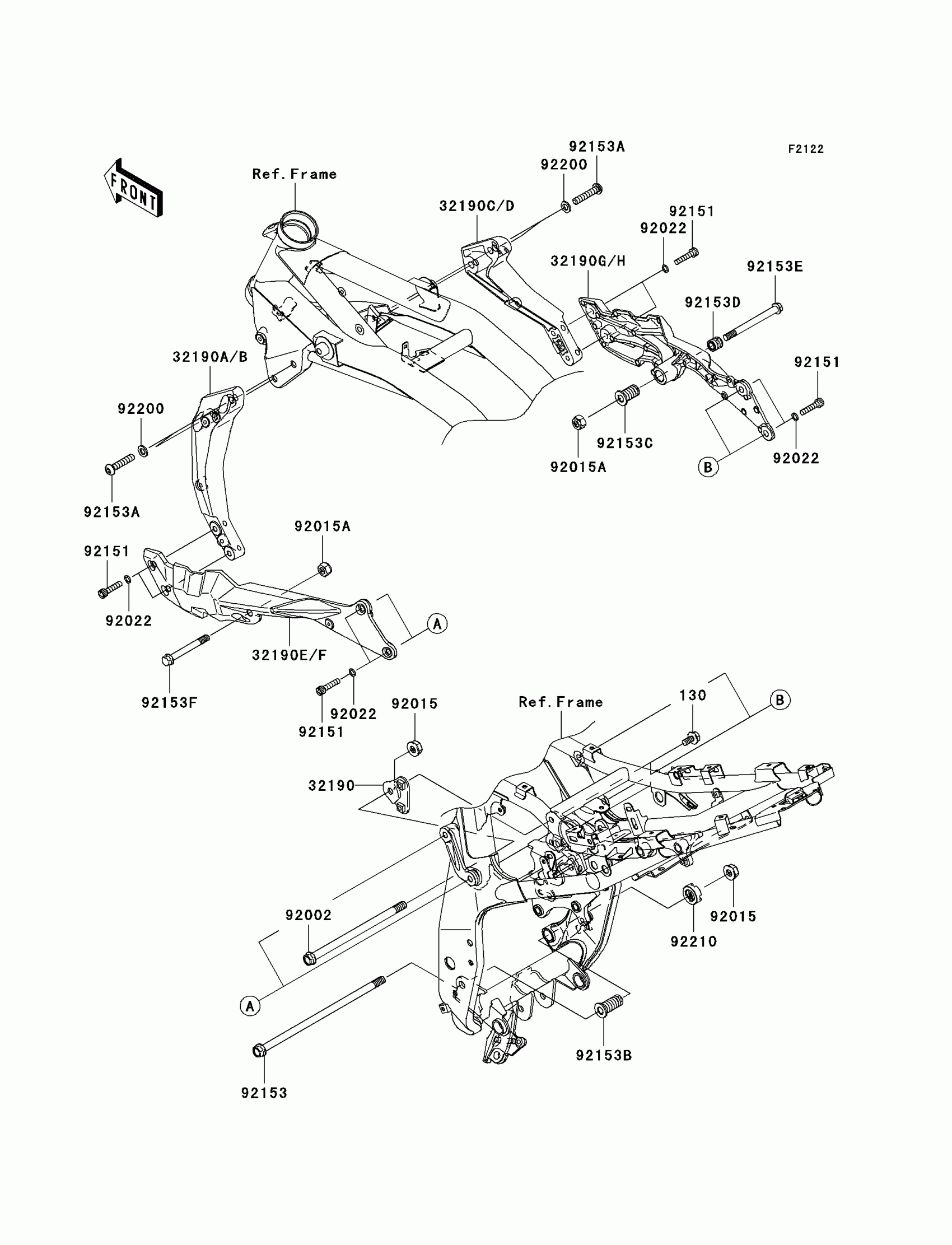

Kawasaki Z1000 (European) Engine Mount Diagram

Description

Price

130

BOLT-FLANGED,8X16

130BB0816

$1.71

32190

BRACKET-ENGINE,RR,RH,UPP

32190-0009

$11.91

32190B

BRACKET-ENGINE,FR,LH,BLACK

32190-0248-18R

$180.50

32190D

BRACKET-ENGINE,FR,RH,BLACK

32190-0249-18R

$180.50

32190F

BRACKET-ENGINE,RR,LH,BLACK

32190-0250-18R

$222.61

32190H

BRACKET-ENGINE,RR,RH,BLACK

32190-0251-18R

$222.61

92002

BOLT,10X183

92002-1337

$15.74

92015

NUT,FLANGED,10MM

92015-1180

$4.31

92015A

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92022

WASHER,8.5X13X1

92022-1028

$3.92

92151

BOLT,SOCKET,8X35

92151-1535

$3.35

92153

BOLT,FLANGED,10X240

92153-0559

$29.45

92153A

BOLT,SOCKET,10X50

92153-0858

$6.81

92153B

BOLT,ENGINE MOUNT,18MM

92153-1098

$24.58

92153C

BOLT,ENGINE MOUNT,18MM

92153-1818

$26.51

92153D

BOLT,ENGINE MOUNT,18MM

92153-1819

$21.71

92153E

BOLT,FLANGED,10X113

92153-1820

$16.23

92153F

BOLT,FLANGED,10X85

92153-1899

$12.74

92200

WASHER,10.5X19X2.3

92200-1042

$3.92

92210

NUT,18MM

92210-1203

$17.76
