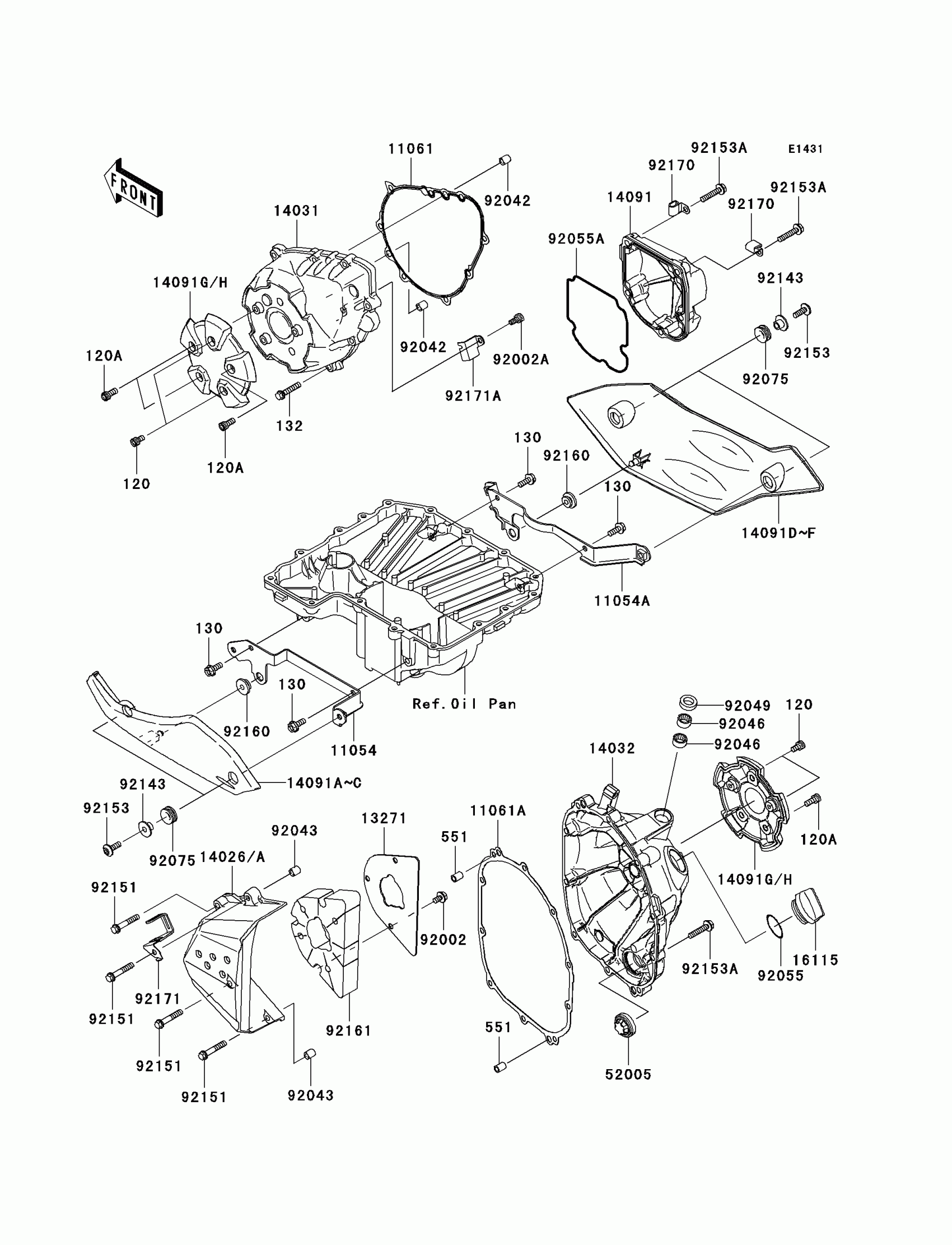

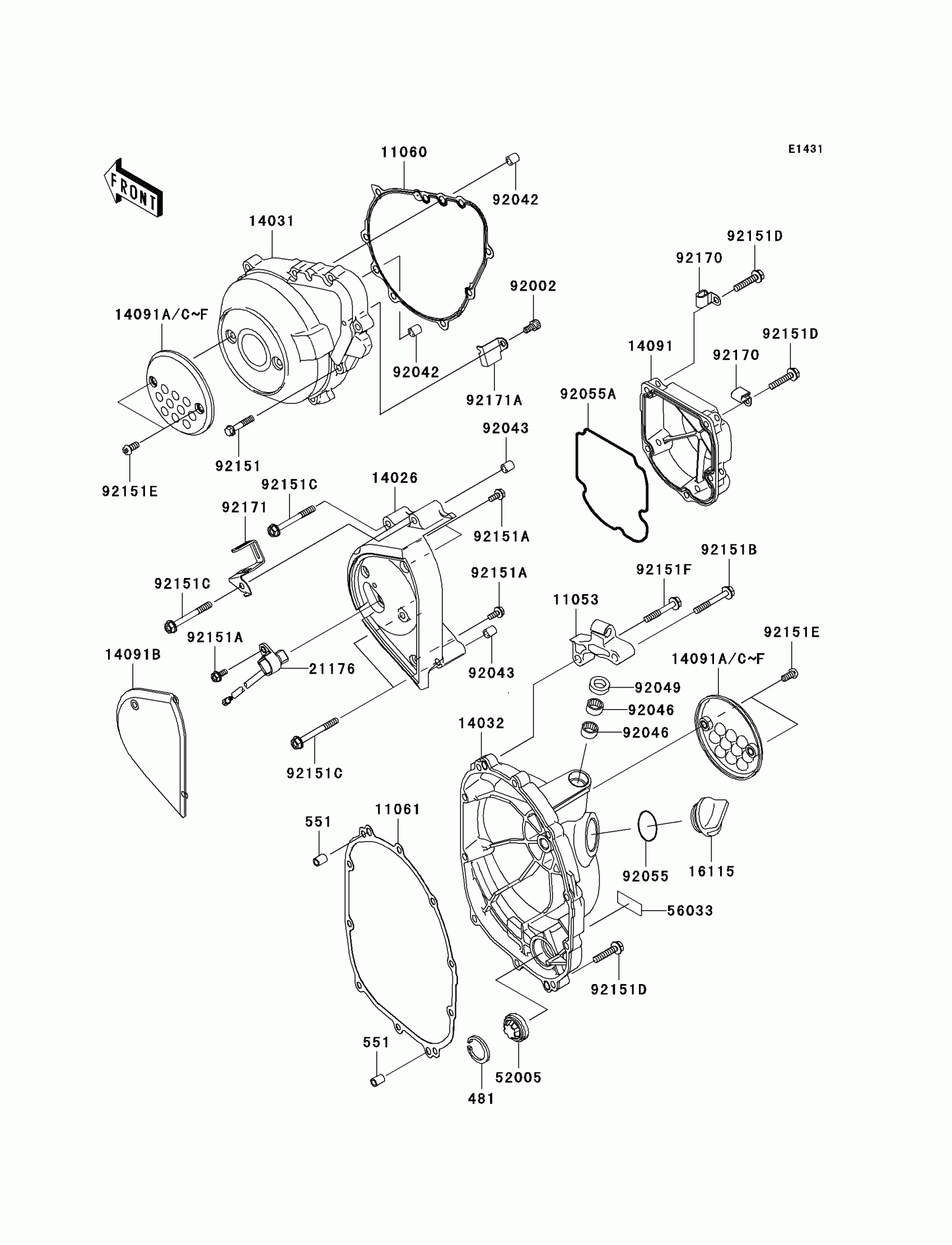

Kawasaki Z1000 (European) Engine Cover(s) Diagram

#

Description
Price

481

CIRCLIP-TYPE-C,30MM

481J3000

$1.42

551

PIN-DOWEL,8X14

551A0814

$1.19

11053

BRACKET,CLUTH CABLE

11053-1069

$33.99

11060

GASKET,GENERATOR COVER

11060-1854

$28.73

11061

GASKET,CLUTCH COVER

11061-1166

$32.18

14026

COVER-CHAIN

14026-1293

$250.94

14031

COVER-GENERATOR

14031-1403

$267.87

14032

COVER-CLUTCH

14032-1542

$291.29

14091

COVER,PULSE

14091-0083

$48.77

14091A

COVER,GENERATOR&CLUTCH,BLACK

14091-0214

$23.35

14091B

COVER,RELEASE

14091-1529

$68.11

14091D

COVER,GENERATOR&CLUTCH,GRAYSTO

14091-1530-298

$23.95

16115

CAP-OIL FILLER

16115-1009

$14.30

21176

SENSOR,SPEED

21176-0032

$131.52

52005

GAUGE

52005-1120

$22.80

56033

LABEL-MANUAL,OIL CAPACITY

56033-0022

$6.86

92002

BOLT,SOCKET,6X12

92002-1796

$4.69

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,8X16

92043-1322

$1.25

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$4.18

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

RING-O,PULSE COVER

92055-1570

$14.94

92151

BOLT,6X30

92151-1134

$2.15

92151A

BOLT,FLANGED,5X12

92151-1305

$1.59

92151B

BOLT,FLANGED,6X45

92151-1521

$2.15

92151C

BOLT,FLANGED,6X55

92151-1540

$3.76

92151D

BOLT,6X30

92151-1547

Unavailable

92151E

BOLT,SOCKET,6X14

92151-1554

$2.61

92151F

BOLT,FLANGED,6X40

92151-1583

$2.75

92170

CLAMP

92170-1577

$3.83

92171

CLAMP

92171-0067

$15.71

92171A

CLAMP

92171-1566

$4.67
