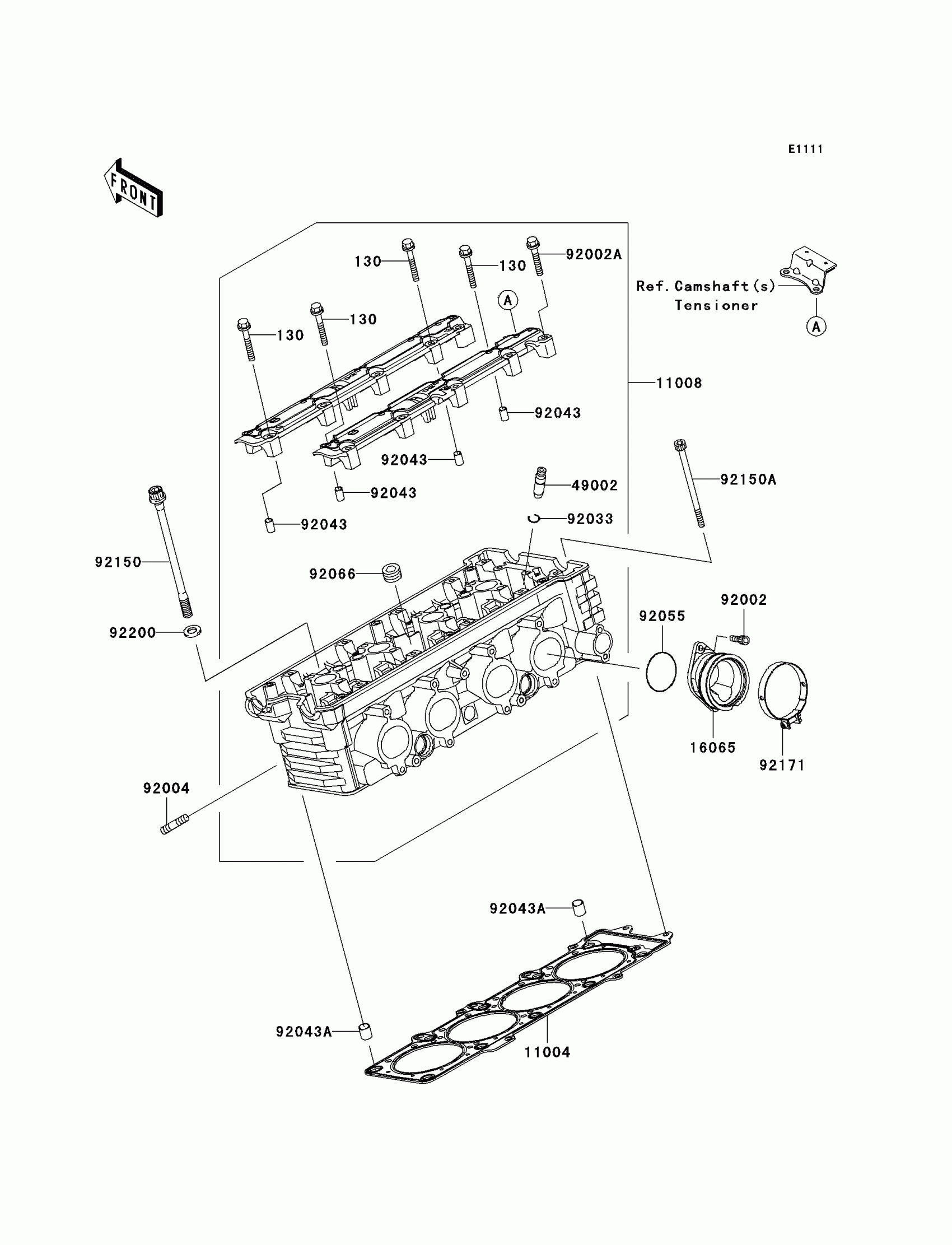

Kawasaki Z1000 (European) Cylinder Head Diagram

Description

Price

130

BOLT-FLANGED,6X45

130P0645

Unavailable

11004

GASKET-HEAD

11004-1385

$137.54

11008

HEAD-COMP-CYLINDER

11008-1433

$2,848.65

16065

HOLDER-CARBURETOR

16065-1387

$40.45

49002

GUIDE-VALVE

49002-1116

Unavailable

92002

BOLT,6X16

92002-1143

$3.92

92002A

BOLT,6X40

92002-1756

$4.69

92004

STUD,8X22

92004-1249

$3.87

92033

RING-SNAP

92033-1247

$3.91

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN,10.1X12X14

92043-4009

$6.22

92055

RING-O,43.7X1.9

92055-1401

$13.75

92066

PLUG,PT1/2X12.5

92066-0002

$8.98

92150

BOLT,10X165

92150-1368

$18.89

92150A

BOLT,SOCKET,6X110

92150-1755

$11.10

92171

CLAMP

92171-1552

$16.41

92200

WASHER,10.5X19X2.3

92200-1042

$3.92
