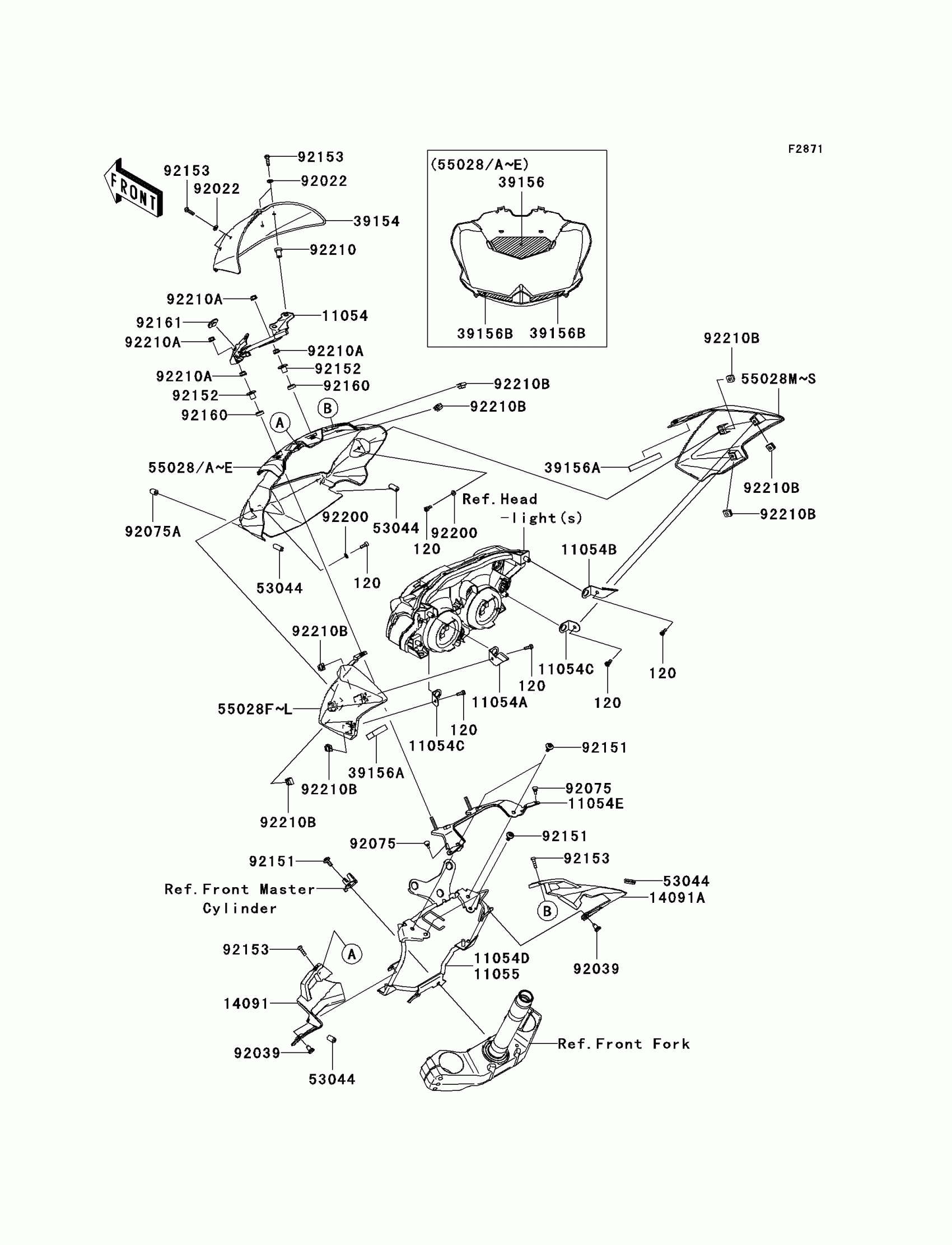

Kawasaki Z1000 (European) Cowling Diagram
#
11054
BRACKET,WINDSHIELD
11054-0844
$100.07
11054A
BRACKET,HEAD LAMP,UPP,LH
11054-0871
$8.65
11054B
BRACKET,HEAD LAMP,UPP,RH
11054-0872
$8.65
11054C
BRACKET,HEAD LAMP,LWR
11054-0873
$8.65
11054E
BRACKET,UPP COWLING
11054-1880
$86.61
11055
BRACKET,UPP COWLING
11055-0089
$475.66
14091
COVER,INNER,LH
14091-0569
$41.90
14091A
COVER,INNER,RH
14091-0663
$41.90
39154
WINDSHIELD
39154-0020
$185.11
39156
PAD,UPP COWLING
39156-0338
$20.85
39156A
PAD,UPP COWLING
39156-0339
$4.28
39156B
PAD,UPP COWLING
39156-0340
$4.69
53044
TRIM,L=20
53044-0021
$3.39
55028
COWLING,UPP,CNT,EBONY
55028-0102-H8
$314.32
55028B
COWLING,UPP,CNT,M.BLACK
55028-0102-17K
$314.32
55028F
COWLING,UPP,LH,EBONY
55028-0103-H8
$102.23
55028I
COWLING,UPP,LH,C.B.ORANGE
55028-0103-17L
$102.23
55028J
COWLING,UPP,LH,P.C.WHITE
55028-0103-667
$102.27
55028M
COWLING,UPP,RH,EBONY
55028-0104-H8
$102.23
55028P
COWLING,UPP,RH,C.B.ORANGE
55028-0104-17L
$102.23
55028Q
COWLING,UPP,RH,P.C.WHITE
55028-0104-667
$102.27
92022
WASHER,NYLON,5.3X11.5X1.5
92022-1521
$3.92
92039
RIVET
92039-1286
$3.04
92075
DAMPER,6X10X15
92075-1808
$1.39
92075A
DAMPER
92075-1964
$5.00
120
BOLT-SOCKET,5X12
120CB0512
$1.76
92151
BOLT,SOCKET,6X14
92151-1654
$1.83
92152
COLLAR
92152-1074
$6.22
92153
BOLT,SOCKET,5X18
92153-0370
$1.94
92160
DAMPER
92160-3754
$3.09
92161
DAMPER,RUBBER
92161-1200
$4.20
92200
WASHER,NYLON,5.3X11.5X0.5
92200-1480
$1.59
92210
NUT,5MM
92210-0001
$6.18
92210A
NUT,6MM
92210-0188
$2.15
92210B
NUT,5MM
92210-1266
$7.38
