Description

Price

13087

HUB-CLUTCH

13087-0050

$163.56

13088

PLATE-FRICTION

13088-1124

$18.35

13089

PLATE-CLUTCH,T=2.0

13089-1073

Unavailable

13089A

PLATE-CLUTCH,T=2.3

13089-1084

$12.80

13089B

PLATE-CLUTCH,T=2.6

13089-1115

Unavailable

13095A

HOUSING-COMP-CLUTCH

13095-0109

$586.21

13102

RELEASE-COMP-CLUTCH

13102-1162

$68.40

13187

PLATE-CLUTCH OPERATING

13187-1083

$49.36

46102

ROD

46102-0083

$55.62

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,20.3X36X3.7

92022-1868

$9.51

92025

SHIM,15.3X27.5X1.20

92025-1137

$8.58

92026

SPACER,25.5X47X2.5

92026-022

$9.91

92026A

SPACER

92026-1497

$11.28

92046

BEARING-NEEDLE,AXK1102

92046-1052

$14.47

92046A

BEARING-NEEDLE,K38X43X28.8X

92046-1263

$28.68

92139

BUSHING,25X38X29.05

92139-0067

$37.06

92144

SPRING,FRICTION PLATE

92144-1854

$8.90

92145

SPRING,CLUTCH RELEASE

92145-0066

$7.56

92145B

SPRING,CLUTCH

92145-0691

$8.76

92154

BOLT,6X50

92154-0176

$4.71

92200

WASHER,FRICTION PLATE

92200-1260

$10.28

92200A

WASHER,12X18.5X0.5

92200-1487

$2.75

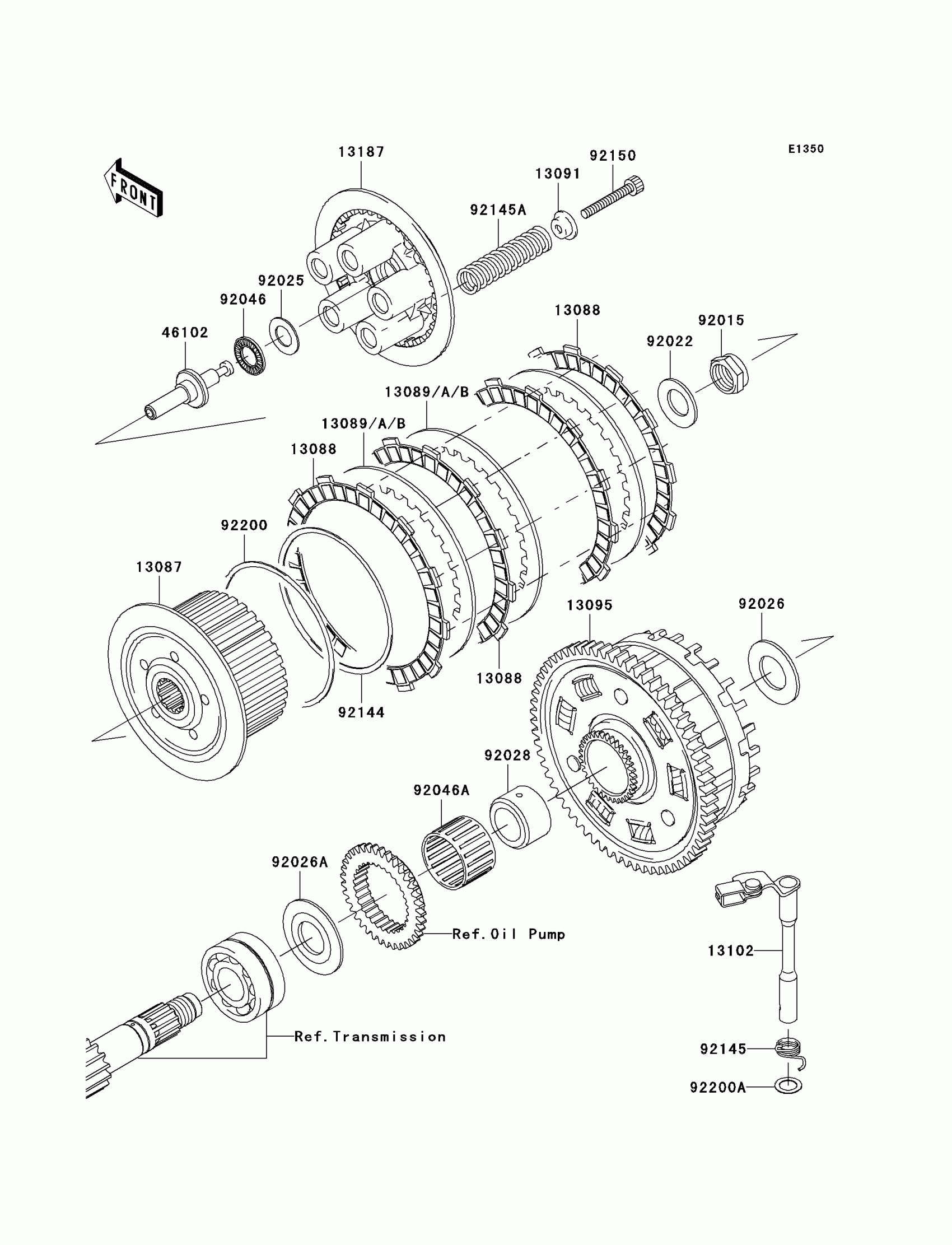

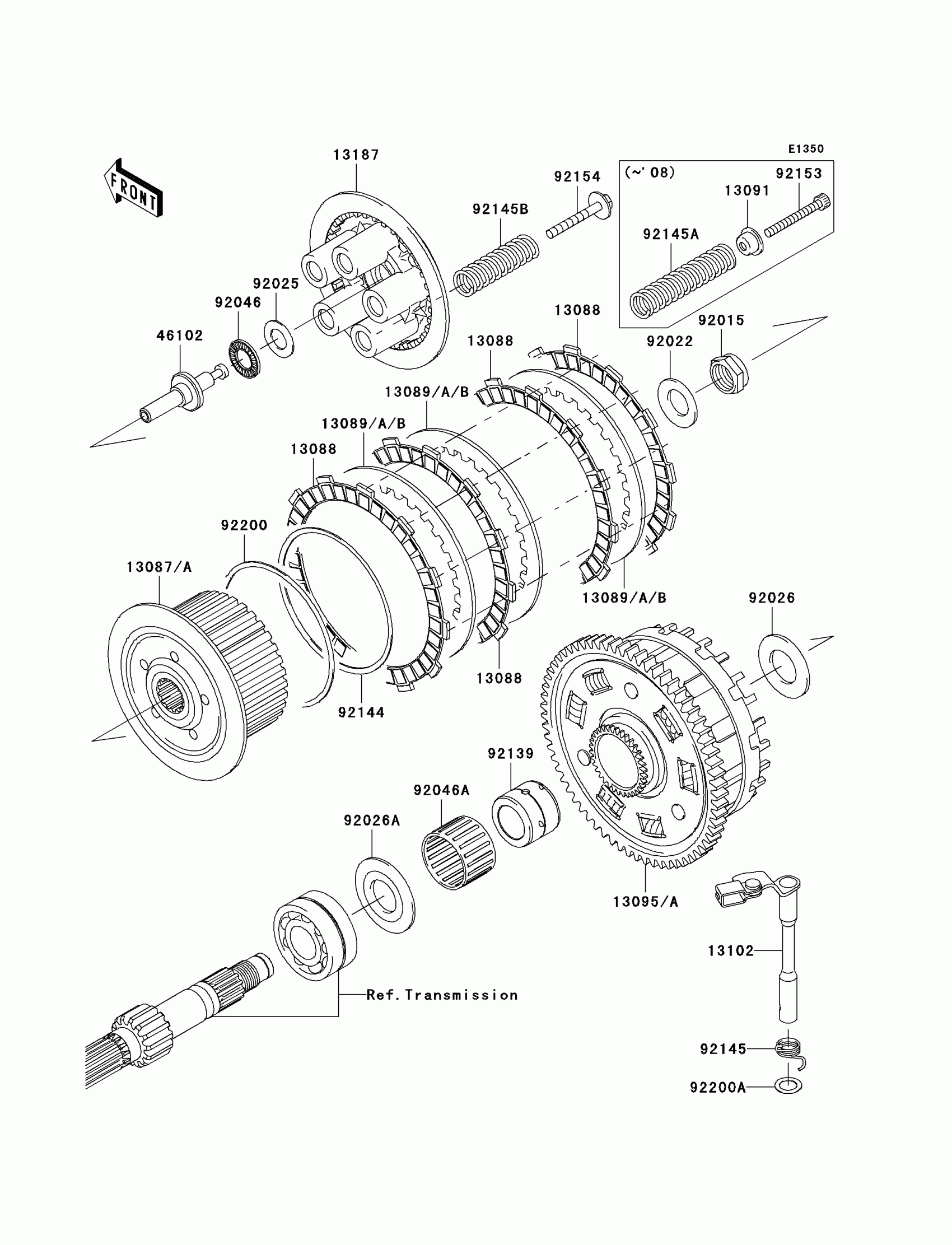

Kawasaki Z1000 (European) Clutch Diagram
