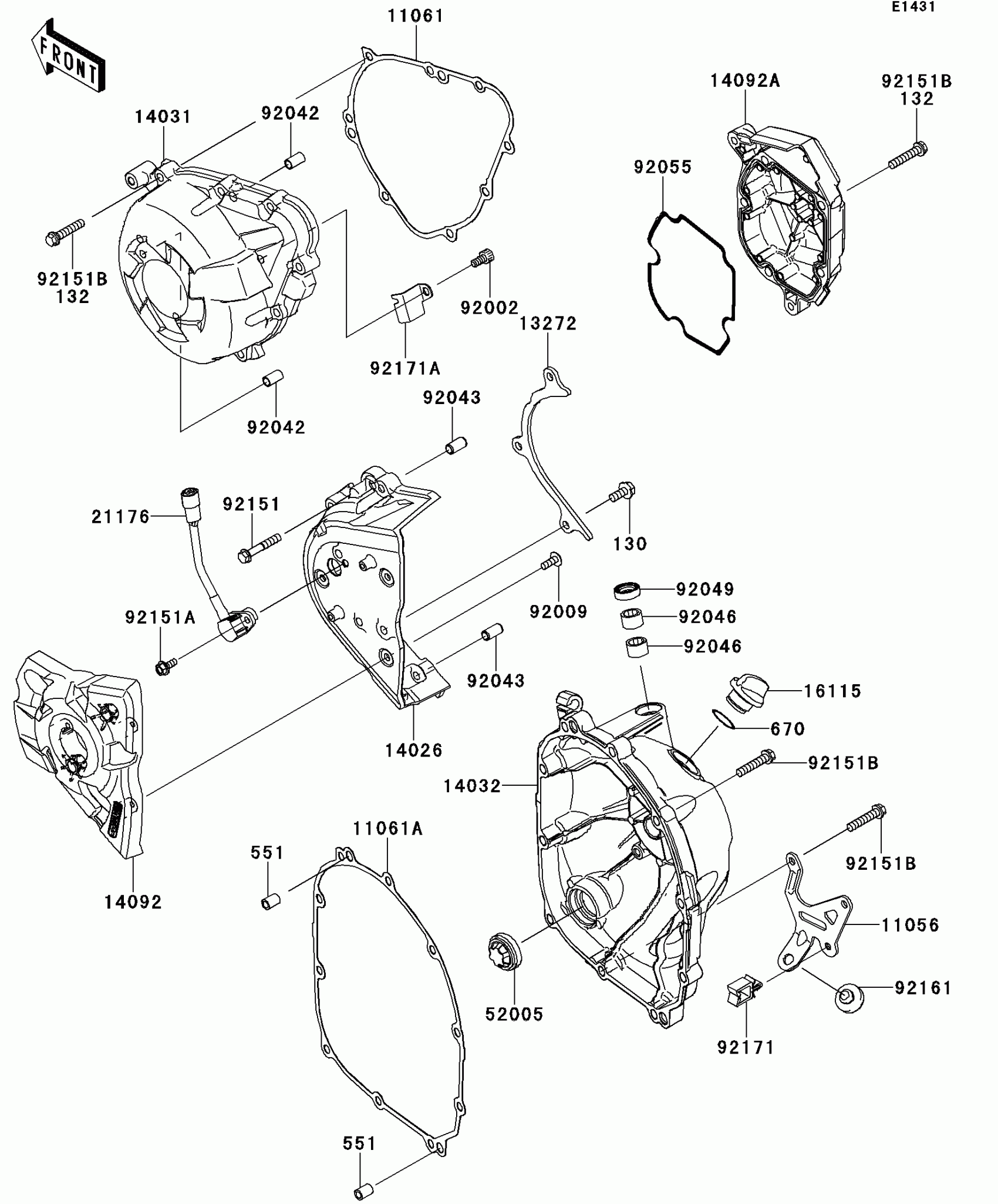

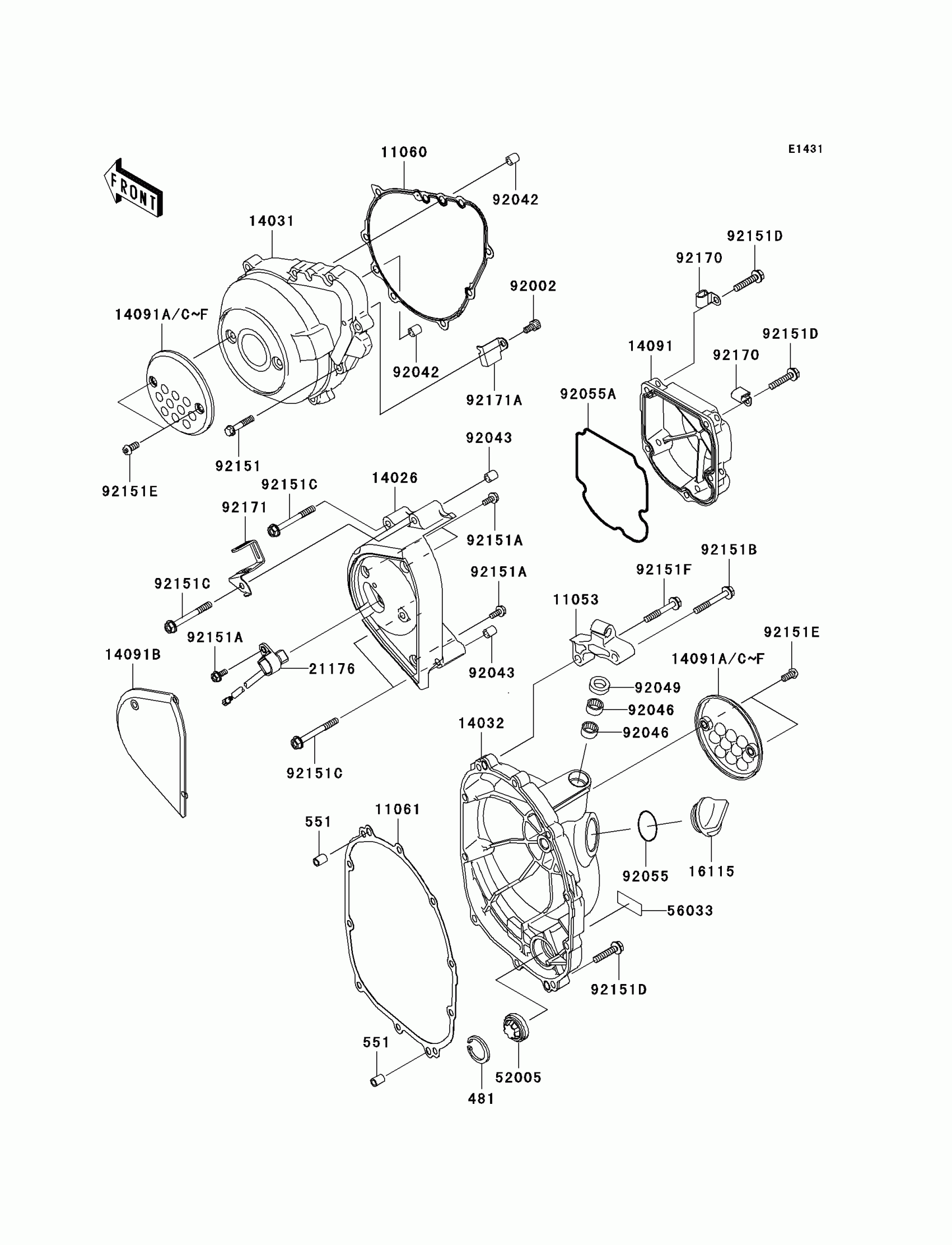

Kawasaki Z1000 Engine Cover(s) Diagram
#
Description
Price
11056
BRACKET
11056-0196
$8.45
11061
GASKET,GENERATOR COVER
11061-0403
$17.63
11061A
GASKET,CLUTCH COVER
11061-0404
$23.78
13272
PLATE
13272-0859
$15.62
14026
COVER-CHAIN
14026-0080
$168.26
14031
COVER-GENERATOR
14031-0131
$244.00
14032
COVER-CLUTCH
14032-0140
Unavailable
14092
COVER,OUTER
14092-0032
$15.47
14092A
COVER,PULSER
14092-0175
$59.30
16115
CAP-OIL FILLER
16115-1053
$12.20
21176
SENSOR,SPEED
21176-0045
$131.52
52005
GAUGE
52005-1120
$22.80
92002
BOLT,SOCKET,6X12
92002-1796
$4.69
92009
SCREW,TAPPING,5X14
92009-1197
$3.92
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92043
PIN,6.2X8X14
92043-1263
$0.43
92046
BEARING-NEEDLE,HK1210FM
92046-0034
$15.63
92049
SEAL-OIL,CLUTCH RELEASE
92049-1475
$4.18
92055
RING-O,PULSER COVER
92055-0199
$9.58
92151
BOLT,6X35
92151-1135
$4.18
92151A
BOLT,FLANGED,5X12
92151-1305
$1.59
92151B
BOLT,6X30
92151-1873
$4.67
92161
DAMPER,8X22X6
92161-0516
$27.22
92171
CLAMP
92171-0290
$3.73
92171A
CLAMP
92171-0708
$4.09
130
BOLT-FLANGED,6X14
130BA0614
$1.20
551
PIN-DOWEL,8X14
551A0814
$1.19
670
O RING,20MM
670B2020
$1.22
