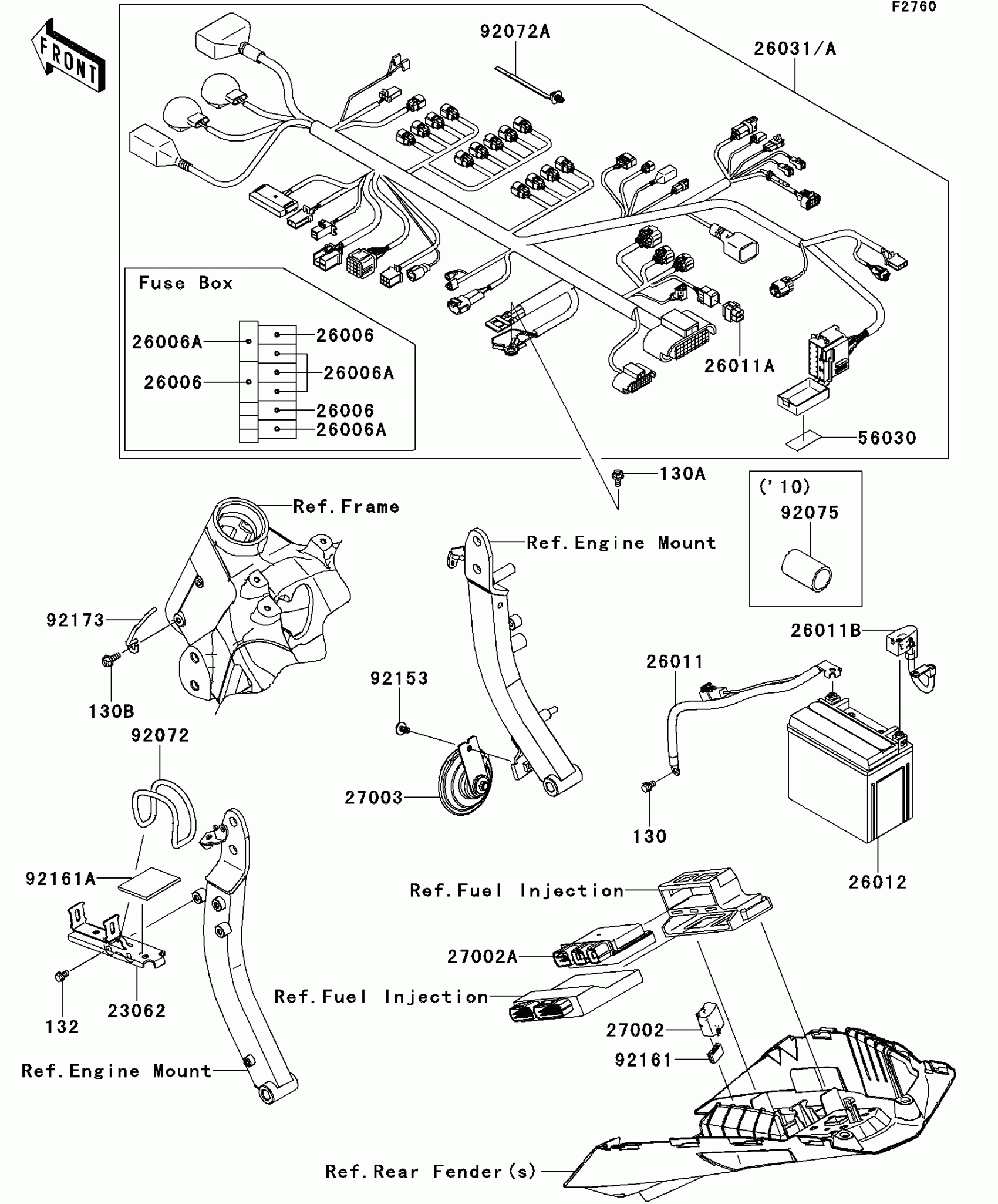

Kawasaki Z1000 Chassis Electrical Equipment Diagram

Description

Price

23062

BRACKET-COMP

23062-0117

$30.24

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26011

WIRE-LEAD,BATTERY(-)

26011-0253

$45.50

26011A

WIRE-LEAD,CAP

26011-0271

$14.74

26011B

WIRE-LEAD,BATTERY(+)

26011-0285

$43.83

26012

BATTERY,YTX9-BS,12V 8AH

26012-0088

Unavailable

26031A

HARNESS,MAIN

26031-1213

Unavailable

27002

RELAY-ASSY,SIGNAL LAMP

27002-0005

$86.75

27002A

RELAY-ASSY

27002-0007

Unavailable

27003

HORN

27003-0066

$73.16

56030

LABEL,FUSE BOX

56030-0361

$4.49

92072

BAND,79.6X5.7

92072-0118

Unavailable

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92153

BOLT,SOCKET,6X12

92153-1948

$1.78

92161

DAMPER,SIGNAL RELAY

92161-0283

$2.97

92161A

DAMPER,39X45X3

92161-1360

$4.01

92173

CLAMP

92173-0182

$7.58

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X12

130BA0612

$1.72

130B

BOLT-FLANGED,6X16

130BA0616

$1.20

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71
