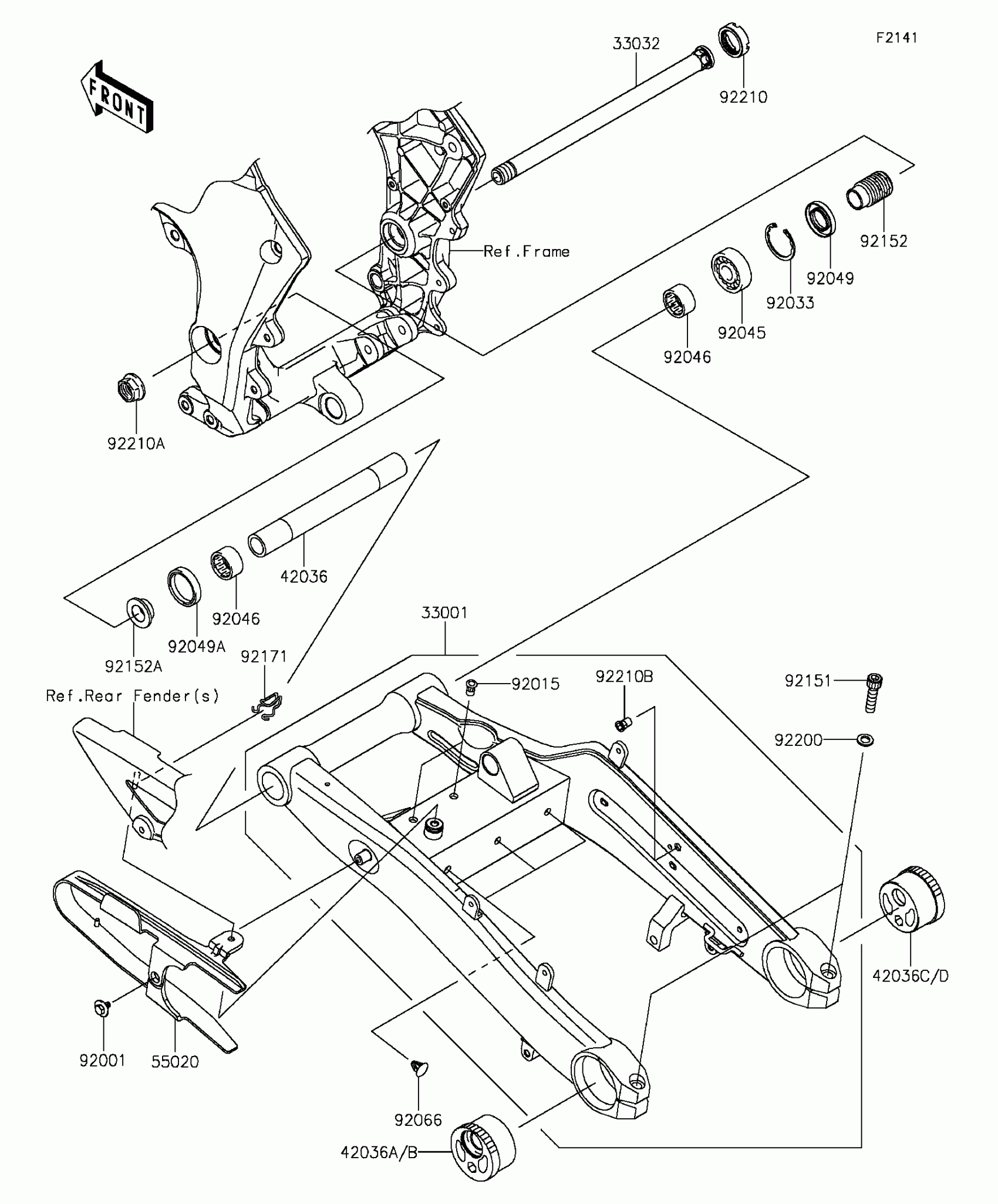

Kawasaki Z1000 ABS Swingarm Diagram
#
Description
Price
33001
ARM-COMP-SWING,F.S.BLACK
33001-0617-18R
$1,024.29
33032
SHAFT-SWING ARM
33032-0013
Unavailable
42036
SLEEVE,20.1X28X226
42036-0069
$71.68
42036A
SLEEVE,REAR AXLE,LH,SILVER
42036-1153-KX
$104.88
42036B
SLEEVE,REAR AXLE,LH,A.BLACK
42036-1153-499
$109.14
42036C
SLEEVE,REAR AXLE,RH,SILVER
42036-1265-KX
$104.88
42036D
SLEEVE,REAR AXLE,RH,A.BLACK
42036-1265-499
$109.14
55020
GUARD,CHAIN
55020-0903
$74.82
92001
BOLT,6X12
92001-1771
$3.92
92015
NUT,POP,6MM,L=16.5
92015-1792
$4.69
92033
RING-SNAP,42MM
92033-1041
$6.16
92045
BEARING-BALL,6004UL11
92045-0017
$14.39
92046
BEARING-NEEDLE,7E-HVS 28X34X17
92046-0008
$21.54
92049
SEAL-OIL,MHSA25X42X6
92049-1314
$13.75
92049A
SEAL-OIL,MHSA25X34X7
92049-1352
$9.28
92066
PLUG,9MM
92066-0772
$1.47
92151
BOLT,SOCKET,10X40
92151-1899
$5.00
92152
COLLAR,SWING ARM,L=47
92152-0154
$37.14
92152A
COLLAR,SWING ARM,L=12.5
92152-1234
$8.97
92171
CLAMP
92171-0907
$10.30
92200
WASHER,10.5X18X2.0
92200-0531
$3.52
92210
NUT,30MM
92210-0134
$28.51
92210A
NUT,FLANGED,20MM
92210-0320
$11.93
92210B
NUT,POP,6MM,L=15
92210-1397
$5.48
