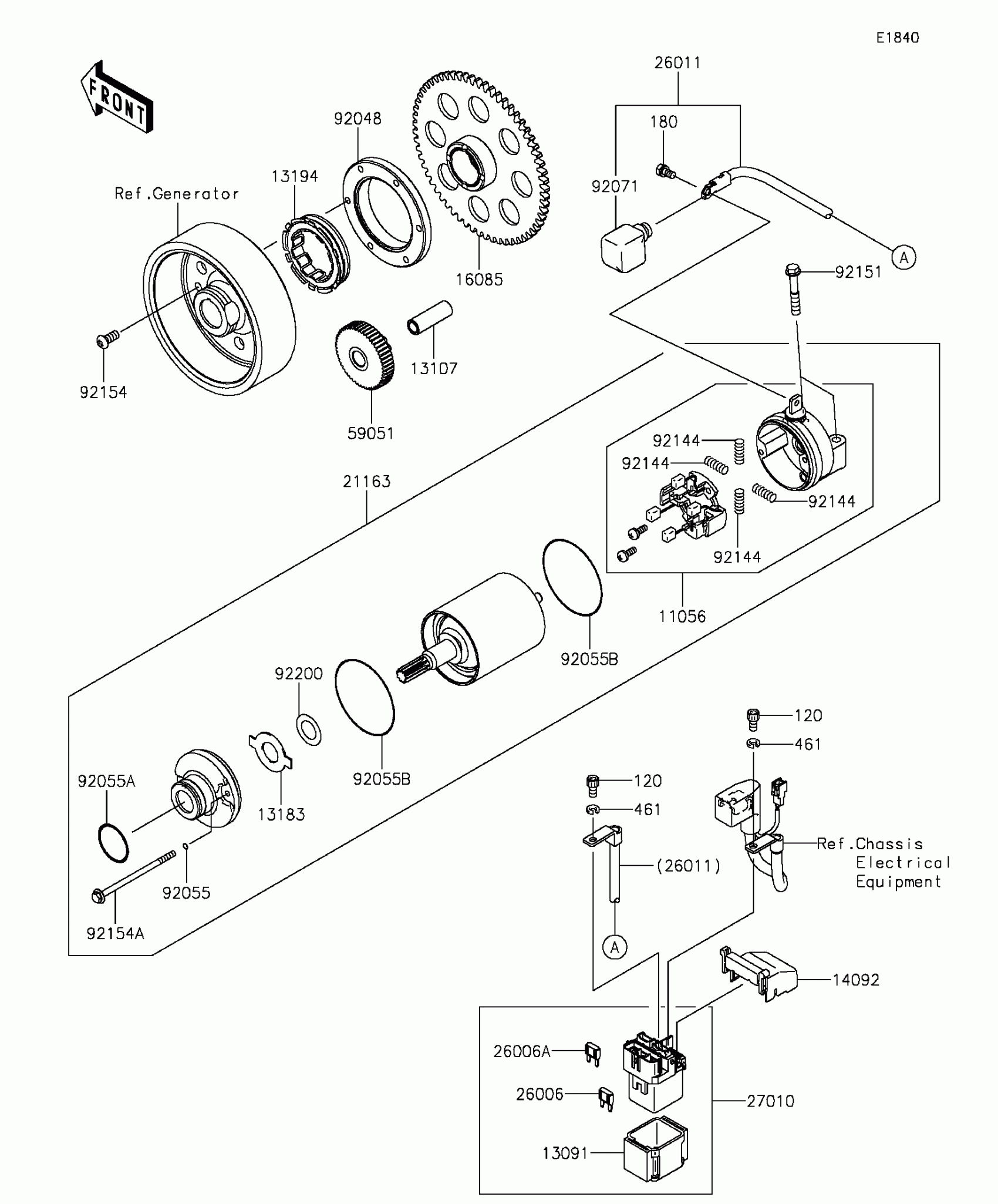

Kawasaki Z1000 ABS Starter Motor Diagram
#
Description
Price
11056
BRACKET
11056-2770
$324.04
120
BOLT-SOCKET,5X10
120CB0510
$1.64
13091
HOLDER,MAGNETIC SWITCH
13091-1884
$12.45
13107
SHAFT,IDLER GEAR
13107-1377
$6.22
13183
PLATE
13183-1460
$12.92
13194
CLUTCH-ONEWAY
13194-1096
$106.12
14092
COVER
14092-0109
$9.50
16085
GEAR,CLUTCH ONEWAY
16085-0609
$125.33
180
BOLT-UPSET-WS,5X10
180BA0510
$1.34
21163
STARTER-ELECTRIC
21163-0742
$654.06
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
$6.12
26006A
FUSE,MINI BLADE,30A,GREEN
26006-1080
$4.87
26011
WIRE-LEAD
26011-0820
$54.52
27010
SWITCH
27010-0770
$108.75
461
WASHER-SPRING,5MM
461DB0500
$1.50
59051
GEAR-SPUR,IDLER
59051-0741
$94.43
92048
RACE
92048-0018
$63.92
92055
RING-O,STARTER
92055-0013
$11.59
92055A
RING-O,24.4X3.1
92055-1262
$12.46
92055B
RING-O
92055-1455
$9.86
92071
GROMMET
92071-0031
$11.82
92144
SPRING,BRUSH
92144-1423
$4.14
92151
BOLT,6X35
92151-1624
$2.34
92154
BOLT,TORX,6X14
92154-1225
$1.71
92154A
BOLT,FLANGED
92154-1284
$10.30
92200
WASHER
92200-1019
$7.33
