2016 Kawasaki Z1000 ABS Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

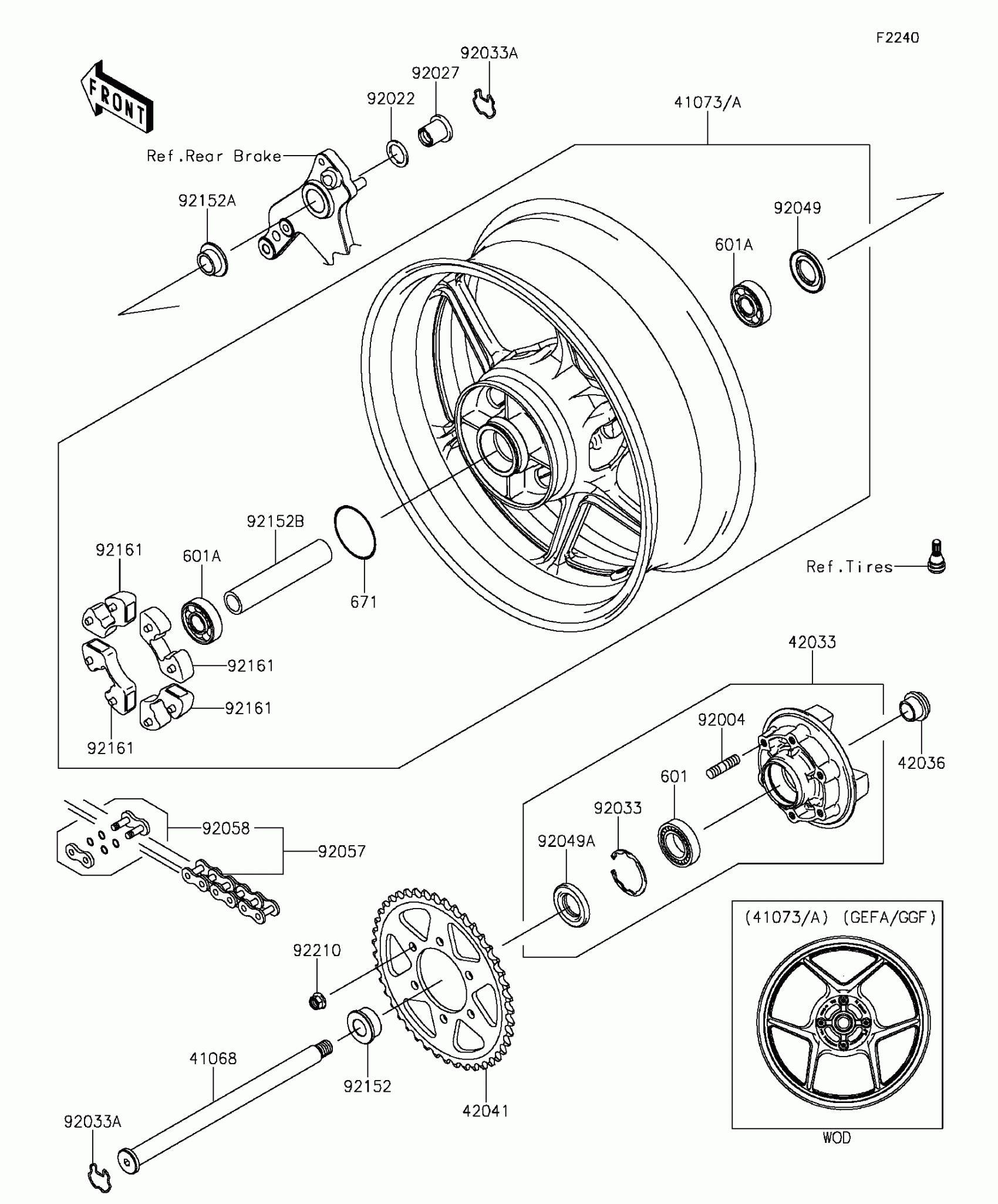

2016 Kawasaki Z1000 ABS Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,RR

41068-1354

1
Out of stock

41073A

WHEEL-ASSY,RR,G.BLACK

41073-0613-18F

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-0028

1
Out of stock

42036

SLEEVE,RR HUB,L=23

42036-1251

1
Out of stock

42041

SPROCKET-HUB,43T

42041-0127

1
Out of stock

601

BEARING-BALL

601B6205UU

1
Out of stock

601A

BEARING-BALL,#6304UUC3

601B6304UU

1
Out of stock

671

O RING,60MM

671B2560

1
Out of stock

92004

STUD,10X19

92004-0028

1
Out of stock

92022

WASHER,23X32X2.3

92022-1618

1
Out of stock

92027

COLLAR,RR AXLE,L=28

92027-1810

1
Out of stock

92033

RING-SNAP,52MM

92033-1043

1
Out of stock

92033A

RING-SNAP,RR AXLE

92033-1156

1
Out of stock

92049

SEAL-OIL,27X52X5

92049-0723

1
Out of stock

92049A

SEAL-OIL

92049-1287

1
Out of stock

92057

CHAIN,DRIVE,EK525ZX-112L

92057-0203

1
Out of stock

92058

JOINT-CHAIN,DRIVE

92058-0027

1
Out of stock

92152

COLLAR,RR AXLE,LH,L=18

92152-0118

1
Out of stock

92152A

COLLAR,RR AXLE,RH,20X28X14.5

92152-0876

1
Out of stock

92152B

COLLAR,RR HUB,20.2X28X144.5

92152-0892

1
Out of stock

92161

DAMPER,SHOCK,RR HUB

92161-0342

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock
