Description

Price

13127

SHAFT-TRANSMISSION INPUT

13127-0073

$305.37

13128

SHAFT-TRANSMISSION OUTPUT

13128-0054

$243.72

13144

SPROCKET-OUTPUT,15T

13144-0070

$41.45

13262

GEAR,INPUT 2ND,20T

13262-0753

Unavailable

13262A

GEAR,INPUT 5TH,21T

13262-0755

$163.74

13262B

GEAR,OUTPUT LOW,39T

13262-0757

$149.34

13262C

GEAR,OUTPUT 2ND,39T

13262-0778

$133.18

13262D

GEAR,OUTPUT 3RD,24T

13262-0779

$135.22

13262E

GEAR,OUTPUT 4TH,25T

13262-0780

$131.16

13262F

GEAR,INPUT 3RD&4TH,15T&18T

13262-0991

$219.94

13262J

GEAR,INPUT TOP,28T

13262-1196

$162.42

13262K

GEAR,OUTPUT TOP,31T

13262-1197

$246.18

13262L

GEAR,OUTPUT 5TH,26T

13262-1202

$181.28

92022

WASHER,20.5X30X1,STEEL

92022-112

$6.75

92028

BUSHING,OUTPUT,2ND

92028-1739

$24.03

92028A

BUSHING,INPUT TOP GEAR

92028-1915

$24.25

92033

RING-SNAP,20MM

92033-015

$3.25

92033A

RING-SNAP,24MM

92033-026

$6.70

92033B

RING-SNAP,T=1.5

92033-1249

$3.78

92045

BEARING-BALL,DAC2557NSSH

92045-0003

$107.07

92046

BEARING-NEEDLE,K20X24X13

92046-1219

$12.73

92046A

BEARING-NEEDLE,PK20X27X17X3

92046-1303

$19.71

92048

RACE

92048-0016

$33.11

92139

BUSHING,25X28X17.8

92139-0280

$35.46

92139A

BUSHING,OUTPUT,3RD&4TH

92139-0281

$43.86

92152

COLLAR,SPROCKET

92152-0812

$29.42

92200

WASHER,28.1X34.0X1.6

92200-0228

$25.78

92200A

WASHER,25.2X34.2X1.5

92200-0520

$7.15

92200B

WASHER,25.2X32X1

92200-0521

$7.92

92200D

WASHER,25.2X31.0X1.5

92200-1239

$7.71

92200E

WASHER,28.5X34.0X1.5

92200-1240

$7.83

92200F

WASHER,20.5X31X1.5

92200-1375

$4.17

92200G

WASHER,25.8X40.5X1.5

92200-1522

$4.29

92200H

WASHER,25.2X37.0X1.0

92200-1523

$4.78

92200I

WASHER

92200-1720

$2.75

600

BALL-STEEL,5/32

600A0500

$0.68

92210

NUT,20MM

92210-0850

$10.93

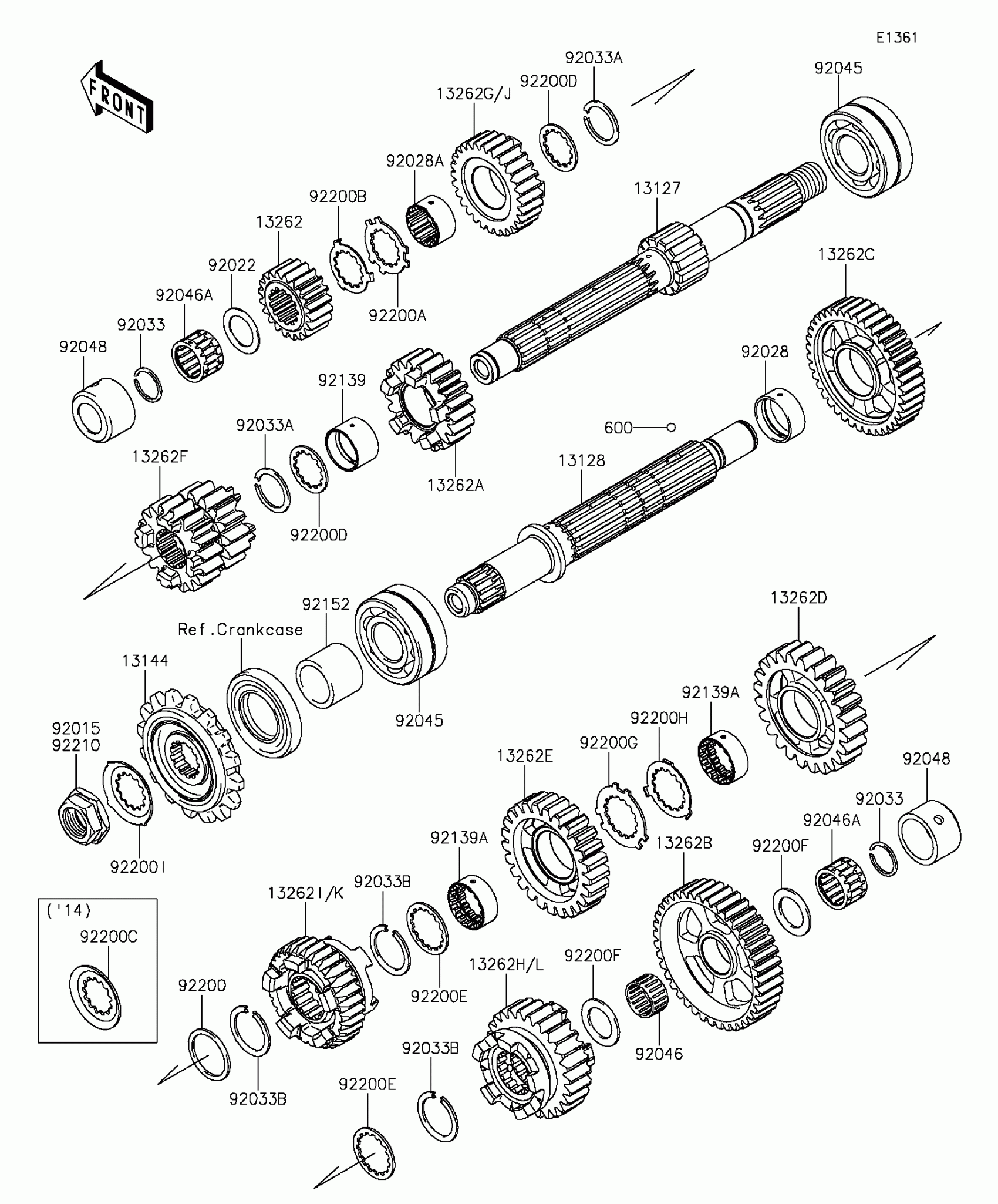

Kawasaki Z1000 ABS Transmission Diagram
