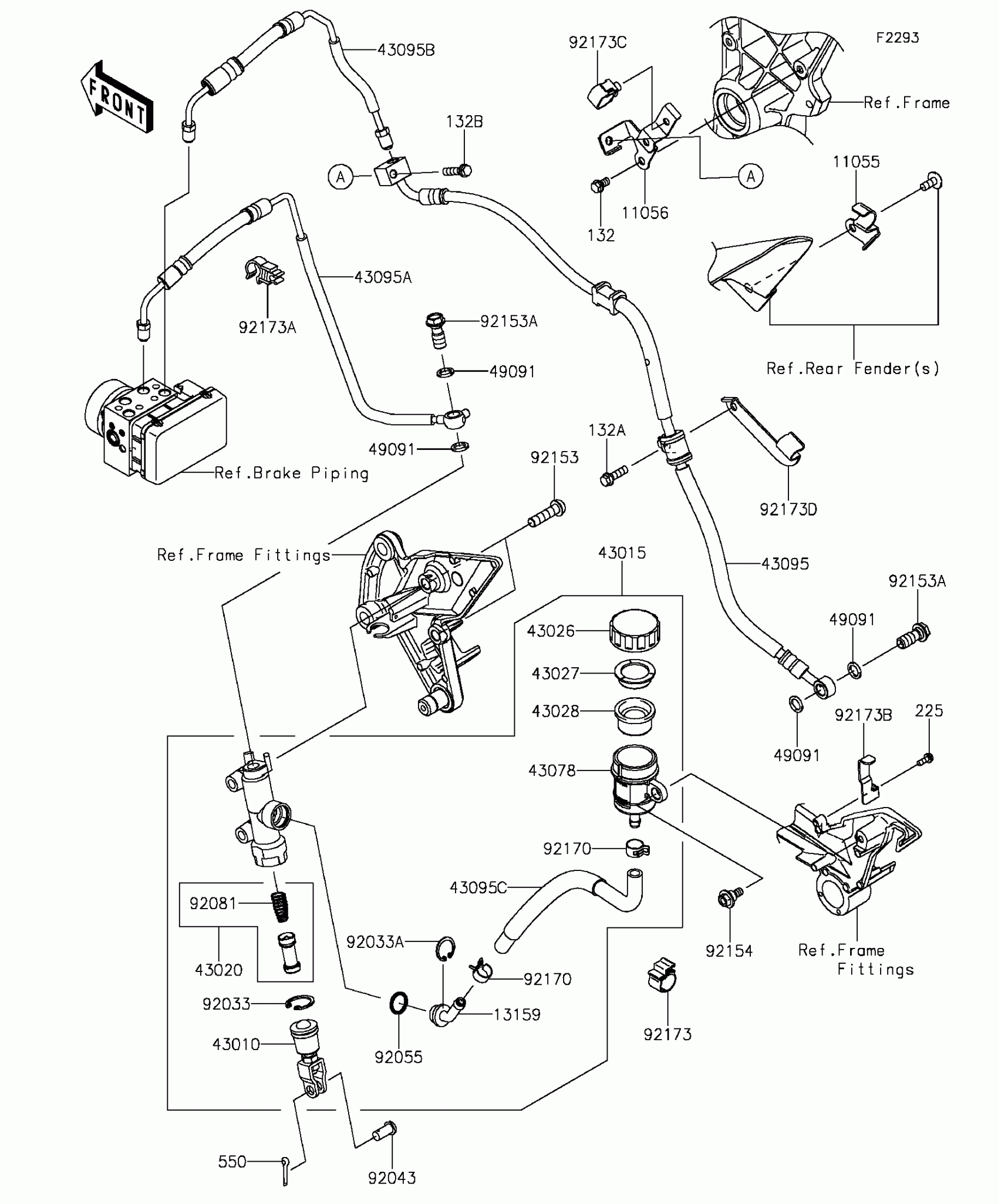

Kawasaki Z1000 ABS Rear Master Cylinder Diagram

#

Description
Price

11055

BRACKET

11055-1785

$8.08

11056

BRACKET

11056-3887

$7.82

13159

CONNECTOR

13159-0008

$11.02

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

132A

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.49

132B

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

$2.94

43010

ROD-ASSY-BRAKE

43010-1062

$51.24

43015

CYLINDER-ASSY-MASTER,RR

43015-0596

$410.95

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43078

RESERVOIR

43078-0060

$32.45

43095

HOSE-BRAKE,RR

43095-0510

$173.52

43095A

HOSE-BRAKE,HU-RR M/C

43095-0785

$117.11

43095B

HOSE-BRAKE,HU-RR CALIPER

43095-0786

$99.49

43095C

HOSE-BRAKE,RR M/C

43095-0811

$32.04

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

550

PIN-COTTER,2.0X15

550AA2015

$1.12

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN,8X17

92043-0104

$3.90

92055

RING-O,14.8X2.4

92055-0741

$3.71

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92153

BOLT,SOCKET,8X30

92153-0393

$3.73

92153A

BOLT,OIL,L=23

92153-0627

$5.48

92154

BOLT,FLANGED,6X16

92154-0385

$3.99

92170

CLAMP,HOSE

92170-1091

$5.00

92173

CLAMP,CLIP

92173-0127

$15.62

92173A

CLAMP

92173-0170

$4.41

92173B

CLAMP

92173-0221

$7.31

92173C

CLAMP,HOLDER CLIP

92173-0868

$3.02

92173D

CLAMP

92173-1248

$5.69
