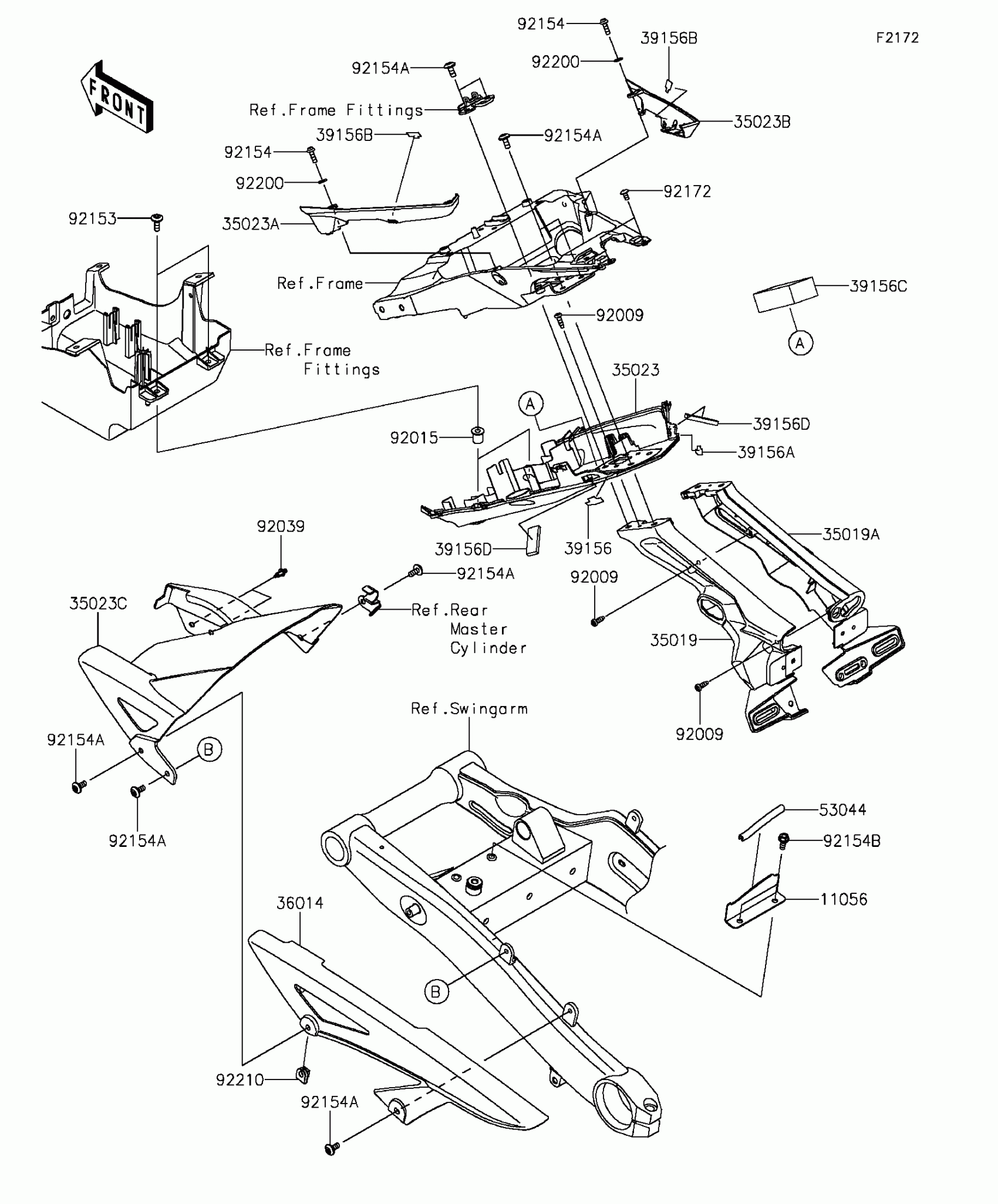

Kawasaki Z1000 ABS Rear Fender(s) Diagram
#
Description
Price
11056
BRACKET
11056-2656
$7.28
35019
FLAP,LH
35019-0580
$27.47
35019A
FLAP,RH
35019-0581
$27.47
35023
FENDER-REAR,CNT
35023-0378
$86.63
35023A
FENDER-REAR,LH
35023-0379
$10.98
35023B
FENDER-REAR,RH
35023-0380
$10.98
35023C
FENDER-REAR,INNER
35023-0381
$47.94
36014
CASE-CHAIN
36014-0029
$37.51
39156
PAD,RR FENDER,RR,LH
39156-1786
$2.13
39156A
PAD,RR FENDER,RR,RH
39156-1787
$2.13
39156B
PAD,RR FENDER LH&RH
39156-1788
$1.27
39156C
PAD,40X80X25
39156-1808
$1.84
39156D
PAD,RR FENDER,42X15X5
39156-1812
$1.27
53044
TRIM
53044-0018
$4.65
92009
SCREW,TAPPING,5X16
92009-1984
$2.58
92015
NUT
92015-1700
$8.58
92039
RIVET
92039-0060
$3.39
92153
BOLT,6X18
92153-0816
$2.15
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92154A
BOLT,SOCKET,6X14
92154-0745
$2.32
92154B
BOLT,FLANGED,6X16
92154-0899
$2.32
92172
SCREW,TAPPING,5X10
92172-0262
$1.34
92200
WASHER,NYLONE,5.3X11.5X0.5
92200-0006
$1.86
92210
NUT,6MM
92210-0277
$4.92
