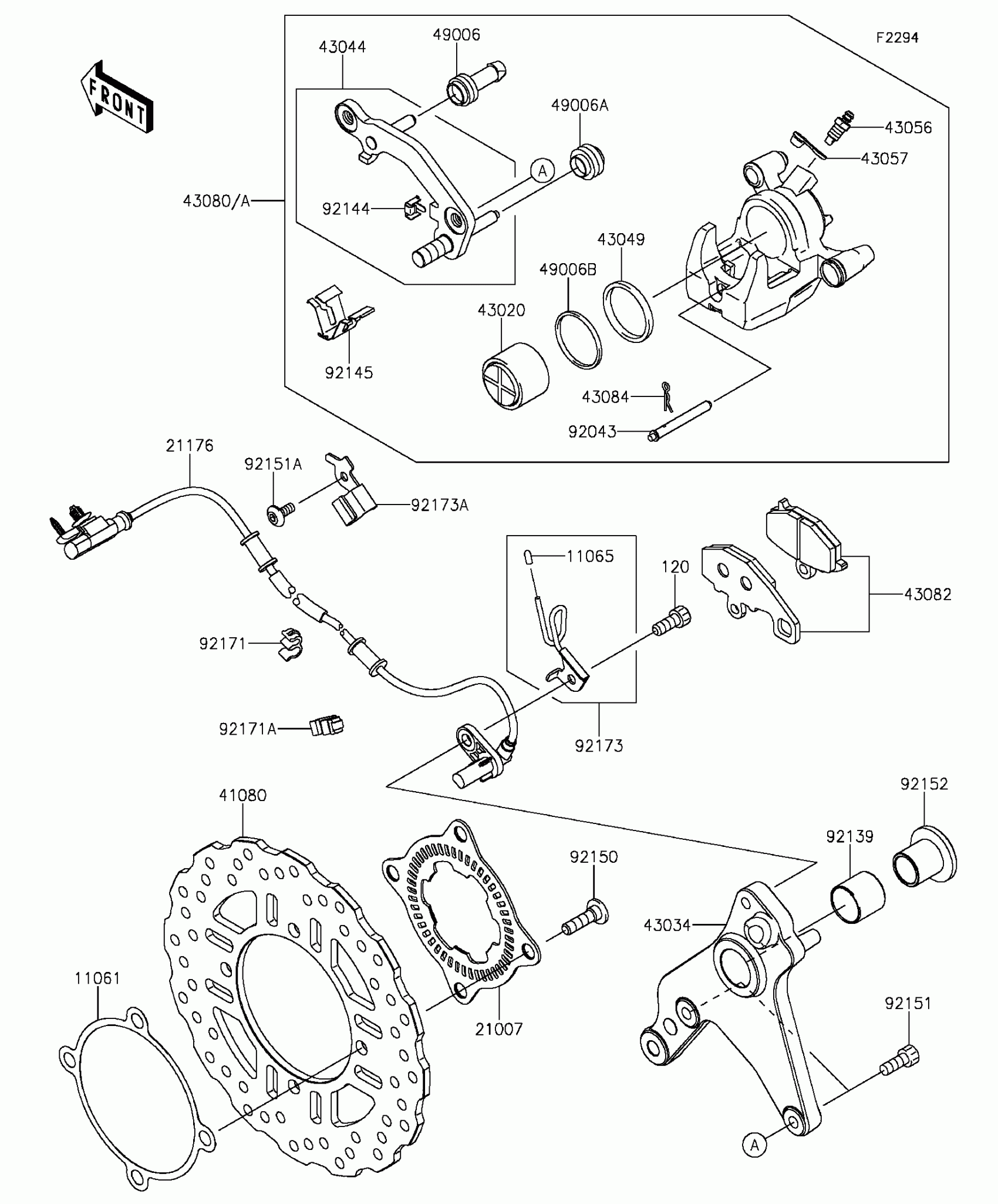

Find the part on the Rear Brake diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Z1000 ABS Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,DISC PLATE

11061-0204

1
Out of stock

11065

CAP

11065-0374

1
Out of stock

120

BOLT-SOCKET,8X20

120CB0820

1
Out of stock

21007

ROTOR,SENSOR,RR

21007-0141

1
Out of stock

21176

SENSOR,WHEEL SPEED,RR

21176-0774

1
Out of stock

41080

DISC,RR

41080-0089

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1119

1
Out of stock

43034

HOLDER-BRAKE,RR

43034-0098

1
Out of stock

43044

HOLDER-COMP-CALIPER,RR

43044-0074

1
Out of stock

43049

PACKING,PISTON SEAL

43049-1097

1
Out of stock

43056

BREATHER-BRAKE

43056-0007

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0141-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0119

1
Out of stock

43084

CLAMP,PAD

43084-003

1
Out of stock

49006

BOOT,CALIPER

49006-1054

1
Out of stock

49006A

BOOT,CALIPER

49006-1095

1
Out of stock

49006B

BOOT,PISTON SEAL

49006-1212

1
Out of stock

92043

PIN,PAD

92043-1489

1
Out of stock

92139

BUSHING,25X28X25

92139-0278

1
Out of stock

92144

SPRING,STOPPER

92144-1831

1
Out of stock

92145

SPRING

92145-0760

1
Out of stock

92150

BOLT,SOCKET,8X30

92150-1771

1
Out of stock

92151

BOLT,SOCKET,8X20

92151-1289

1
Out of stock

92151A

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92152

COLLAR,20X25X30

92152-1960

1
Out of stock

92171

CLAMP

92171-0921

1
Out of stock

92171A

CLAMP,BRAKE HOSE

92171-1819

1
Out of stock

92173

CLAMP

92173-1099

1
Out of stock

92173A

CLAMP,RR WHEEL SPEED SENSOR

92173-1144

1
Out of stock
