2016 Kawasaki Z1000 ABS Front Master Cylinder Diagram

← All diagrams

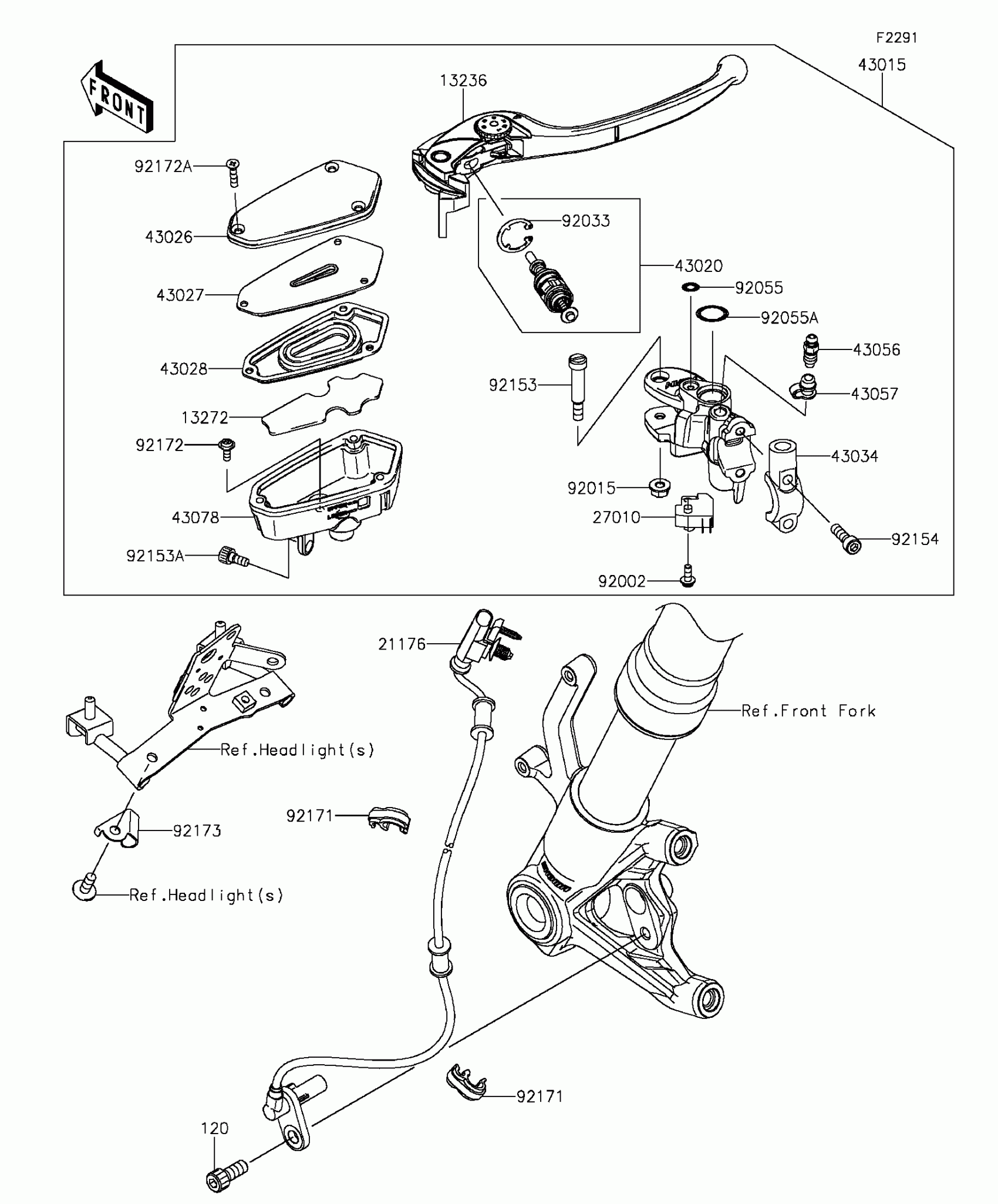

Find the part on the Front Master Cylinder diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Z1000 ABS Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X20

120CB0820

1
Out of stock

13236

LEVER-COMP

13236-0729

1
Out of stock

13272

PLATE

13272-1719

1
Out of stock

21176

SENSOR,SPEED

21176-0758

1
Out of stock

27010

SWITCH,BRAKE

27010-0025

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0590

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0020

1
Out of stock

43026

CAP-BRAKE

43026-0011

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-0003

1
Out of stock

43028

DIAPHRAGM

43028-0008

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0057

1
Out of stock

43056

BREATHER-BRAKE

43056-1056

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43078

RESERVOIR

43078-0569

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92033

RING-SNAP

92033-0034

1
Out of stock

92055

RING-O

92055-0137

1
Out of stock

92055A

RING-O,14.8X2.4

92055-0741

1
Out of stock

92153

BOLT,LEVER

92153-0868

1
Out of stock

92153A

BOLT,SOCKET,6X12

92153-1853

1
Out of stock

92154

BOLT,SOCKET,6X22

92154-1271

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-1819

1
Out of stock

92172

SCREW

92172-0319

1
Out of stock

92172A

SCREW,4X20

92172-0855

1
Out of stock

92173

CLAMP,SPEED SENSOR

92173-1112

1
Out of stock
