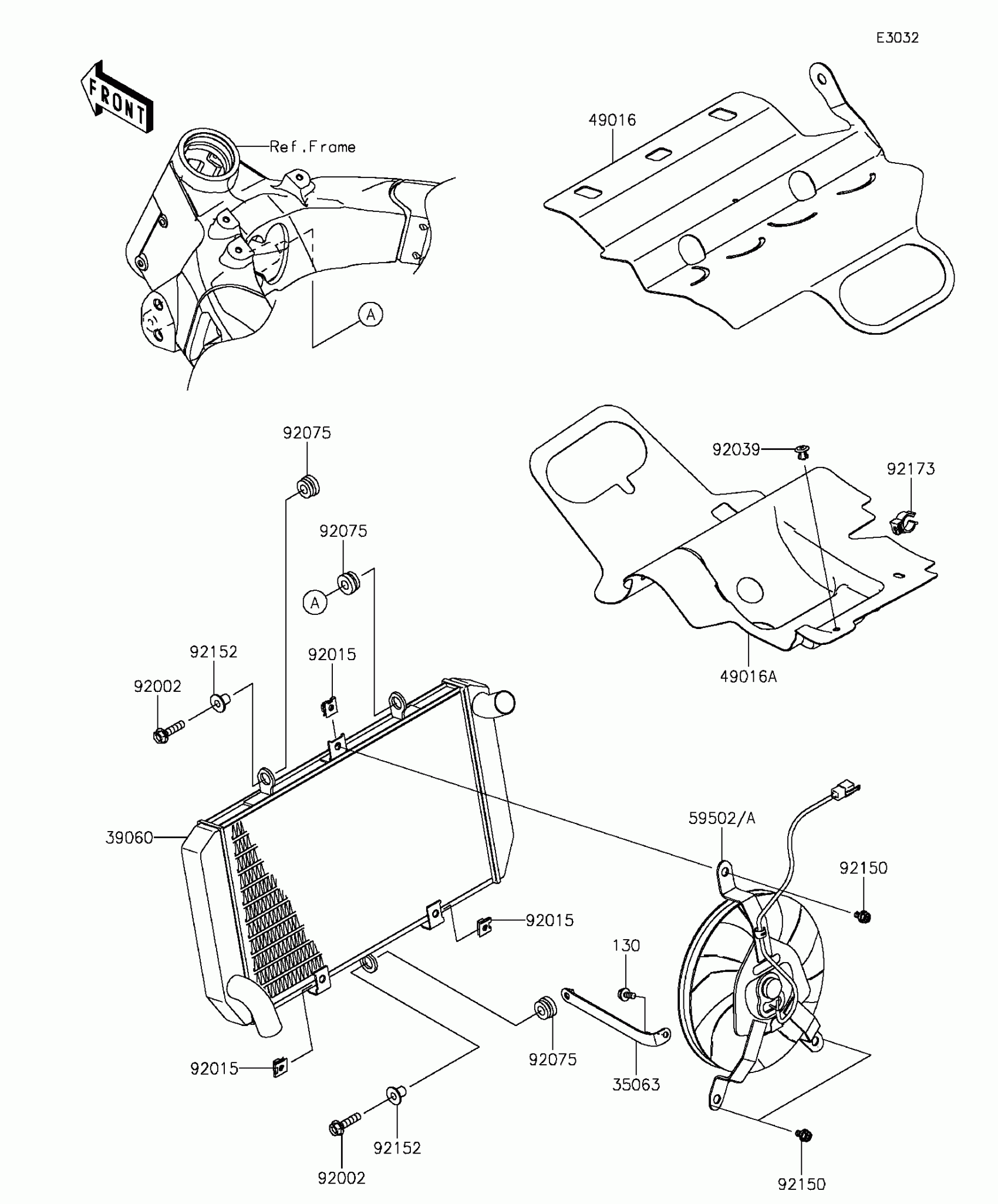

Kawasaki Z1000 ABS Radiator Diagram

Description

Price

130

BOLT-FLANGED,6X16

130CC0616

$1.94

35063

STAY

35063-0761

$6.77

39060

RADIATOR

39060-0072

$828.15

49016

COVER-SEAL

49016-0609

$56.97

49016A

COVER-SEAL

49016-0612

$43.59

59502A

FAN-ASSY

59502-0577

$792.87

92002

BOLT,FLANGED,6X25

92002-1086

$5.52

92015

NUT

92015-1487

$4.80

92039

RIVET

92039-0730

$2.49

92075

DAMPER,RUBBER

92075-1123

$5.00

92150

BOLT,6X12

92150-1186

$3.37

92152

COLLAR

92152-0667

$7.37

92173

CLAMP

92173-1240

$2.49
