Description

Price

11056

BRACKET,POSITION LAMP,FRM

11056-2522

$8.72

11056A

BRACKET,POSITION LAMP,LAMP

11056-2686

$3.63

120

BOLT-SOCKET,5X16

120CA0516

$2.15

23001

LAMP-ASSY-HEAD

23001-0034

$1,387.73

23016

LAMP-ASSY,POSITION

23016-0570

$109.77

23062

BRACKET-COMP,H.LAMP,UPP

23062-0789

$54.02

23062A

BRACKET-COMP,H.LAMP,LWR

23062-0790

$89.97

39156

PAD,POSITION LAMP

39156-1799

$1.84

92015

NUT,WELL,5MM

92015-1757

$7.29

92075

DAMPER

92075-161

$4.69

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR,5.2X7.5X8.2

92152-1880

$4.92

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92160

DAMPER

92160-1613

$3.74

92161

DAMPER

92161-0054

$4.67

92161A

DAMPER,ECU

92161-1561

$15.48

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92172A

SCREW,TAPPING,5X14

92172-0265

$1.34

92172B

SCREW,TAPPING+PW,5X14

92172-0477

$7.43

92200

WASHER

92200-0288

$1.34

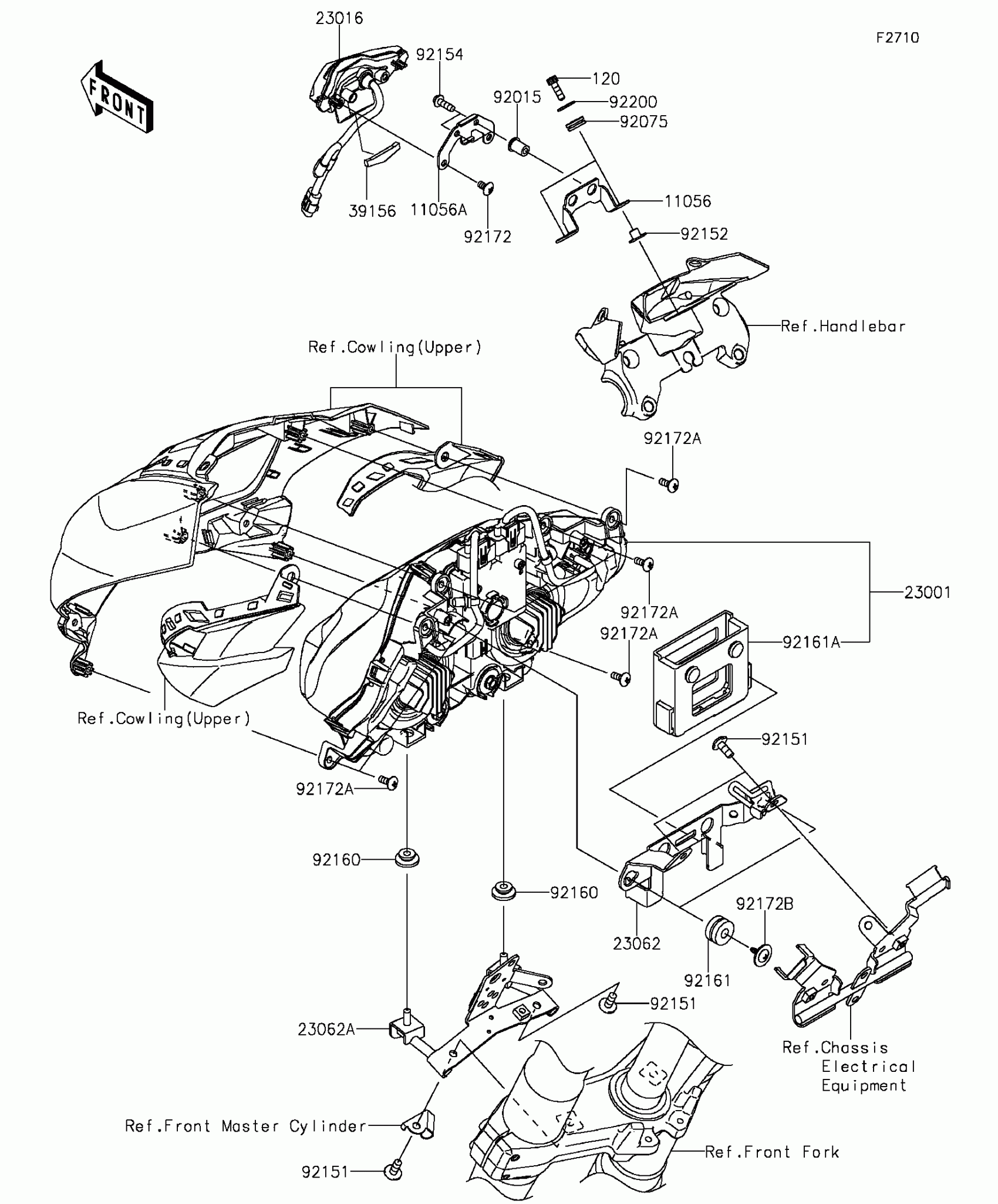

Kawasaki Z1000 ABS Headlight(s) Diagram

BRACKET,POSITION LAMP,FRM

BRACKET,POSITION LAMP,LAMP

BOLT-SOCKET,5X16

LAMP-ASSY-HEAD

LAMP-ASSY,POSITION

BRACKET-COMP,H.LAMP,UPP

BRACKET-COMP,H.LAMP,LWR

PAD,POSITION LAMP

NUT,WELL,5MM

DAMPER

BOLT,SOCKET,6X14

COLLAR,5.2X7.5X8.2

BOLT,SOCKET,5X16

DAMPER

DAMPER

DAMPER,ECU

SCREW,TAPPING,5X10

SCREW,TAPPING,5X14

SCREW,TAPPING+PW,5X14

WASHER
