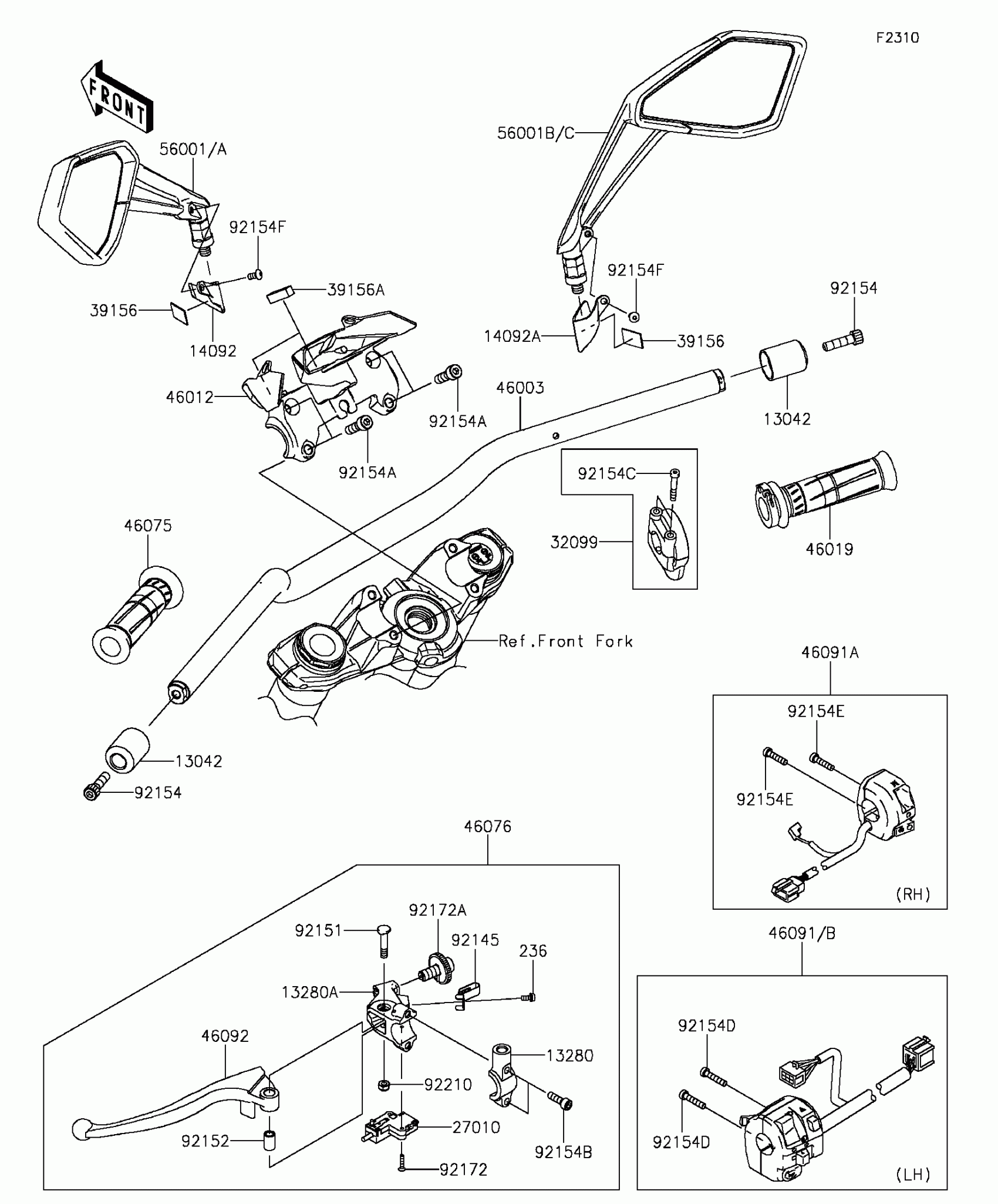

Kawasaki Z1000 ABS Handlebar Diagram
#
Description
Price
13042
WEIGHT,HANDLE
13042-5001
$51.69
13280
HOLDER,CLUTCH LEVER
13280-0772
$29.60
13280A
HOLDER,CLUTCH LEVER
13280-1160
$47.20
14092
COVER,MIRROR STAY,LH
14092-1156
$3.91
14092A
COVER,MIRROR STAY,RH
14092-1157
$3.91
236
SCREW-PAN-WSP-CROS,4X10
236AB0410
$1.52
27010
SWITCH,CLUTCH,BLACK
27010-1094
$28.59
32099
CASE,THROTTLE
32099-0735
$47.99
39156
PAD,15X25X1
39156-1747
$1.02
39156A
PAD,7.5X30X8
39156-1810
$1.84
46003
HANDLE,FAT BAR
46003-0632
$318.58
46012
HOLDER-HANDLE,F.S.BLACK
46012-0347-18R
$141.86
46019
GRIP-ASSY,THROTTLE
46019-0020
$42.73
46075
GRIP,LH
46075-0068
$18.92
46076
LEVER-ASSY-GRIP,CLUTCH
46076-0089
$118.42
46091A
HOUSING-ASSY-CONTROL,RH
46091-0279
$149.35
46091B
HOUSING-ASSY-CONTROL,LH
46091-0330
$154.41
46092
LEVER-GRIP,CLUTCH
46092-0006
$18.69
56001A
MIRROR-ASSY,LH,S.BLACK
56001-0291-46V
$133.84
56001C
MIRROR-ASSY,RH,S.BLACK
56001-0292-46V
$133.84
92145
SPRING
92145-1286
$5.95
92151
BOLT
92151-1523
$7.45
92152
COLLAR
92152-0103
$19.00
92154
BOLT,SOCKET,8X30
92154-0502
$3.74
92154A
BOLT,SOCKET,8X25
92154-1236
$3.63
92154B
BOLT,SOCKET,6X20
92154-1269
$3.29
92154C
BOLT,SOCKET,5X35
92154-1272
$5.48
92154D
BOLT,SOCKET,5X25
92154-1273
$3.05
92154E
BOLT,SOCKET,5X22
92154-1279
$3.16
92154F
BOLT,SOCKET,5X10
92154-1292
$1.48
92172
SCREW,3X16
92172-0183
$2.15
92172A
SCREW,ADJUST NUT
92172-1060
$39.14
92210
NUT,LOCK,6MM
92210-0006
$2.46
