2016 Kawasaki Z1000 ABS Fuel Tank Diagram

← All diagrams

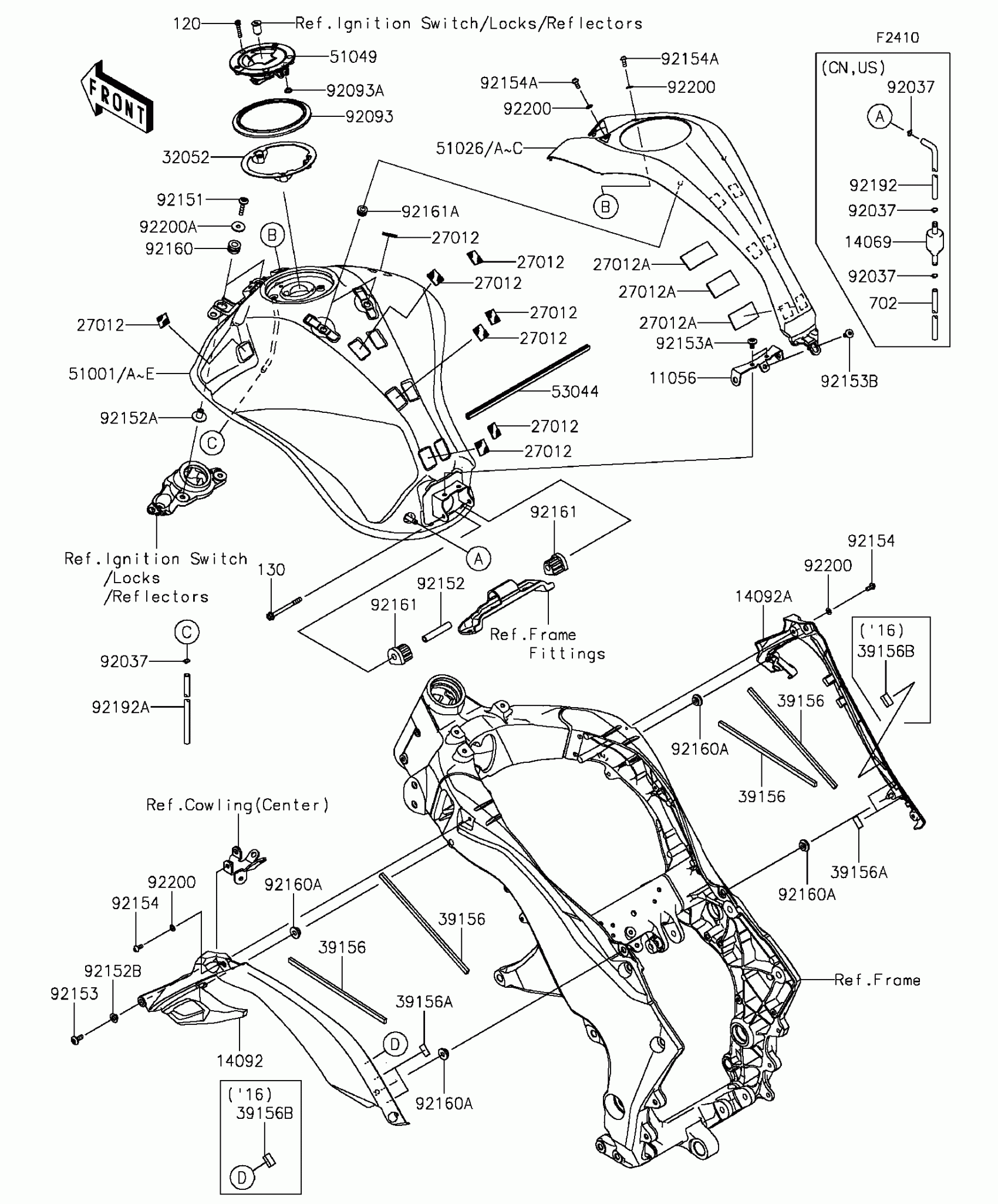

Find the part on the Fuel Tank diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Z1000 ABS Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-3839

1
Out of stock

14092

COVER,KNEE GRIP,LH

14092-1128

1
Out of stock

14092A

COVER,KNEE GRIP,RH

14092-1129

1
Out of stock

27012

HOOK

27012-0171

1
Out of stock

27012A

HOOK,FASTENER,28X57

27012-0764

1
Out of stock

32052

BRACKET-TANK

32052-0744

1
Out of stock

39156

PAD

39156-0563

1
Out of stock

39156A

PAD,15X20X0.2

39156-1784

1
Out of stock

39156B

PAD,20X8X10

39156-1968

1
Out of stock

51001C

TANK-COMP-FUEL,M.M.C.GRAY

51001-0791-51B

1
Out of stock

51001D

TANK-COMP-FUEL,M.M.G.GRAY

51001-0791-53U

1
Out of stock

51026

COVER TANK,G.B.GREEN

51026-0010-40R

1
Out of stock

51026B

COVER TANK,C.C.RED

51026-0010-53R

1
Out of stock

51049

CAP-TANK,FUEL

51049-0039

1
Out of stock

53044

TRIM

53044-1296

1
Out of stock

92093

SEAL,TANK CAP

92093-0604

1
Out of stock

92093A

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92151

BOLT,SOCKET,6X30

92151-1605

1
Out of stock

92152

COLLAR,6.8X10X60

92152-1182

1
Out of stock

92152A

COLLAR

92152-1603

1
Out of stock

92152B

COLLAR,6.5X10X5.3

92152-1863

1
Out of stock

92153

BOLT,SOCKET,6X16

92153-1526

1
Out of stock

92153A

BOLT,SOCKET,6X12

92153-1948

1
Out of stock

92153B

BOLT,SOCKET,6MM

92153-1956

1
Out of stock

120

BOLT-SOCKET,5X25

120CC0525

1
Out of stock

130

BOLT-FLANGED,6X70

130BB0670

1
Out of stock

92154

BOLT,SOCKET,5X12

92154-0917

1
Out of stock

92154A

BOLT,SOCKET,5X12

92154-1421

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92160A

DAMPER

92160-1613

1
Out of stock

92161

DAMPER,FUEL TANK,RR

92161-1330

1
Out of stock

92161A

DAMPER,8.2X16X8.3

92161-1584

1
Out of stock

92192A

TUBE,6X9X926(30)

92192-1024

1
Out of stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92200A

WASHER,6.5X22X1.6

92200-1087

1
Out of stock
