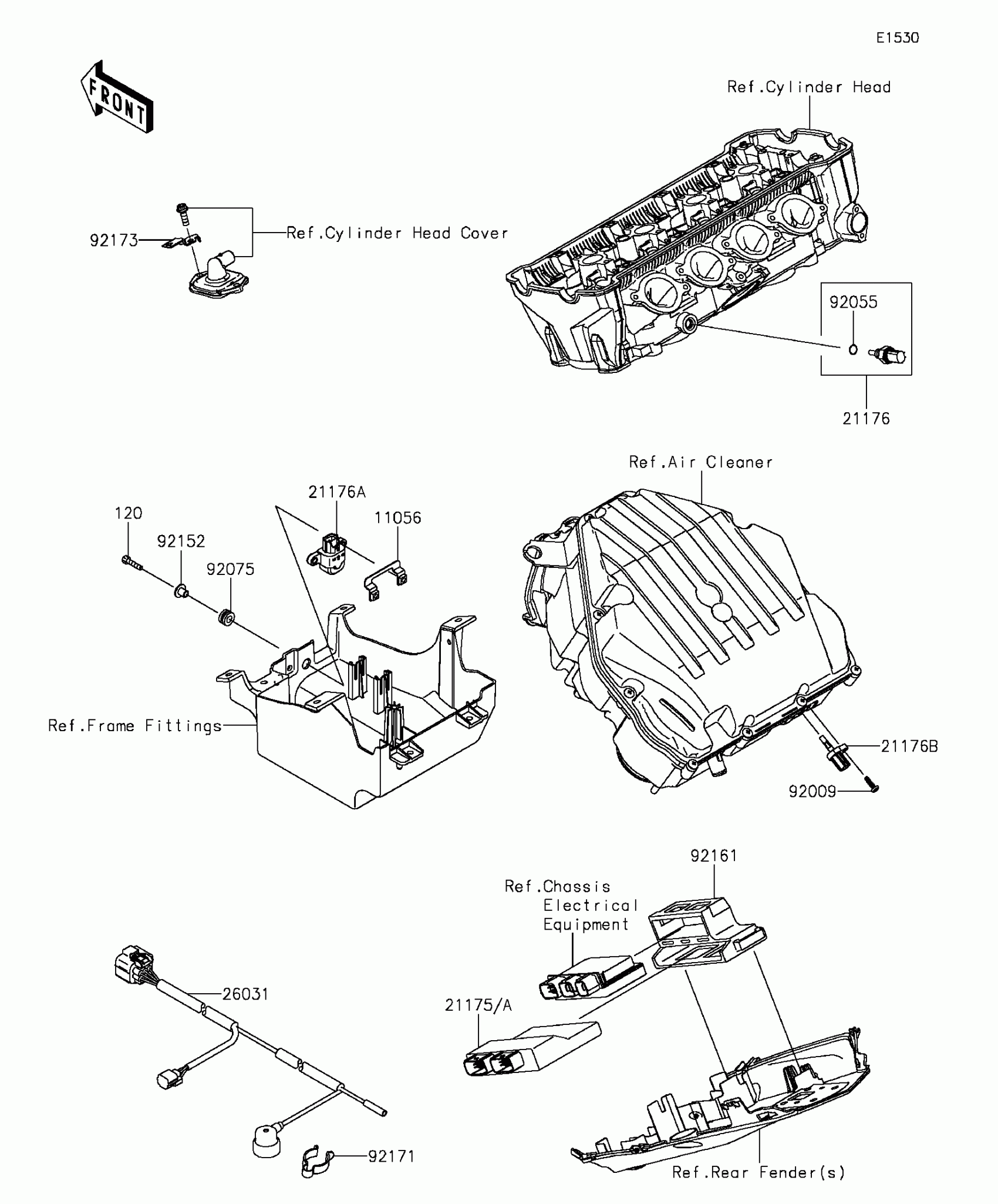

Kawasaki Z1000 ABS Fuel Injection Diagram

Description

Price

11056

BRACKET

11056-0124

$7.15

120

BOLT-SOCKET,5X25

120CA0525

$3.86

21175A

CONTROL UNIT-ELECTRONIC

21175-0864

$1,278.93

21176

SENSOR,WATER TEMP

21176-0009

$61.96

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$77.23

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

26031

HARNESS,SUB

26031-1674

$62.27

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92055

RING-O,9.5X1.9

92055-0016

$6.77

92075

DAMPER

92075-1912

$5.07

92152

COLLAR

92152-0134

$7.54

92161

DAMPER

92161-0356

$23.93

92171

CLAMP,CABLE

92171-1283

$10.51

92173

CLAMP

92173-0126

$4.66
