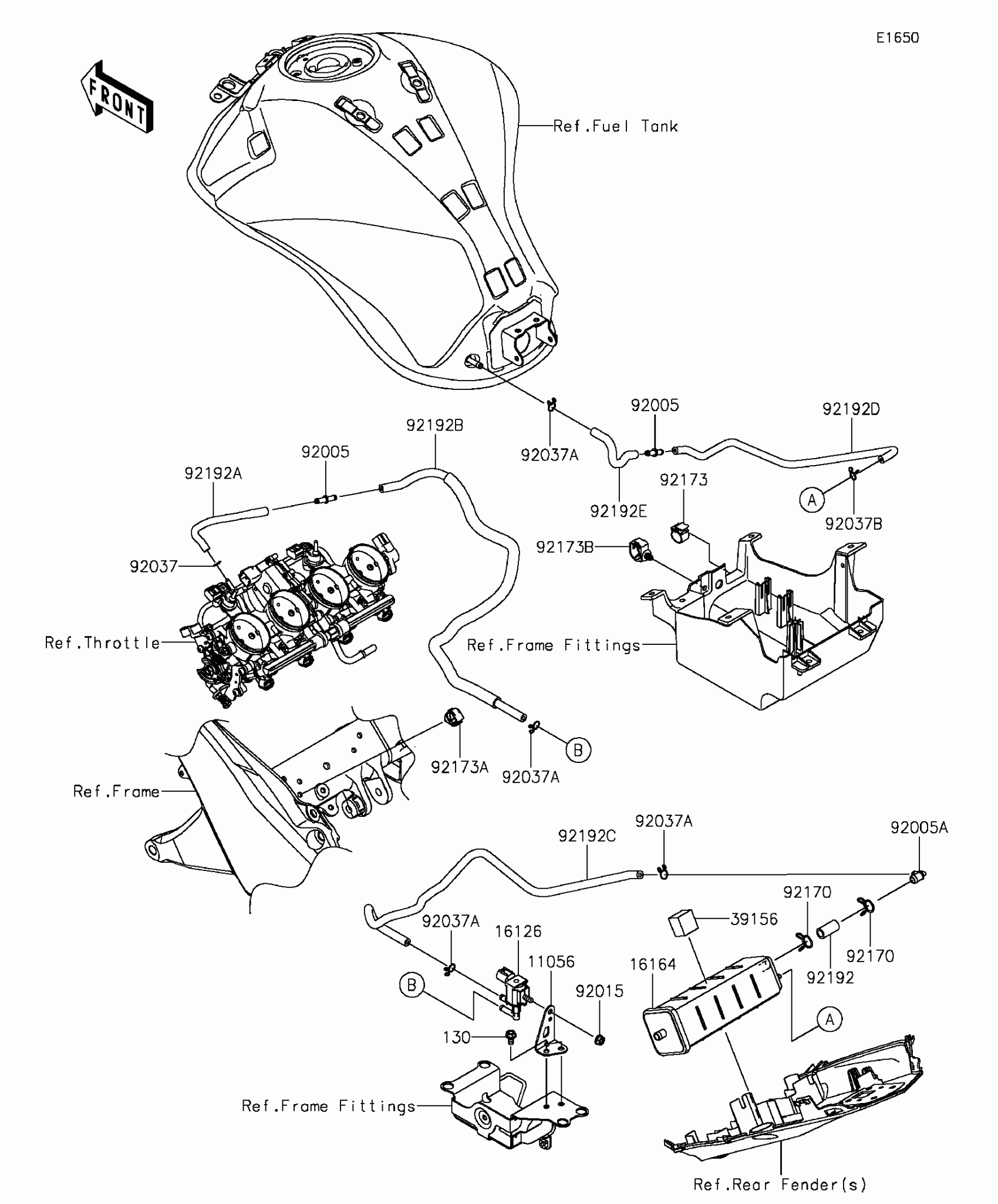

Kawasaki Z1000 ABS Fuel Evaporative System(CA) Diagram

Description

Price

11056

BRACKET,VALVE

11056-2480

$8.30

130

BOLT-FLANGED,6X12

130BA0612

$1.72

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0009

$137.47

39156

PAD,CANISTER

39156-1774

$1.58

92005

FITTING

92005-0721

$9.09

92005A

FITTING

92005-0753

$5.01

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP

92037-1712

$5.00

92170

CLAMP

92170-1695

$2.78

92173

CLAMP,CLIP

92173-0127

$15.62

92173A

CLAMP,12MM DIA.

92173-0736

$5.05

92173B

CLAMP

92173-0861

$3.02

92192

TUBE,9X14.4X30

92192-1148

$18.32

92192A

TUBE,THROTTLE-FITTING(VALVE)

92192-1279

$27.47

92192B

TUBE,FITTING(THROTTLE)-VALVE

92192-1288

$74.17

92192C

TUBE,VALVE-CANISTER

92192-1289

$85.82

92192D

TUBE,CANISTER-FITTING(TANK)

92192-1378

$78.12

92192E

TUBE,FITTING(CANISTER)-TANK

92192-1379

$41.81
