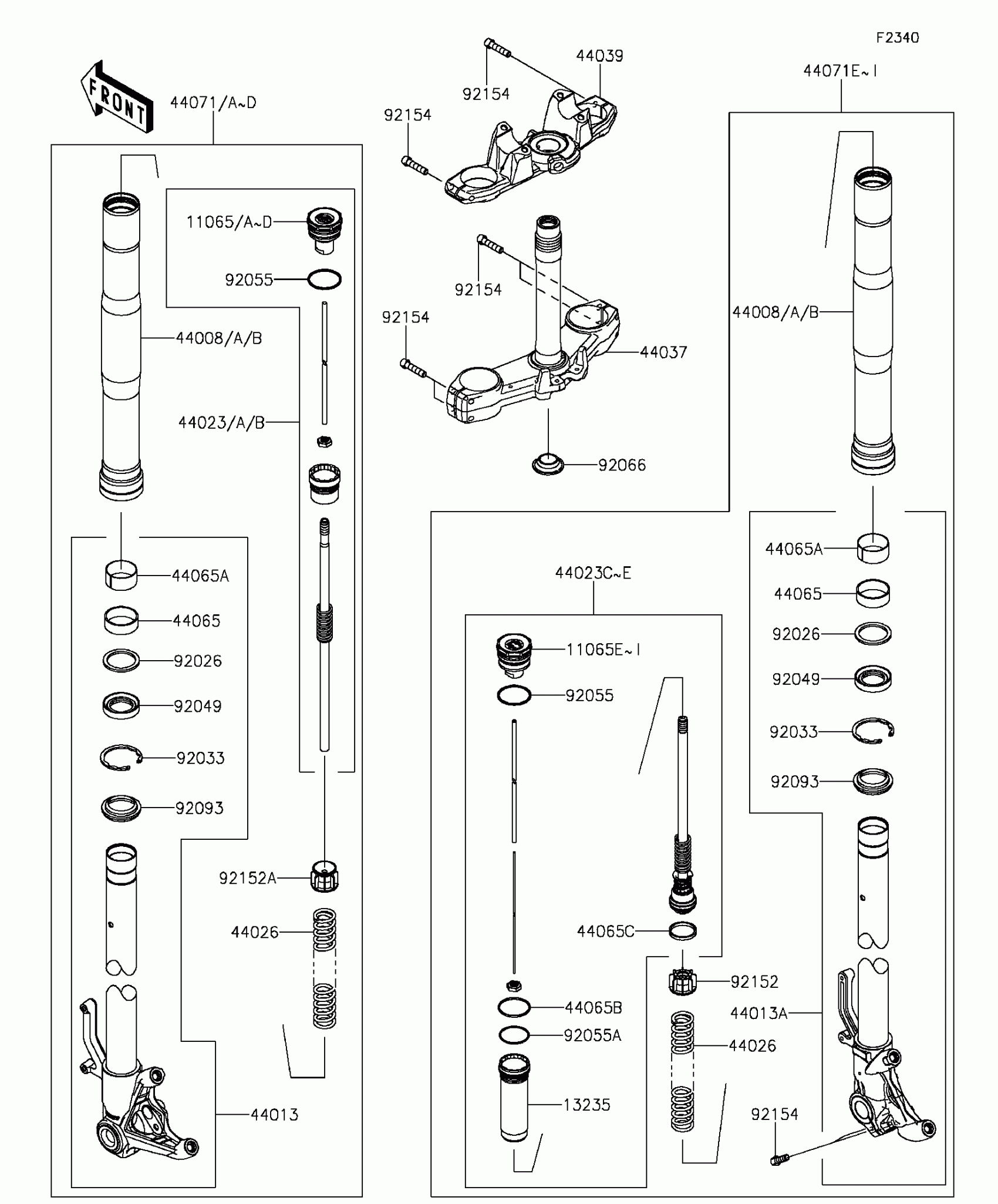

Kawasaki Z1000 ABS Front Fork Diagram
#
11065B
CAP,LH,G.B.GREEN
11065-0947-50Y
$129.70
11065C
CAP,LH,D.RED
11065-0947-56N
Unavailable
11065G
CAP,RH,G.B.GREEN
11065-0948-50Y
$129.70
11065H
CAP,RH,D.RED
11065-0948-56N
Unavailable
13235
GUIDE-COMP
13235-0009
$91.70
44008A
PIPE-FORK OUTER,A.BLACK
44008-0070-499
$388.50
44008B
PIPE-FORK OUTER,D.RED
44008-0070-56N
Unavailable
44013
PIPE-FORK INNER,LH,F.S.BLACK
44013-0221-18R
$589.80
44013A
PIPE-FORK INNER,RH,F.S.BLACK
44013-0222-18R
$589.80
44023B
CYLINDER-SET-FORK,LH,K.GOLD
44023-0115-828
$341.40
44023E
CYLINDER-SET-FORK,RH,K.GOLD
44023-0116-828
$600.34
44026
SPRING-FRONT FORK
44026-0180
$71.93
44037
HOLDER-FORK UNDER,F.S.BLACK
44037-0141-18R
$733.34
44039
HOLDER-FORK UPPER,F.S.BLACK
44039-0136-18R
$321.19
44065
BUSHING-FRONT FORK,GUIDE
44065-0030
$20.55
44065A
BUSHING-FRONT FORK,SLIDE
44065-0031
$20.55
44065B
BUSHING-FRONT FORK
44065-0033
$7.53
44065C
BUSHING-FRONT FORK
44065-0047
$1.27
44071C
DAMPER-ASSY,LH,D.RED
44071-0902-56T
Unavailable
44071D
DAMPER-ASSY,LH,BLACK
44071-0902-56W
$1,256.89
44071H
DAMPER-ASSY,RH,D.RED
44071-0903-56T
Unavailable
44071I
DAMPER-ASSY,RH,BLACK
44071-0903-56W
$1,302.81
92026
SPACER,FORK OUTER
92026-1276
$9.51
92033
RING-SNAP
92033-0729
$7.78
92049
SEAL-OIL
92049-0125
$26.40
92055
RING-O
92055-0142
$3.90
92055A
RING-O
92055-0174
$3.71
92066
PLUG
92066-0032
$11.66
92093
SEAL,DUST
92093-0035
$25.59
92152
COLLAR
92152-0757
$16.39
92152A
COLLAR
92152-1888
$17.14
92154
BOLT
92154-1293
$6.58
