Description

Price

11061

GASKET,DISC PLATE

11061-0029

$18.20

21007

ROTOR,FR WHEEL

21007-0166

$33.54

41080

DISC,FR,HOUSING BLK+DISC SIL

41080-0602-5C

$329.21

43048

PISTON-CALIPER

43048-0023

$69.13

43048A

PISTON-CALIPER

43048-0024

$69.13

43049

PACKING,PISTON

43049-0012

$13.43

43049A

PACKING,PISTON

43049-0013

$13.43

43049B

PACKING

43049-1068

$9.82

43049C

PACKING,WIPER

43049-1107

$11.06

43056

BREATHER-BRAKE

43056-0007

$23.79

43057

CAP-BREATHER

43057-003

$2.45

43080D

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0143-DJ

$470.14

43080E

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0144-DJ

$470.14

43082

PAD-ASSY-BRAKE

43082-0147

$92.75

92043

PIN,PAD

92043-1709

$8.36

92145

SPRING,PAD

92145-0580

$18.84

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92152

COLLAR,DOWEL PIN

92152-0679

$7.60

92153

BOLT,FLANGED,10X73

92153-1890

$10.05

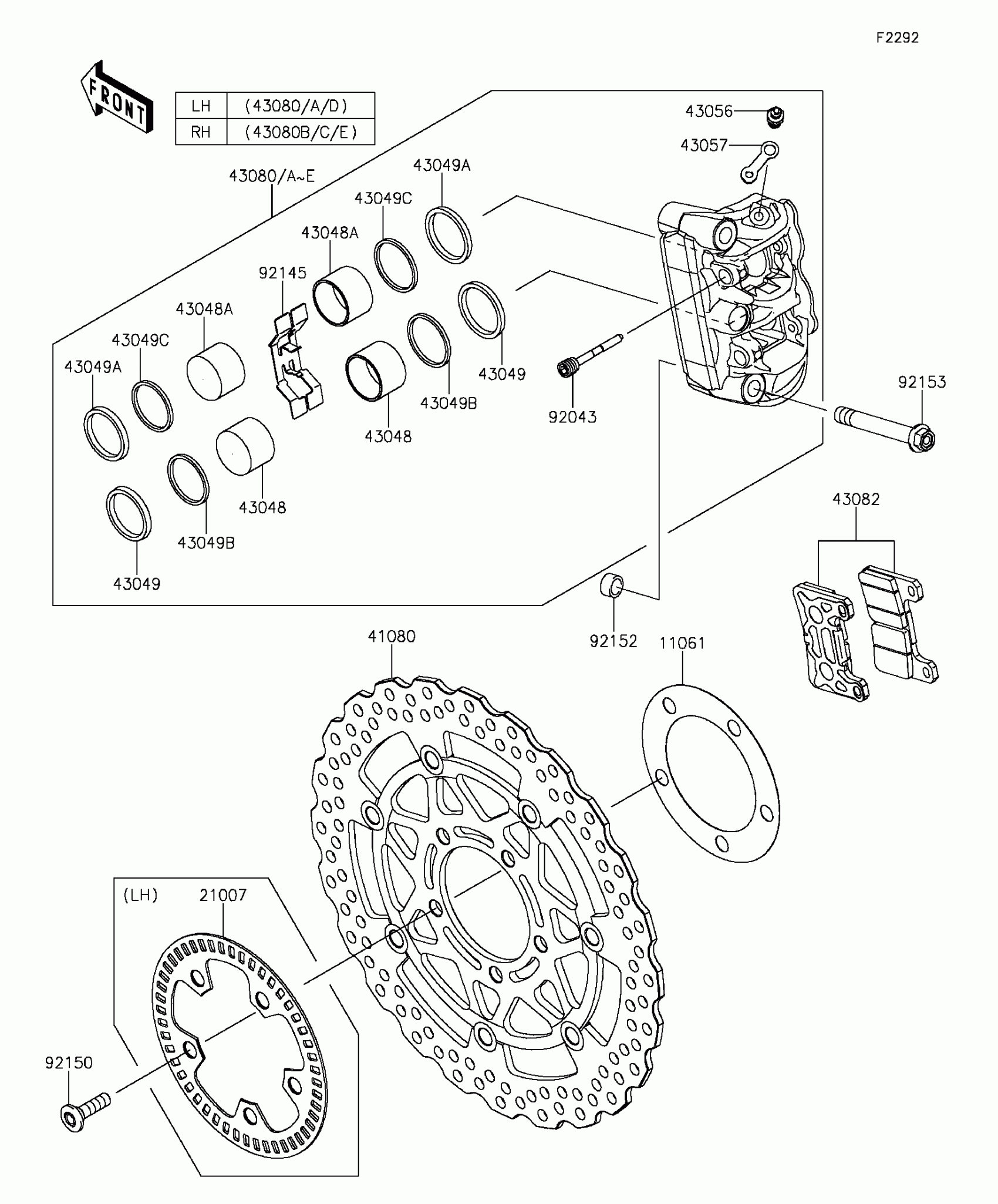

Kawasaki Z1000 ABS Front Brake Diagram

GASKET,DISC PLATE

ROTOR,FR WHEEL

DISC,FR,HOUSING BLK+DISC SIL

PISTON-CALIPER

PISTON-CALIPER

PACKING,PISTON

PACKING,PISTON

PACKING

PACKING,WIPER

BREATHER-BRAKE

CAP-BREATHER

CALIPER-SUB-ASSY,FR,LH,BLACK

CALIPER-SUB-ASSY,FR,RH,BLACK

PAD-ASSY-BRAKE

PIN,PAD

SPRING,PAD

BOLT,SOCKET,8X30

COLLAR,DOWEL PIN

BOLT,FLANGED,10X73
