Description

Price

13087

HUB-CLUTCH

13087-0051

$149.09

13088

PLATE-FRICTION

13088-0049

$20.79

13088A

PLATE-FRICTION

13088-0052

$20.79

13089

PLATE-CLUTCH,T=2.3

13089-0008

Unavailable

13089A

PLATE-CLUTCH,T=2.6

13089-0009

$12.86

13089B

PLATE-CLUTCH,T=2.9

13089-1093

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-0572

$517.62

13102

RELEASE-COMP-CLUTCH

13102-0038

$60.45

13187

PLATE-CLUTCH OPERATING

13187-0019

$47.40

46102

ROD

46102-0083

$55.62

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,20.3X36X2.3

92022-1116

$8.58

92022A

WASHER,20.3X36X3.7

92022-1868

$9.51

92025

SHIM,15.3X27.5X1.20

92025-1137

$8.58

92026

SPACER,25.5X47X2.5

92026-022

$9.91

92026A

SPACER

92026-1497

$11.28

92046

BEARING-NEEDLE,AXK1102

92046-1052

$14.47

92046A

BEARING-NEEDLE,K38X43X28.8X

92046-1263

$28.68

92139

BUSHING,25X38X29.05

92139-0067

$37.06

92144

SPRING,FRICTION PLATE

92144-1854

$8.90

92145

SPRING,RELEASE-COMP

92145-0325

$3.87

92145A

SPRING

92145-0736

$7.38

92154

BOLT,CLUTCH OPERATING

92154-0352

$5.95

92200

WASHER,FRICTION PLATE

92200-1260

$10.28

92200A

WASHER,12X18.5X0.5

92200-1487

$2.75

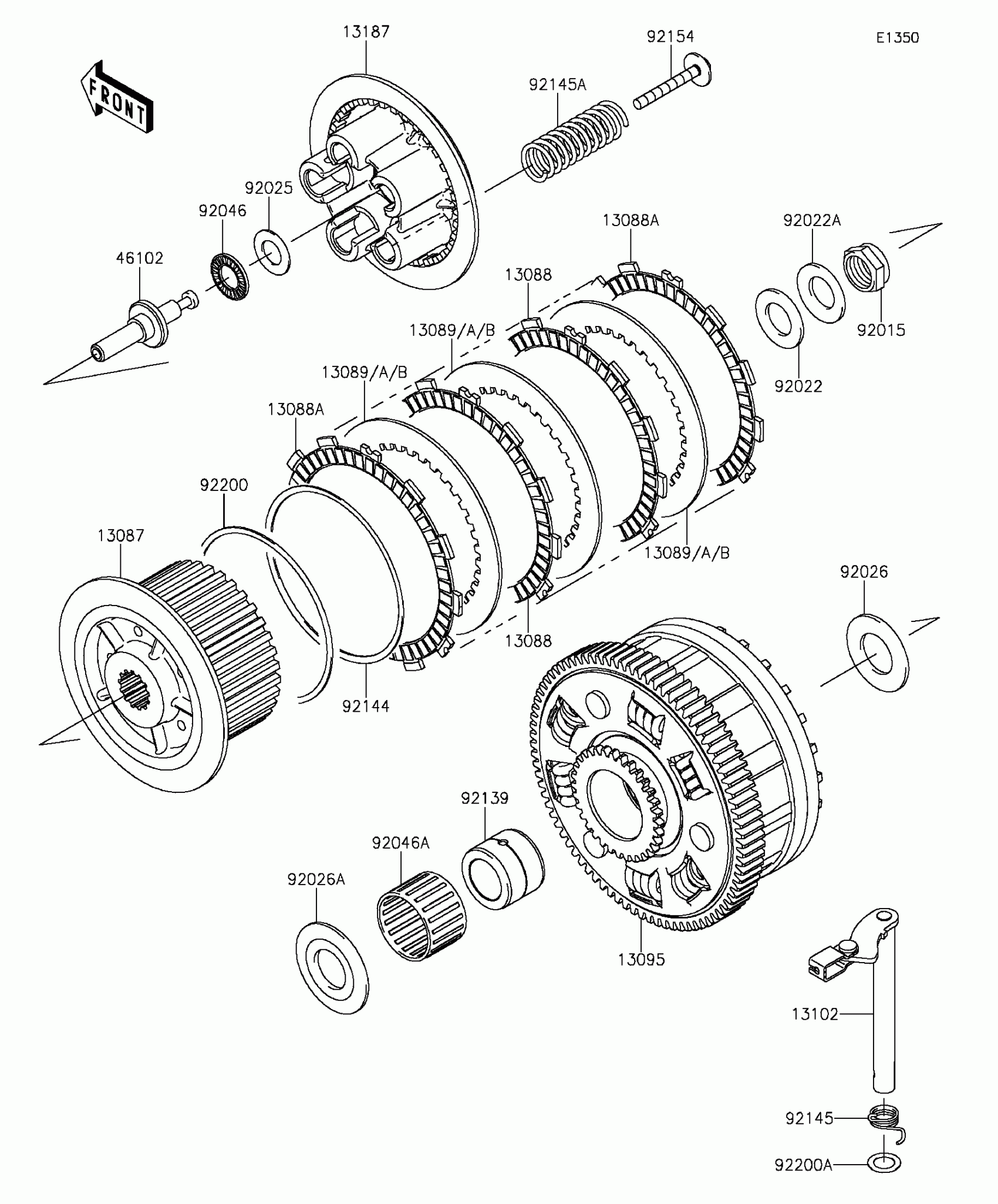

Kawasaki Z1000 ABS Clutch(GEF-GFF) Diagram

HUB-CLUTCH

PLATE-FRICTION

PLATE-FRICTION

PLATE-CLUTCH,T=2.3

PLATE-CLUTCH,T=2.6

PLATE-CLUTCH,T=2.9

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

PLATE-CLUTCH OPERATING

ROD

NUT,20MM

WASHER,20.3X36X2.3

WASHER,20.3X36X3.7

SHIM,15.3X27.5X1.20

SPACER,25.5X47X2.5

SPACER

BEARING-NEEDLE,AXK1102

BEARING-NEEDLE,K38X43X28.8X

BUSHING,25X38X29.05

SPRING,FRICTION PLATE

SPRING,RELEASE-COMP

SPRING

BOLT,CLUTCH OPERATING

WASHER,FRICTION PLATE

WASHER,12X18.5X0.5
